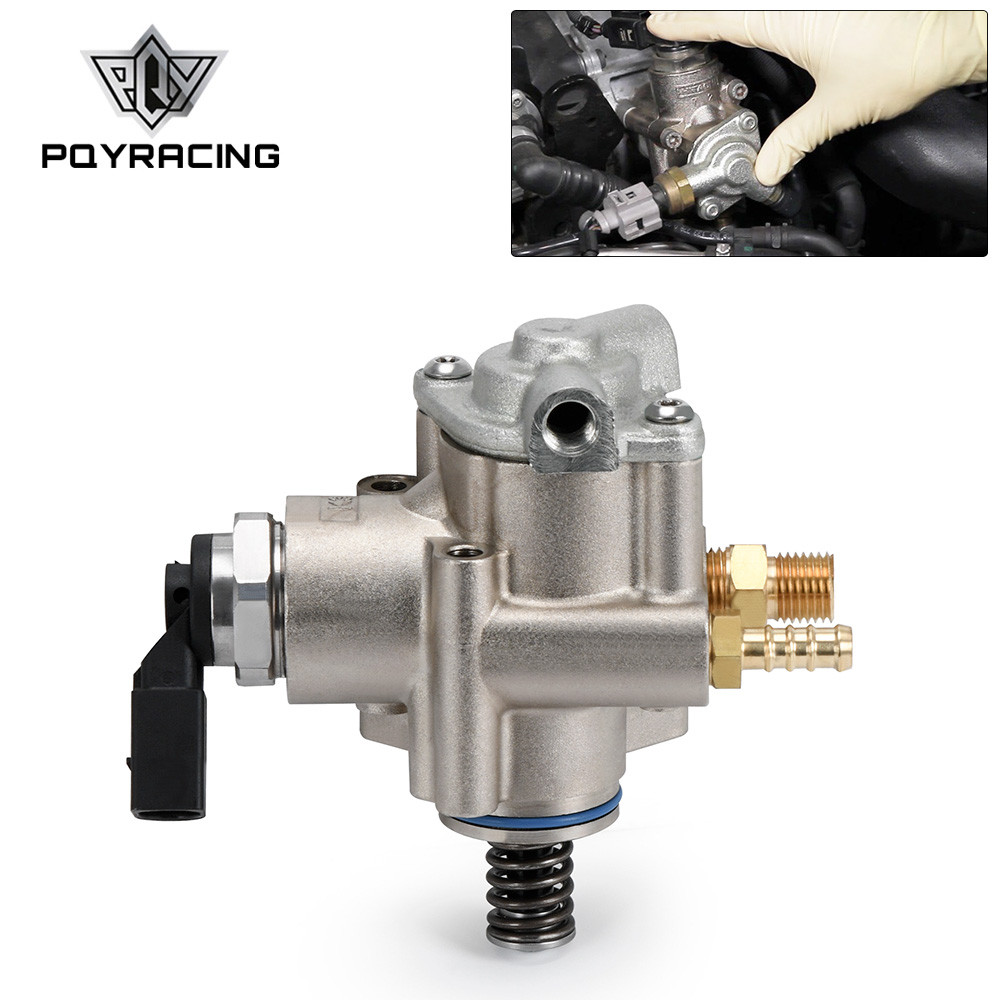

06F127025B High Pressure Fuel Pump For AUDI A1 A3 S3 A4 A6 For VW Jetta Seat Skoda 2.0T TFSI 06 l

06F127025B High Pressure Fuel Pump For AUDI A1 A3 S3 A4 A6 For VW Jetta Seat Skoda 2.0T TFSI 06F127025K 06F127025B 06F127025H
Application:For the 2.0T FSI Motors!For 2006-2008 Audi A3.For 2005.5-2009 Audi A4.For 2008 Audi TT.For 2009-2015 Audi TT Quattro.For 2007-2009 VW Eos.For 2006-2008 VW GTI (Not 2008.5 “TSI”).For 2012-2013 VW Golf R.For 2006-2008 VW Jetta (Not 2008.5 “TSI”).For 2006-2008 VW Passat (Not 2008.5 “TSI”).Note: Some early 2005-06 BPY models have a different outlet. VW has discontinued those pumps. This pump will work, but it requires the following additional parts.
If replacing original pump 06F127025B you will need:06D133400A Relief / Bleeder Valve.06F133335A Bleeder Valve Cap.06F127213B Reducer Fitting.
If replacing original pump 06F127025F you will need:06F127213B Fuel Line Fitting.
Vehicle compatibility charts are for REFERENCE ONLY. Please Check your vehicle with OEM below to match your needs. Also check product type and size.

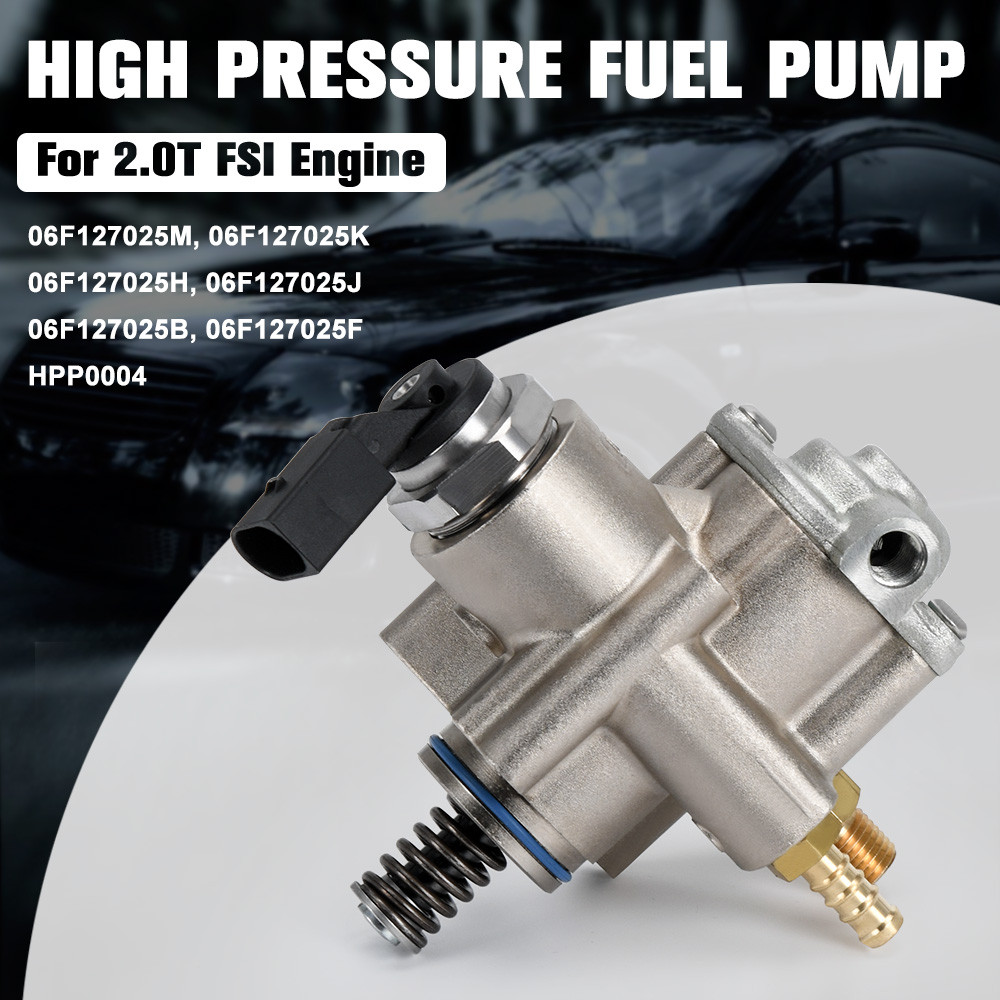

06F127025M, 06F127025K; 06F-127-025-M, 06F-127-025-K; 06F 127 025 M, 06F 127 025 K.Backwards compatible with earlier 06F127025H, 06F127025J.06F127025B, 06F127025F, 06F127025L, 06F127025.HPP0004, FI1504, HM10012, GDP601, M73122, 38650, 7060320, 70603204, 133064, 2503064, 03C127311.06D109309C, 06D109309F, 06D133400A, 06E127248, 06F127213B, 06F127213C, 06F127511B, 06F133335A.7110245100, N10624701, N90986501, WHT000285C, WHT005184, HFS853102, HFS853102A, HFS853108, HFS853108A, HFS853102B, HFS853A108.
Specification:100% quality assurance tested, more responsive, less expensive, easier to install.Enhance fuel volume delivery for exceptional operation and faster vehicle response.For direct injection, supercharged, and turbocharged applications in today’s vehicles.High strength aluminum pump housing for light weight and durability.Precision machined surfaces prevent fuel leakage/pressure drop while chemical resistant seals prevent premature wear from ethanol mixed fuels.
Material & Color:Material: made of high quality Aluminum.Color: as picture.
Package Included:1x High Pressure Fuel Pump. (100% Brand New Never Used Or Installed)

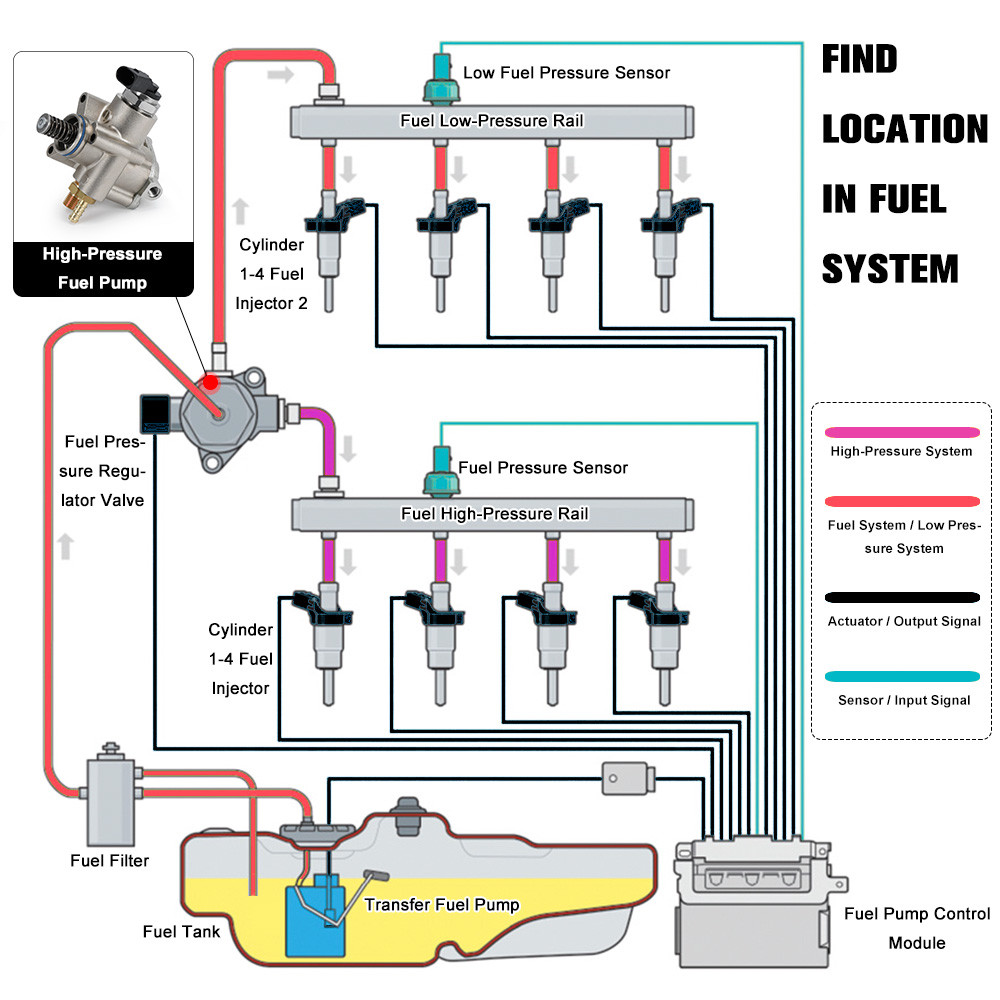

Common Causes of Fuel Pump Failure:HPFP is located on the driver’s side front of the engine at the top. The FSI pump is prone to failure and may cause running issues along with a check engine light.Failure of this part is often caused by the wearing out of the pump shaft by the camshaft follower and will cause insufficient fuel pressure to be supplied to the injectors.
Symptoms of Failure:
Poor Acceleration.Engine Sputtering at High Speed.Lack of Turn Over.P0087 Fuel Rail / System Pressure – Too Low.P1093 Fuel Trim 2, Bank 1 Malfunction.P2293 Fuel Pressure Regulator 2 Performance.

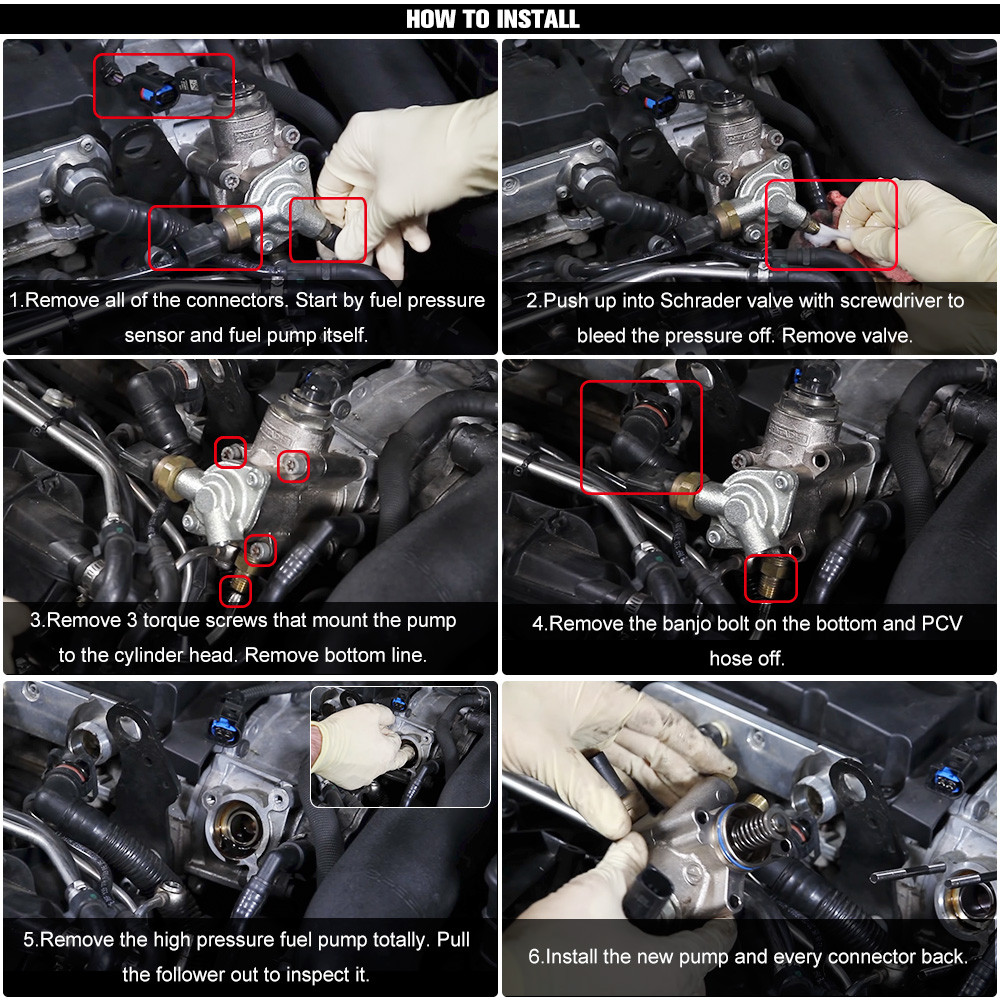

How to Install:1. Remove all of the connectors. Start by fuel pressure sensor and fuel pump itself.2. Push up into Schrader valve with screwdriver to bleed the pressure off. Remove valve.3. Remove 3 torque screws that mount the pump to the cylinder head. Remove bottom line.4. Remove the banjo bolt on
