100mm ~ 1000mm Water Fuel Level Gauge Sensor 0~190 240~33 ohm Marine Boat Yacht Car Oil Liquid Tank Fuel Sender Unit Sensors

100mm ~ 1000mm Water Fuel Level Gauge Sensor 0~190 240~33 ohm Marine Boat Yacht Car Oil Liquid Tank Fuel Sender Unit Sensors

Product Specifications:

– Protection ank: IP67

– Resolution range: 21 mm

– Assembly: SAE standard 5 holes

– Rated current for alarm switch: 500mA

– Operating temperatures: – 40 to 85 Celsius

– Fit for Fuel Level Gauge and Water Level Gauge

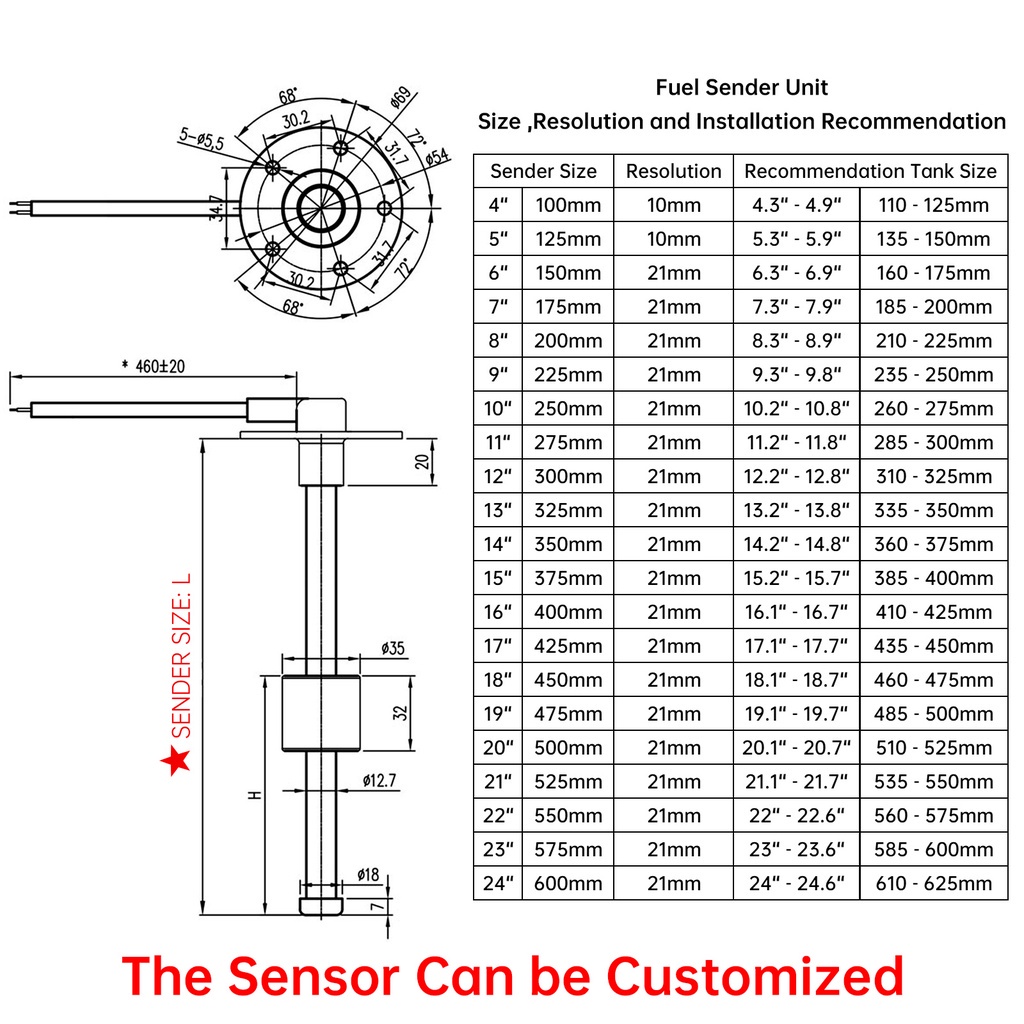

– Sensor Length :300 mm ,350 mm ,400mm, 450 mm

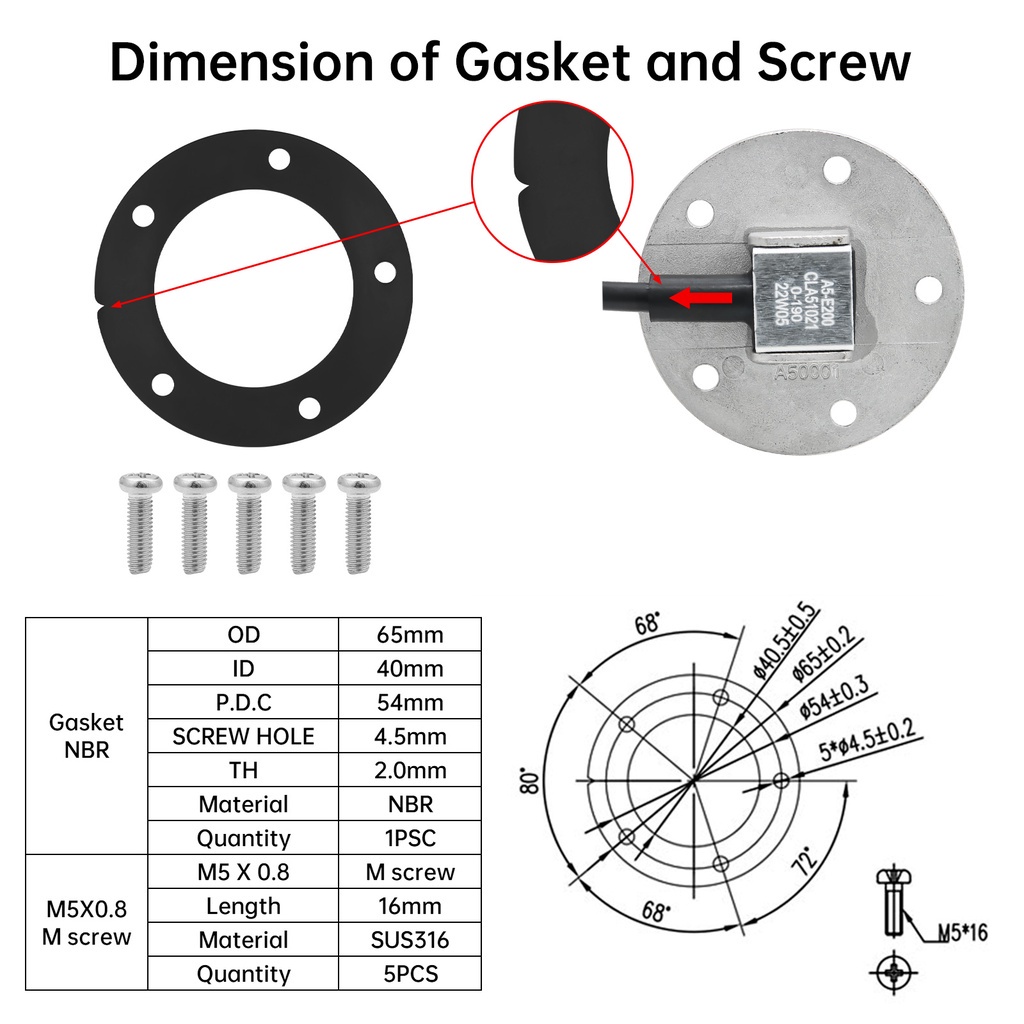

– Mounting: 5 pieces of M5 screws and 2 mm thick gasket

– Output signal: 0~190 ohm (Standard European), 240~33 ohm (Standard American)

Can be customized:

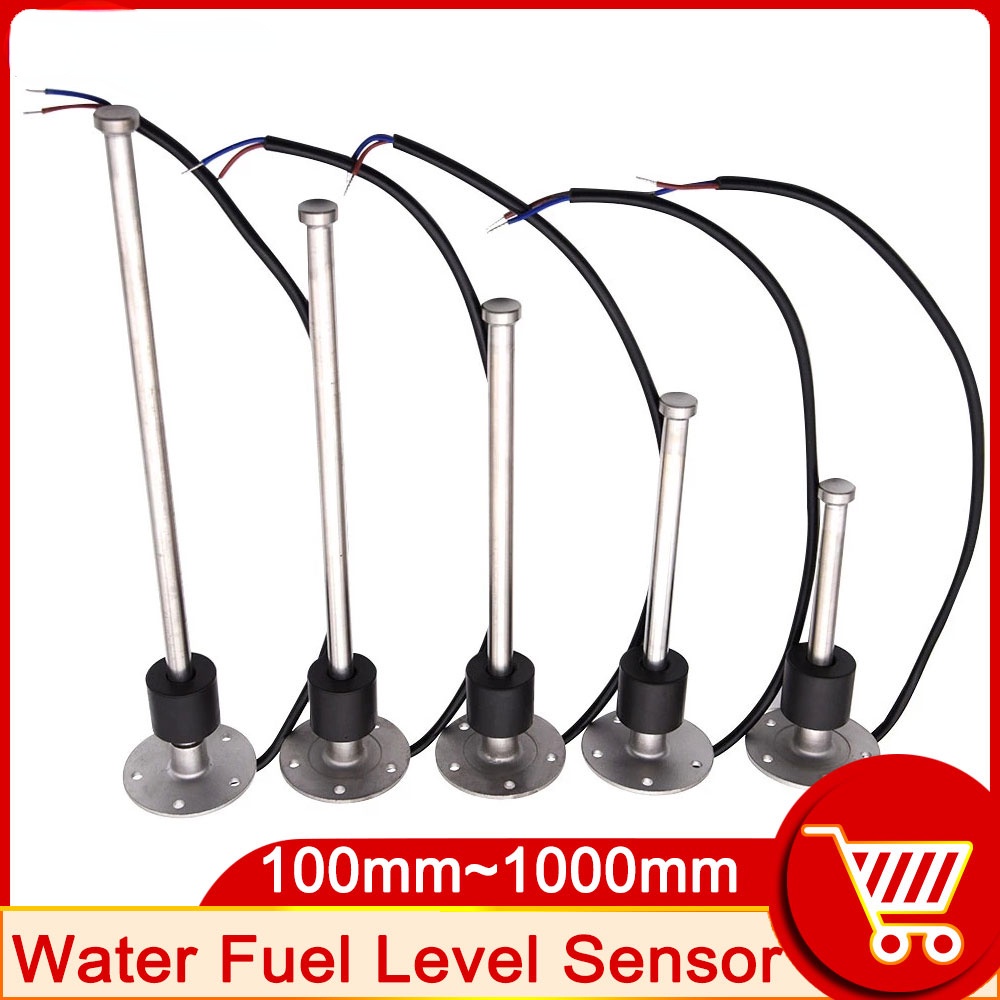

Sensor Length:

100mm, 150mm, 200mm, 250mm, 300 mm ,350 mm ,400mm, 450 mm,500mm, 550mm, 600mm, 650mm, and so on

Output signal:

0~190 ohm (Standard European), 240~33 ohm (Standard American) and so on

The length and output signal of the sensor can be customized, if you need other sizes or output signal, please contact us at any time, we can customize any size for you~~

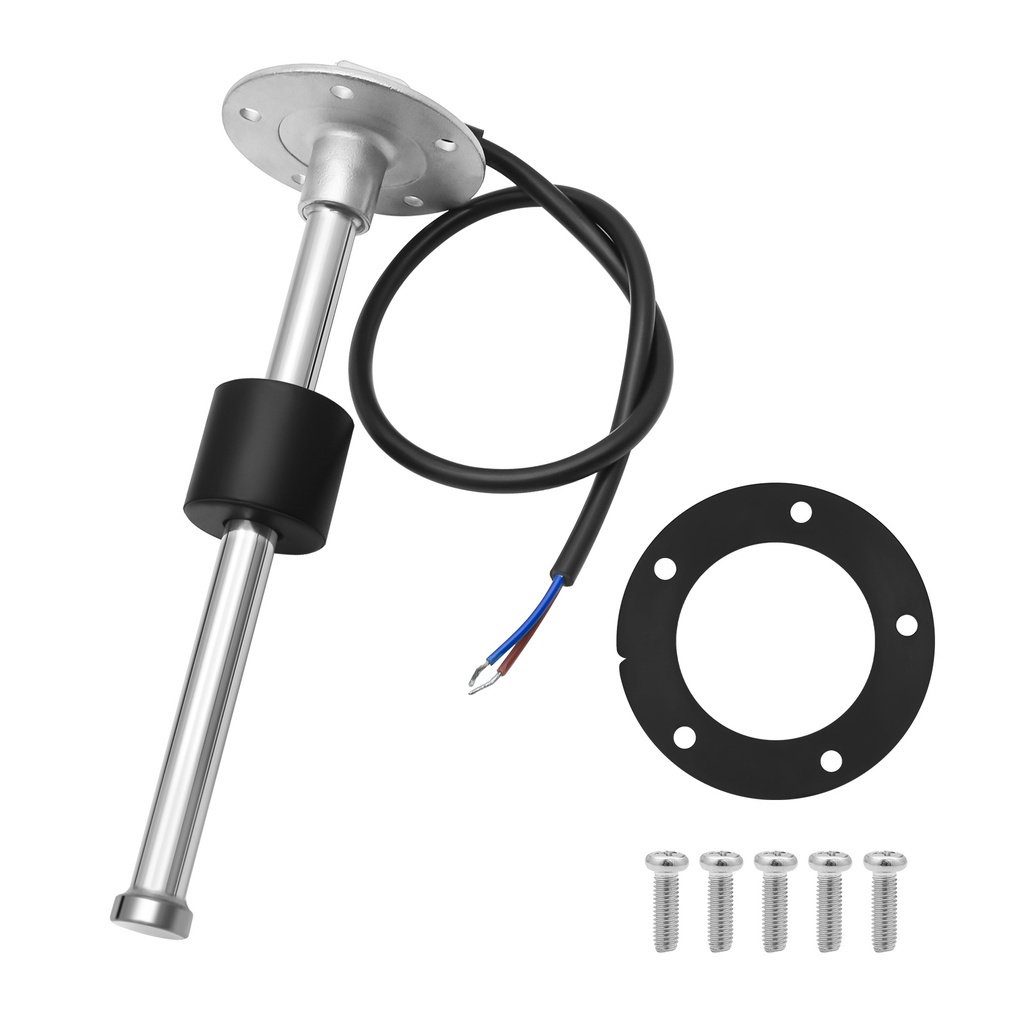

Package Include:

1 x Sensor

1 x Gasket

5 x Screws

Connection:

Blue wire: connect the ground wire

Brown wire: connect the gauge signal wire

Empty oil level 0 ohm/240 ohm

Full oil level 190 ohm/33 ohm

Please attention :

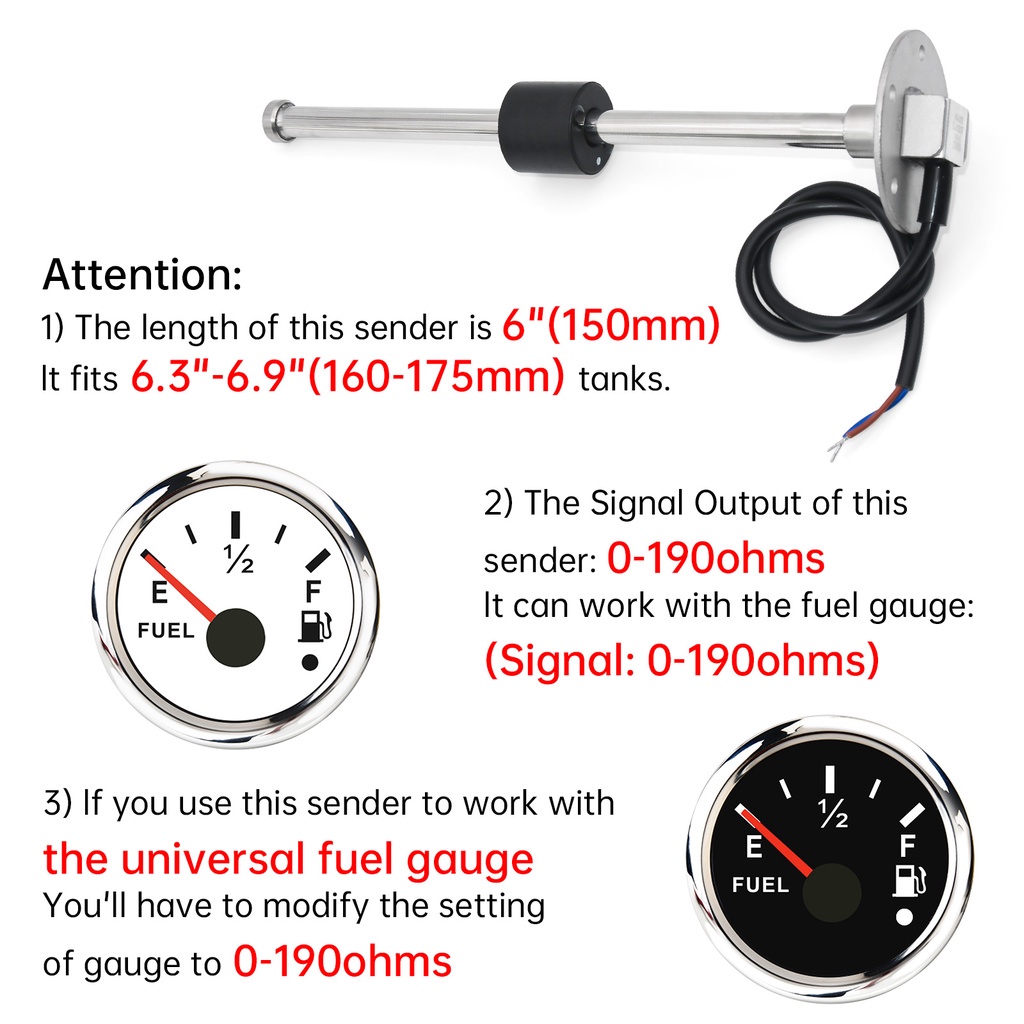

0~190 ohm sensors can only be applied to 0~190 ohm fuel gauge.

240~33 ohm sensors can only be applied to 240~33 ohm fuel gauge.
