12V Brushless Motor fan 10.8v85W High Speed Vacuum Cleaner Three Phase Brushless Motor Vacuum D L

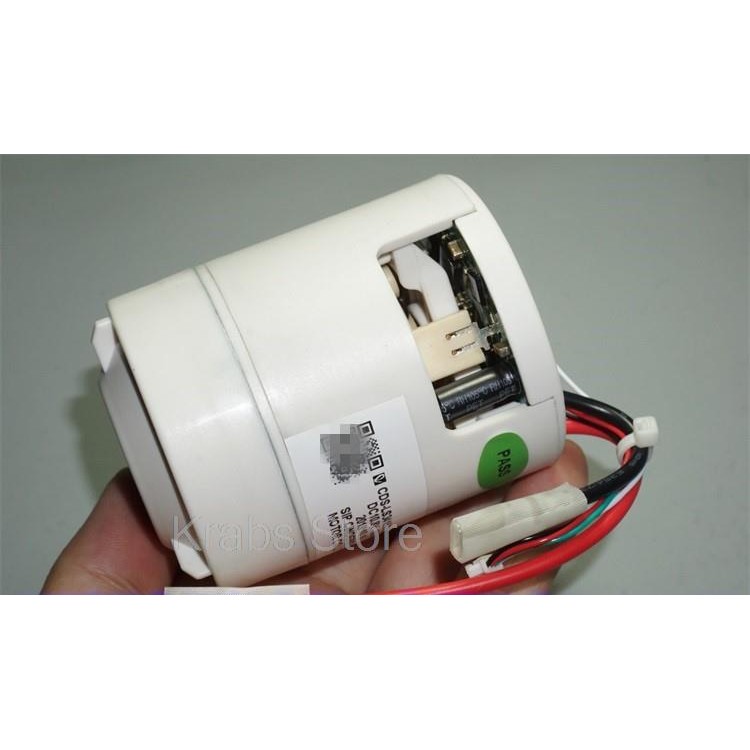

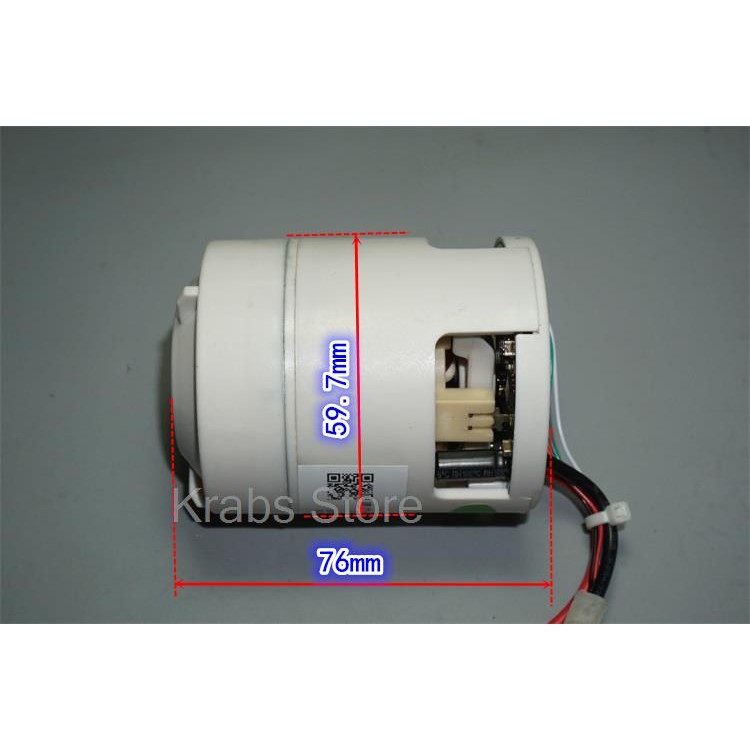

High -speed three -phase brushless vacuum cleaner motor. This motor was originally used on high -end charging vacuum cleaners. The workmanship is very good. The motor has a built -in high -power brushless driver. It is extremely high, so the motor rotor and the impeller have motion balance corrections. The bearings are imported NMB bearings. The impeller is made of aluminum alloy.
There is also a test report in the motor. The maximum air volume is 1m³ per minute. The full vacuum is 7300Pa, and the noise 85dB is for reference only.
The rated voltage of the motor is 10.8V and the power is 85W. It should have been powered by the 3S power lithium battery. The actual limit of 8-15V can be used. The 8V extreme low voltage power cord must be thick. Protection, the maximum current of the motor 8-15V is about 6-7A. The motor supports 1kHz PWM signalless speed adjustment. For details The signal green line connects the 10K resistance to the power supply to run directly at the highest speed, and directly start the line to connect to the power, otherwise the electric opportunity will not be transferred.
The coarse line of the motor, the black line of the coarse line of the motor, must confirm the positive and negative rear wiring, and the error will burn the drive circuit.
Do not directly absorb deities or water absorbers in the impeller, otherwise the motor will be damaged.
The motor is a high -power brushless motor, so the power supply must be large. It is recommended that the power supply is at least 10A or larger. The lithium battery requires a large current power cell. The motor is suitable Essence
