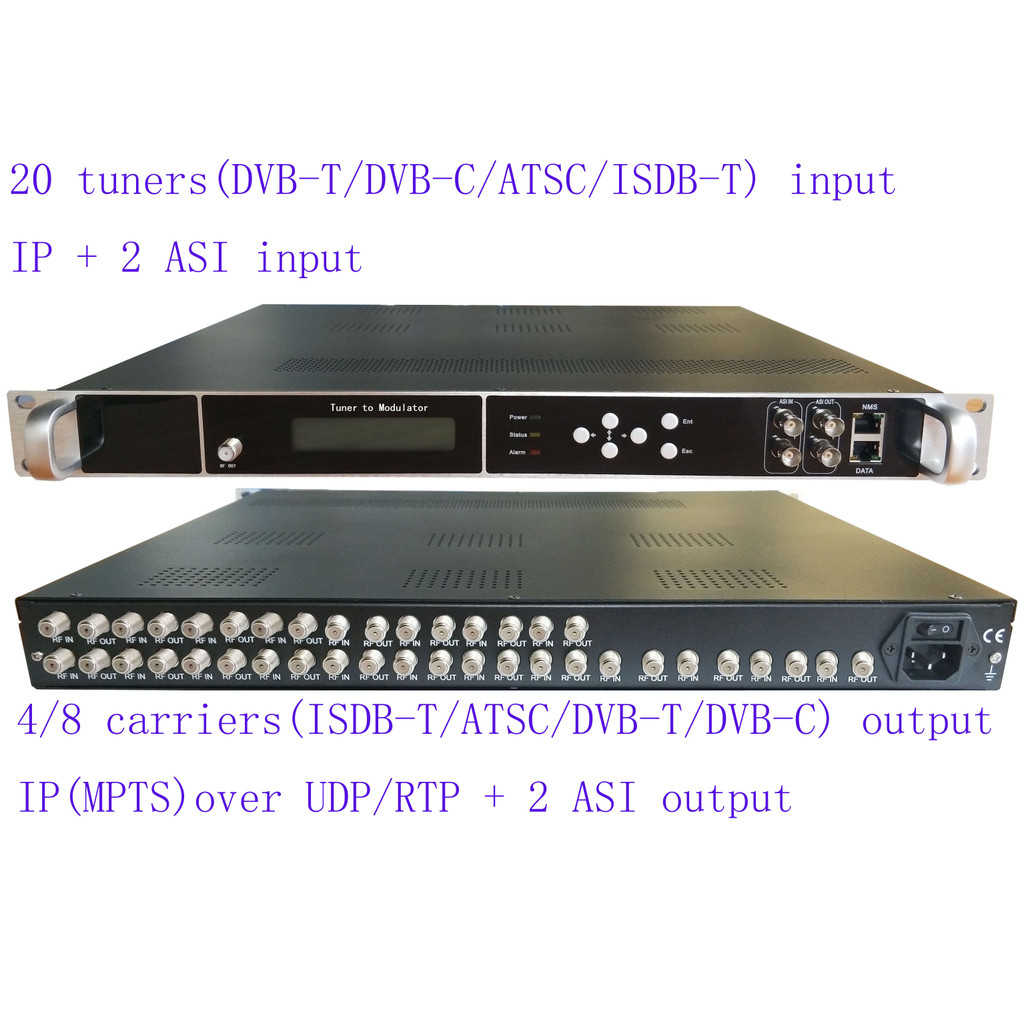

20 way dvb-s2/S to ATSC catv digital modulator, 20 way ATSC tuner to ATSC RF modulator, TV head

Outline
This device only support Free to Air satellite & RF signals. Please note.
Features
l  Decodeable MPEG-2 and MPEG-4 Transport Streams Packaged into IP Packets
l  Supports MPTS output (single program stream)
l  Supports 20 Tuner inputs
l  Supports 4/8 frequency ATSC output
l  Supports 2 ASI inputs
l  Supports 1 channel independent ASI output
l  Supports Gigabit IP output, UDP/RTP protocol (Multicast)
l  Supports LCD and key functions
l  Support network management (Web)

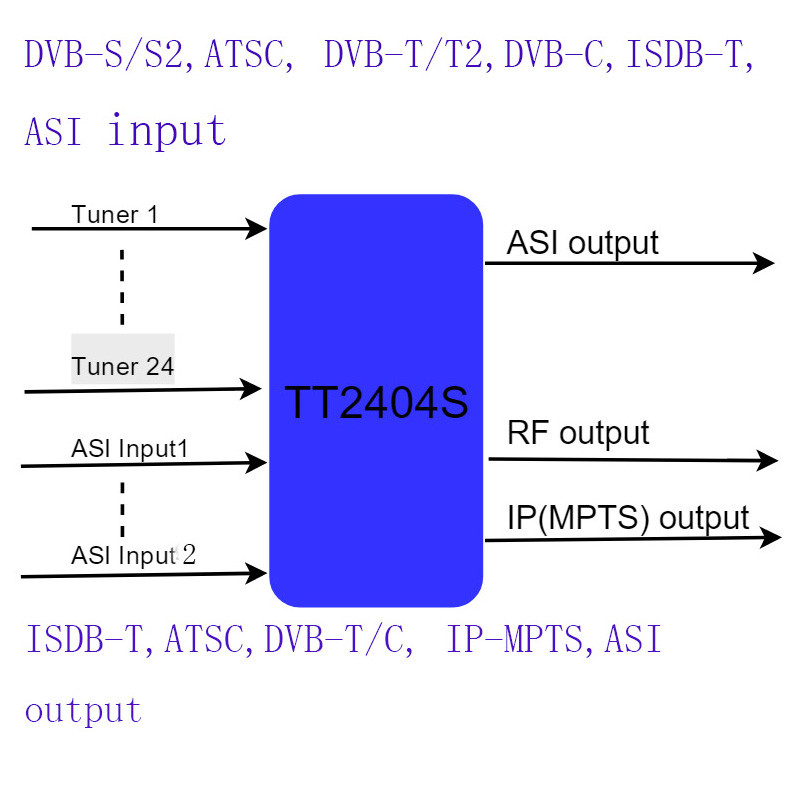

TT2404S DVB-C Principle Chart
Specifications
Input
20 tuners input+2 ASI input
Tuner Section
DVB-S/S2
Input Frequency
950-2150MHz
Symbol rate
DVB-S: QPSK 2~45Mbauds;
DVB-S2:QPSK1~45Mbauds, 8PSK 2~30Mbauds
Code rate
1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
Constellation
QPSK, 8PSK
DVB-T/T2
Frequency In
30MHz ~999.999 MHz
Bandwidth
6/7/8 M bandwidth
ATSC-T
Input Frequency
54MHz~858MHz
Bandwidth
6M bandwidth
ISDB-T
Input Frequency
30-1000MHz
DVB-C
Standard
J.83A(DVB-C), J.83B, J.83C
Frequency In
30 MHz~1000 MHz
Constellation
16/32/64/128/256 QAM
Output
4/8 carriers ATSC
1MPTS IP mirrored output over UDP and RTP/RTSP protocol through IP portMulticast
2 ASI output
BISS Descrambling
Mode 1, Mode E (Up to 850Mbps) (descramble individual program)
