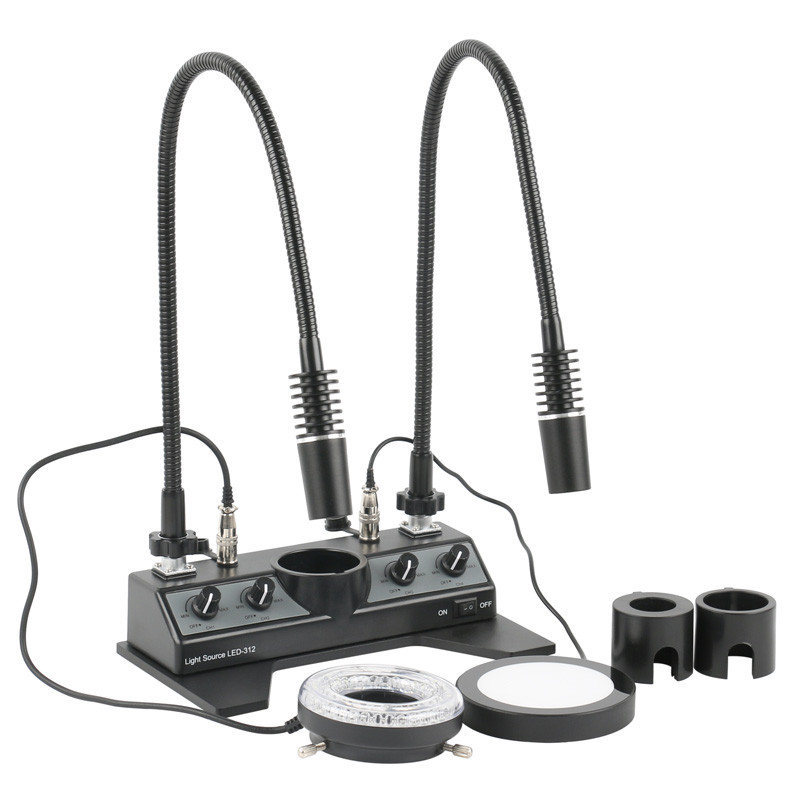

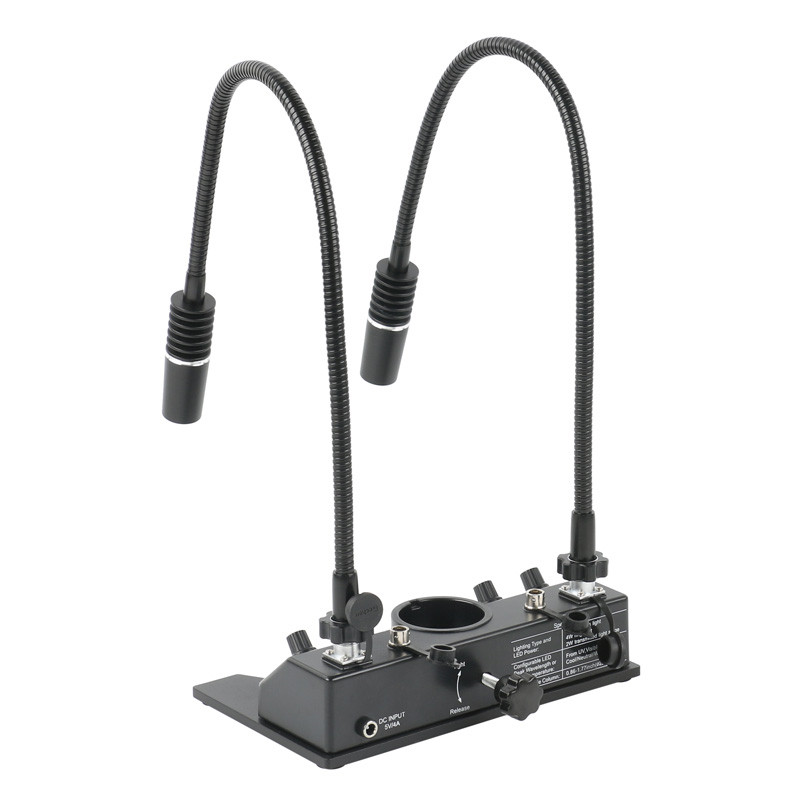

4 IN 1 LED Microscope Illuminator Set Stage 80 LED Ring Light 2 Gooseneck Lamp 6W Bottom Base Light

Product integrates three types of light sources commonly used in microscopes and vision instruments: LED spot light, LED ring light and LED transmission light source .
Each light source can work independently, continuous stepless dimming, no strobe
The intensity of each light source is stable, and spot uniformity. Especially gooseneck lights equipped with a lens group, the output spot uniform and clear edge, the observation of high contrast
The appearance of the host is novel and compact.
There are a variety of mounting fixtures, can be fixed with a variety of brand microscope
With an external base, can be placed independently.
Power supply using an external wide voltage adapter, can meet the national safety certification

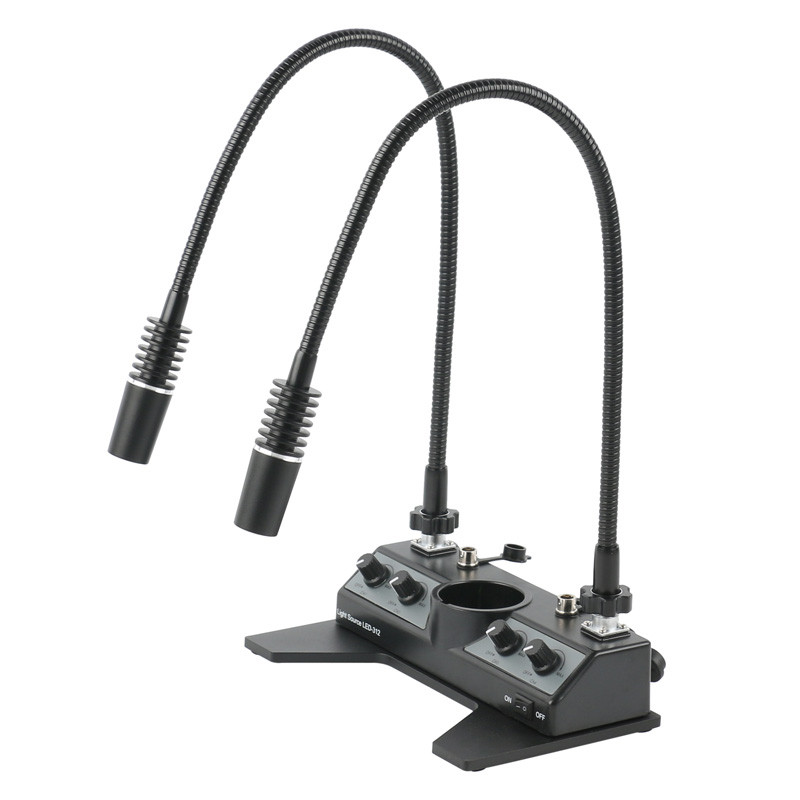

LED gooseneck light2X3W Philips Rebel LEDWith three glass lenses, gooseneck length 500mm

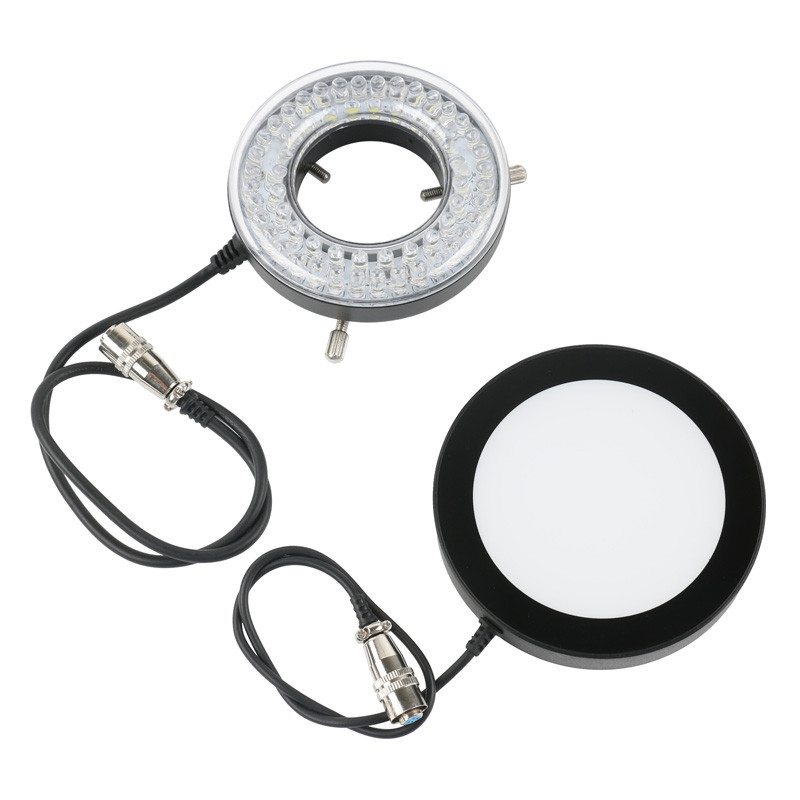

LED ring light60pcs 5mm-LED,3W
Mounting ring size for microscope: 60mm or Custom
LED Transmitted light stage42pcs SMT side-emitting LED, 2.5W, 95mm (Outside diameter )72mm(illuminated area)15mm(thick)
Brightness
LED gooseneck light >24000lx@100mm
LED ring light >24000lx@100mm
LED transmitted light stage>8000lx
Color:White Lighting 6500K
Power Adapter100-240VAC/50-60Hz— 5VDC/4A
Column matching caliber45mm,35mm,25mm
A separate stand can be used separately
Optional microscope square column fitting fixture, with Olympus, Nikon and other brands of square column microscope

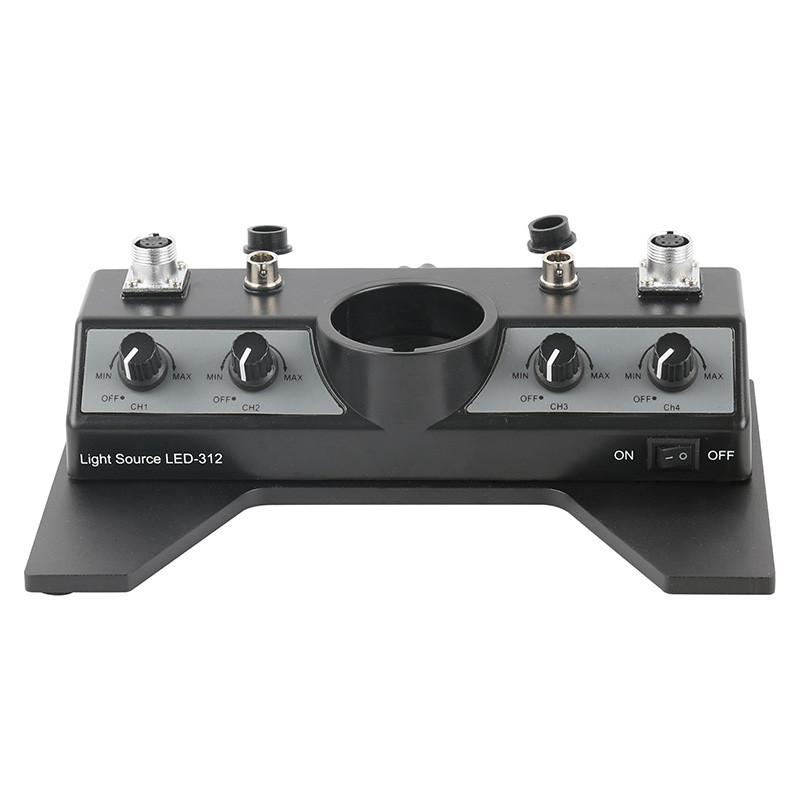

Main body size200mmLX65mmWX40mmH
Illumination area diameter:72mm
Item Diameter:95mm

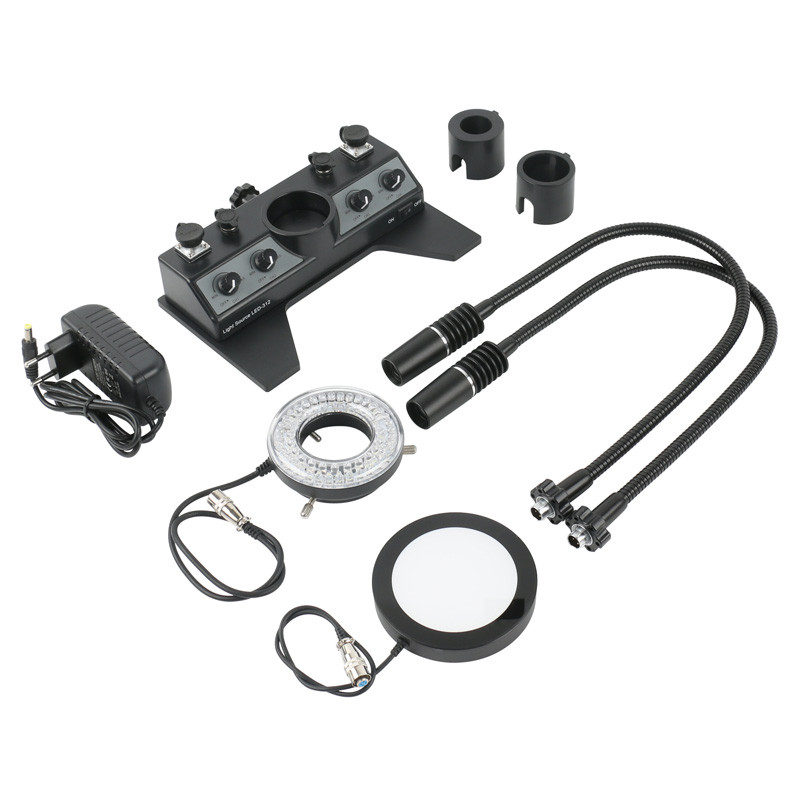

Package including:
1 x 4 in 1 LED Light Set
(Not include: Stereo Microscope)
