433Mhz 220V 30A 1CH Wireless Remote Control Switch RF High Power Relay Receiver Module With ON OFF

1. High power controller, can be used in many places
2. High quality shell, Flame retardant
3. Remote Has keychains, easy to hold
4. Small Size,soft contact, small but not simple
Features

Products can be used in homes, farms, factories, offices, laboratories, supermarkets and so on.

Remote control garage door Electric door house door shutter door expansion door gate door road gate

Remote control Electric curtain Water pump Fan Lamp LED light bulb ventilation device Signal transmission

Remote control motor positive and negative rotation motor switch DIY

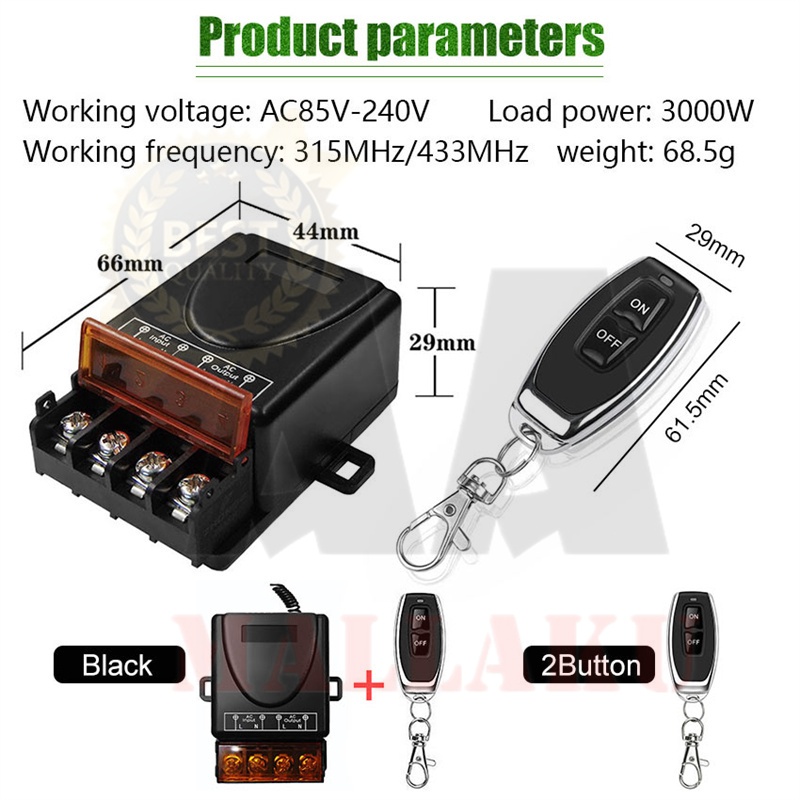

Specifications

Material: plastics+metal

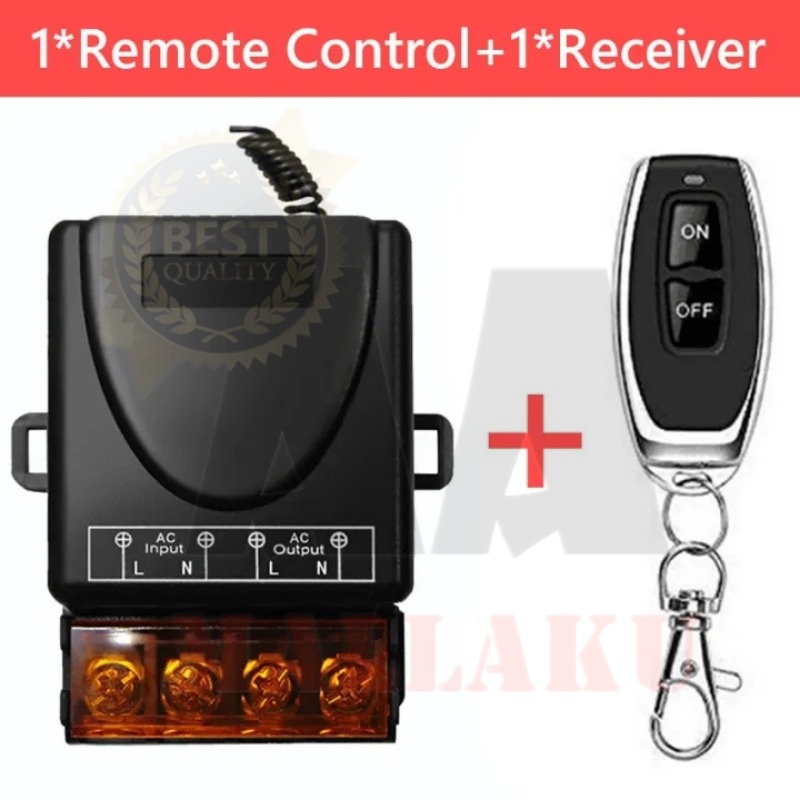

Type: Remote Switch + 1pcs Remote Controller

Quiescent current: 10MA

Operating Temperature: -40 to 80

Load power: 3000W

Sensitivity: -110dbm

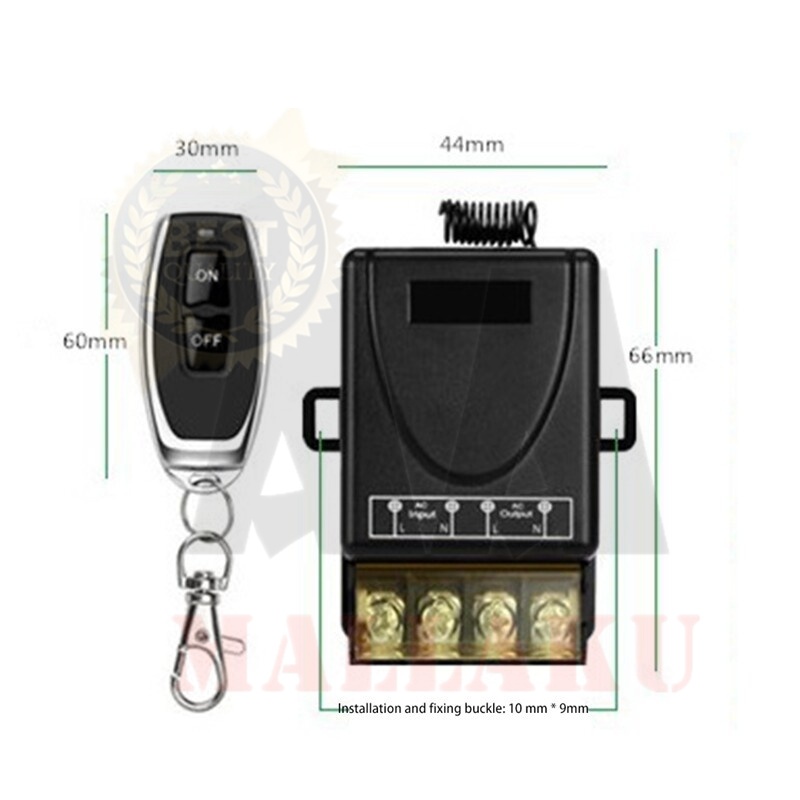

Item size: 66 * 44 * 29mm / 2.60 * 1.73 * 1.14in

Working Voltage: AC 110V – 250V.

Working Frequency: 433Mhz.

Modulation Mode: ASK.

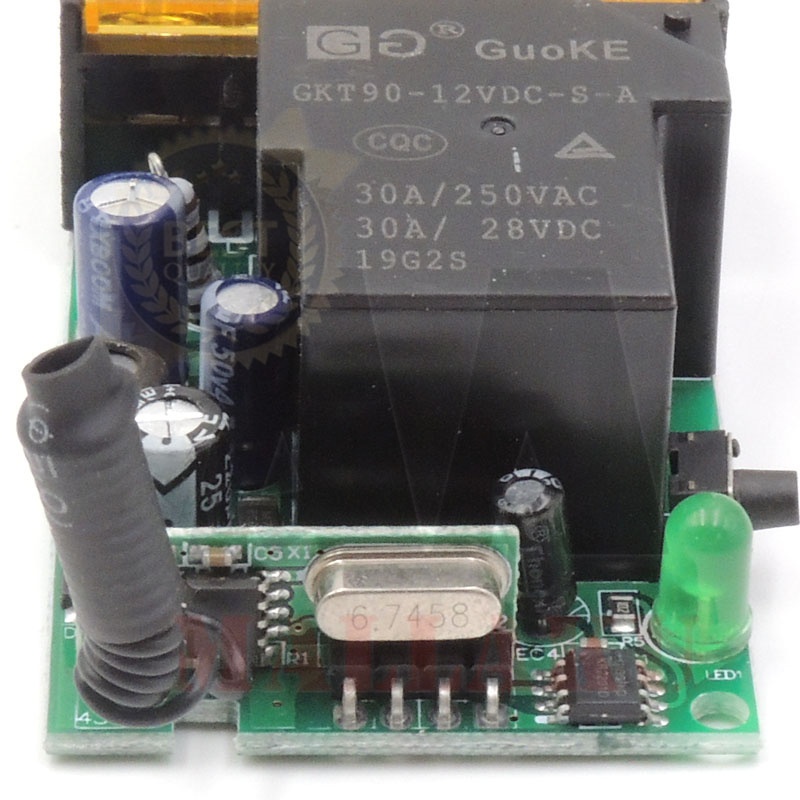

Max Load: 30A Relay, Resistive load25A, Inductive load20A.

Transmitting Distance: 20 -50 Meters Indoor, 50-100 Meters In Open Space.

Function Option: Momentary / Toggle / Latched.

Matching Mode: Intelligent Learning Code.

Output Mode: Dry Contact /Voltage Output.

Learnable Transmitters: 1-25 transmitters .
