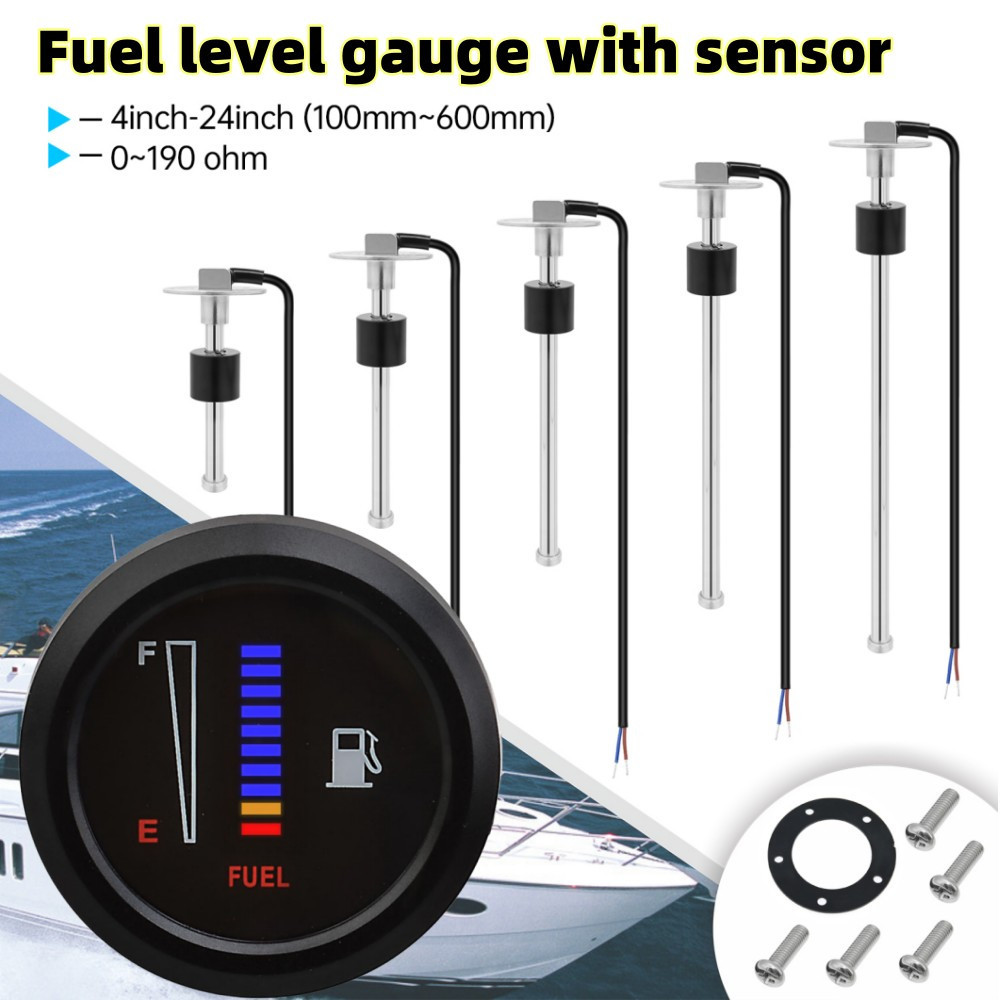

52MM 0-190 Ohm Fuel Level Gauge With Fuel Level Sensor 10 Grid Led Light Display Ultra-Thin R

52MM 0-190 Ohm Fuel Level Gauge With Fuel Level Sensor 10 Grid Led Light Display Ultra-Thin Round

Features:
8 Blue/Green LED display Fuel
1 yellow LED means that the gas is few, and 1 red LED means the petrol is almost running out
This oil meter has a delay function circuit that does not cause flickering of the LED display because the tank is sloshing during driving. Blue LED can be clearly shown in strong sunlight

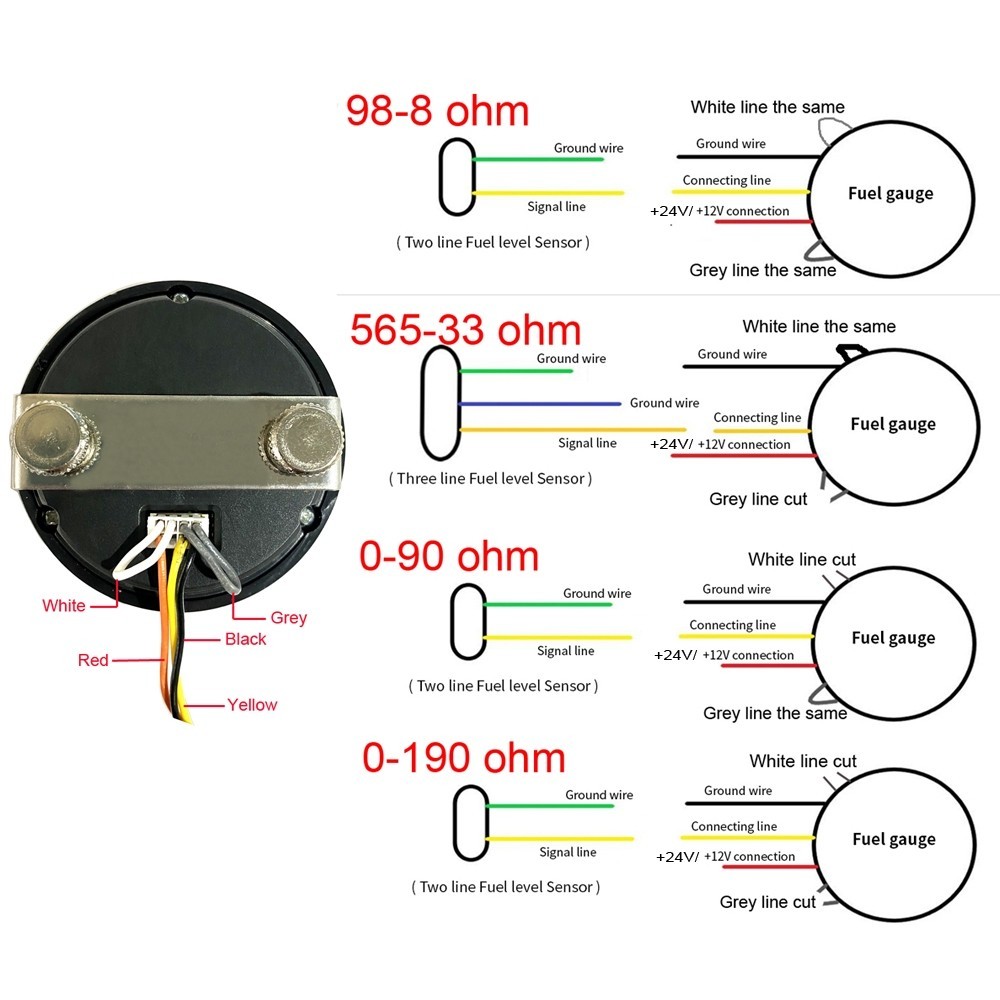

Installation:
1. Orange +12V connect Power Positive
2. Black connect Power Negative
3. Yellow Wire connect Oil can Sensor(must not connect with the original test wire, or this Fuel Gauge is inaccuracy)

Specifications:
Material: ABS+316 Stainless steel
Numbers of LED: 10 leds (8 pcs blue,1 pc yellow,1 pc red)
LED Color: Blue/Green
Voltage: DC 12V
Fuel level sensor ohm Range: 0-190 OHM
Application for car , motor , water tank and fuel tank and ect.
Gauge Diameter: 52mm/2.06″
Gauge Height: 18mm/0.7″
Gauge Wire length: 37cm/14.57″
Quantity: 1 Pc

Note:
Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package Contents:

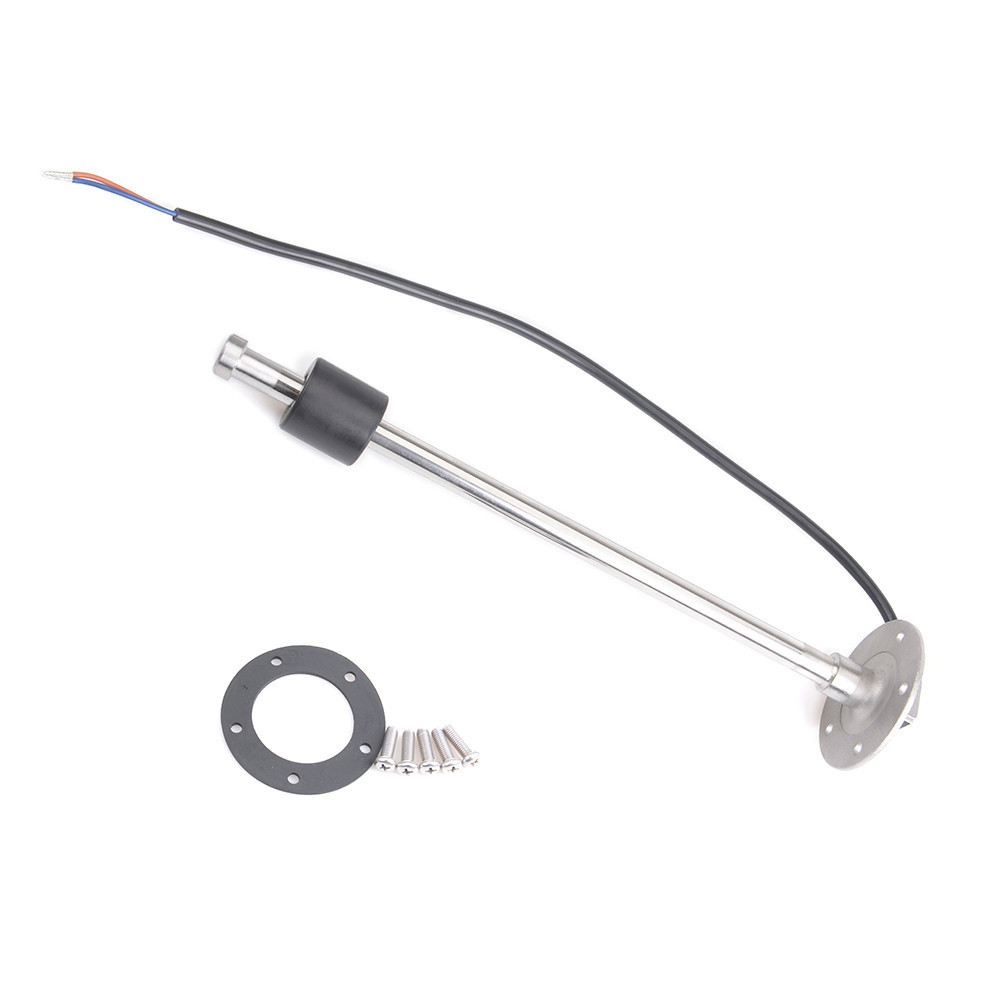

1 x Fuel Level Meter Gauge
1x Fuel Level Sensor
