6Bit Nixie Glow Clock Motherboard Core Board Control W Remote FPR in12 in14 in18 qs30-1 Digital LED Clock dc 12v POWER

6-Bit Glow Clock Motherboard Core Board Control Panel Remote Control Universal in12 in14 in18 qs30-1 Nixie Digital LED Clock

Description:

Features:

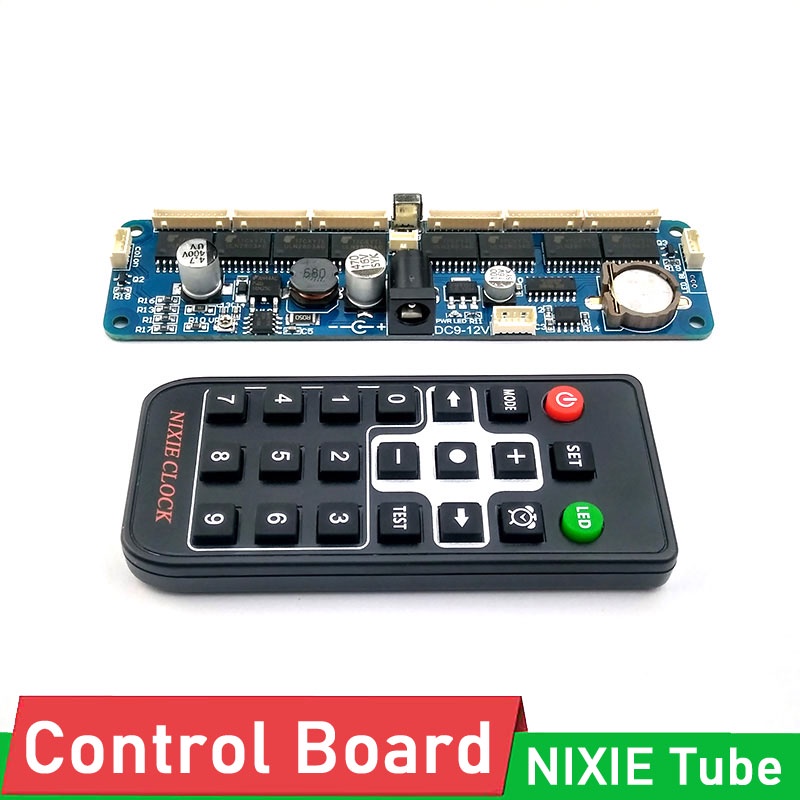

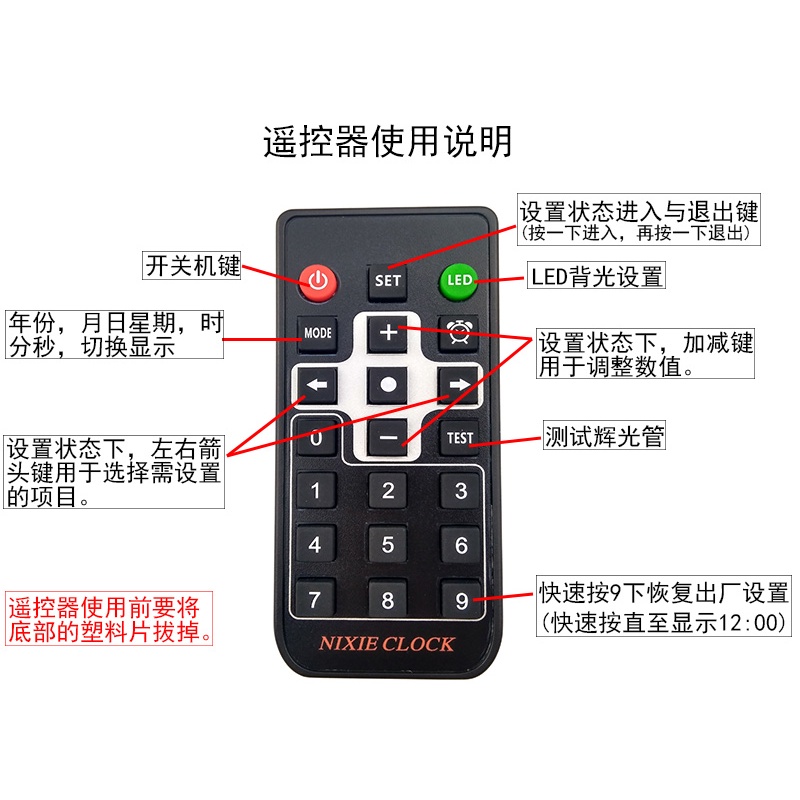

This board is a universal glow clock core board with integrated glow clock. All functions include boost module. A complete 6-bit glow clock can be made by adding a glow tube to a board. Use remote control to adjust the time, switch the machine. It also has an external infrared and power interface to facilitate the user to make the case.

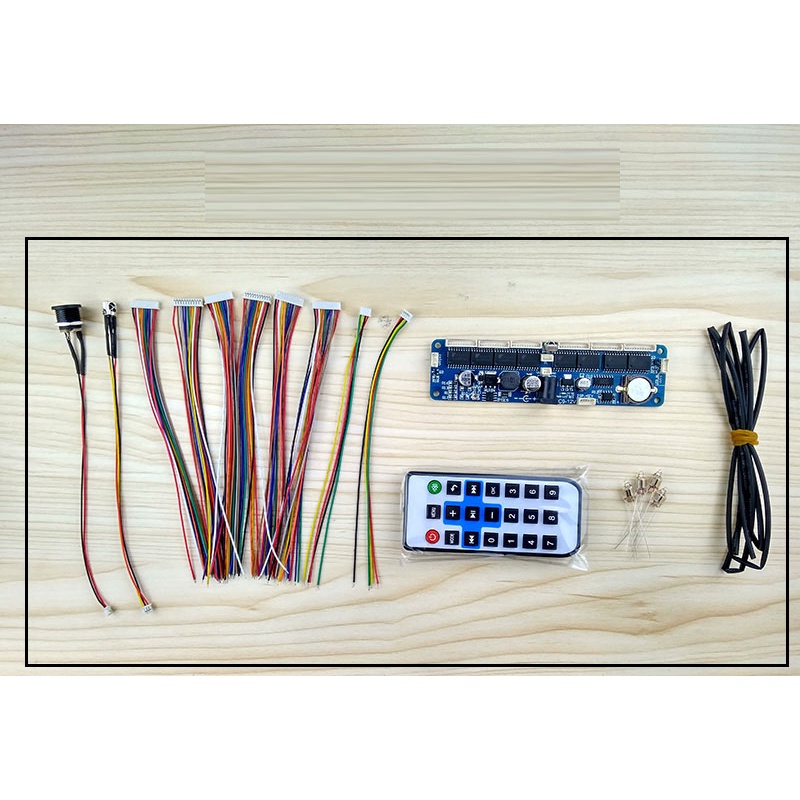

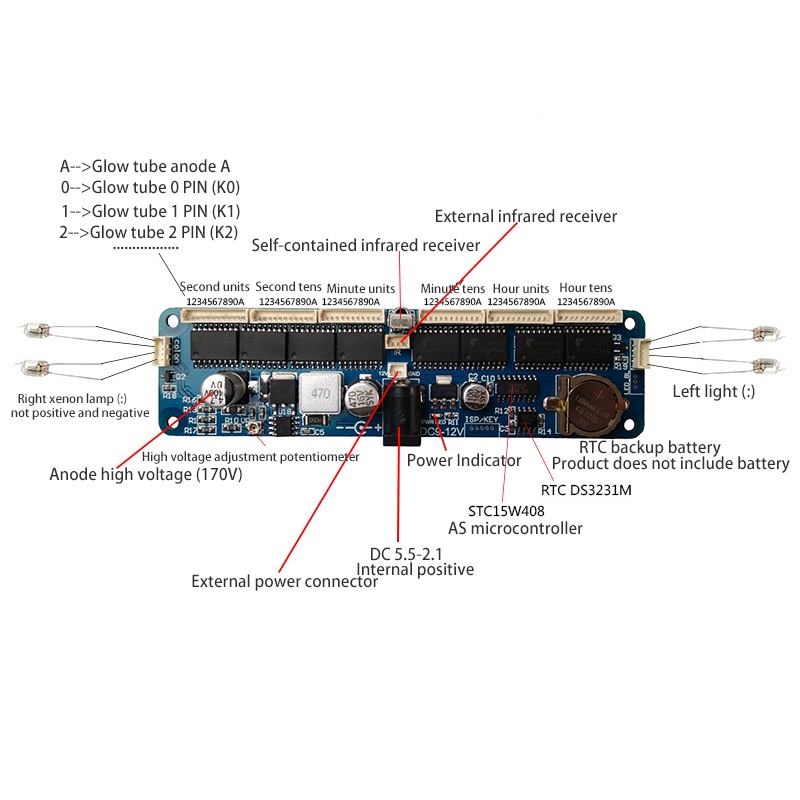

The clock adopts DS3231M, built-in crystal oscillator and accurate timing. The boost section uses the MAX1771 high-efficiency solution with low heat generation (inductive hands can be in contact for long periods of time). The single-chip computer uses STC15W408AS with anti-cathode poisoning program, delayed shutdown, time switch and other functions. Small size makes it easy to fit into a smaller enclosure. Deliver all wires. Use 9V-12V, 500MA or above power adapter, the interface is DC5.52.1.
