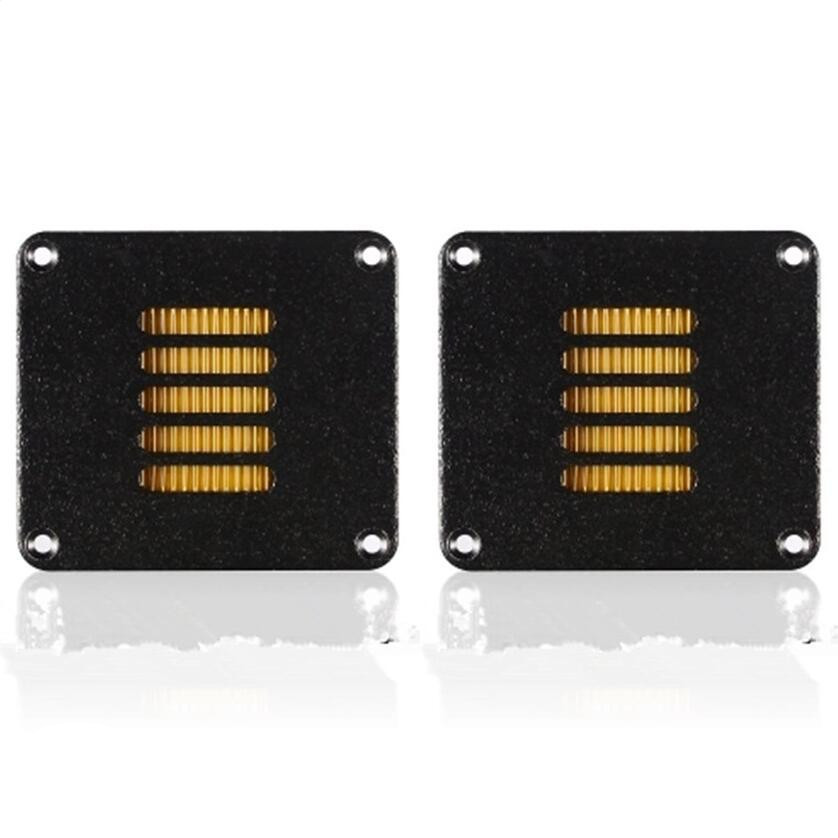

AMT tweeter – 1 paio (Air Motion Trasformatore tweeter) 2 pcs/lot

Air motion tweeter ribbon tweeter AMT for DIY HiFI audio and Car speaker
The Air Motion Transformer tweeter works by pushing air out perpendicularly from the pleated diaphragm. Its diaphragm is the folded pleats of film (typically PET film) around aluminium struts held in a strong magnetic field. In past decades, ESS of California produced a series of hybrid loudspeakers using such tweeters, along with conventional woofers, referring to them as Heil transducers after their inventor, Oskar Heil. They are capable of considerable output levels and are rather more sturdy than electrostatics or ribbons, but have similar low-mass moving elements.
Most of the current AMT drivers in use today are similar in efficiency and frequency response to the original Oskar Heil designs of the 1970s.
Rated Impedance
3.6
Front Panel
Iron
Sensitivity
91dB
Finish of Panel
Powder coat
Frequency Range
3k~40k Hz
Diaphram
KAPTON
RMS Power
20W
Conductive Line
Alumium foil
Max Power
40W
Magnet
Neodymium
Lowest crossover
3.5k Hz(recommend)
Terminal (mm)
65*73*22MM
