Car Spray Paint Booth Customized Car Paint Spray Booth Best Selling Car Paint Cabins Auto Spray

Car spray paint booth customized car paint spray booth oven mobile spray booth/used car paint booth/automatic booth paint room
BEFORE ORDER:
1. Shipping cost not free! Please tell us your destination sea port to get exactly shipping cost by sea.
2. The price don’t include any destination customs tariff and port fees, before order customers need to learn your customs tariff policy first themselves .
3. Payment method we accept T/T bank  to bank.
Outside Size:
7000 x 5350 x 3500mm
Inside  Size
6900 x 3900 x 2650 mm (L x W x H)
Foundation and Floor
Foundation
Full metal foundation, two rows flat steel grids and three rows metal non-slip diamond plates
Metal basement
280mm height
Drive-in Ramps
3Units, each size: 2000X970mm, diamond plate construction
Wall and door
Wallboard and Roof Panel
Adopt high quality double construction fireproof insulation EPS panel, thickness: 50mm

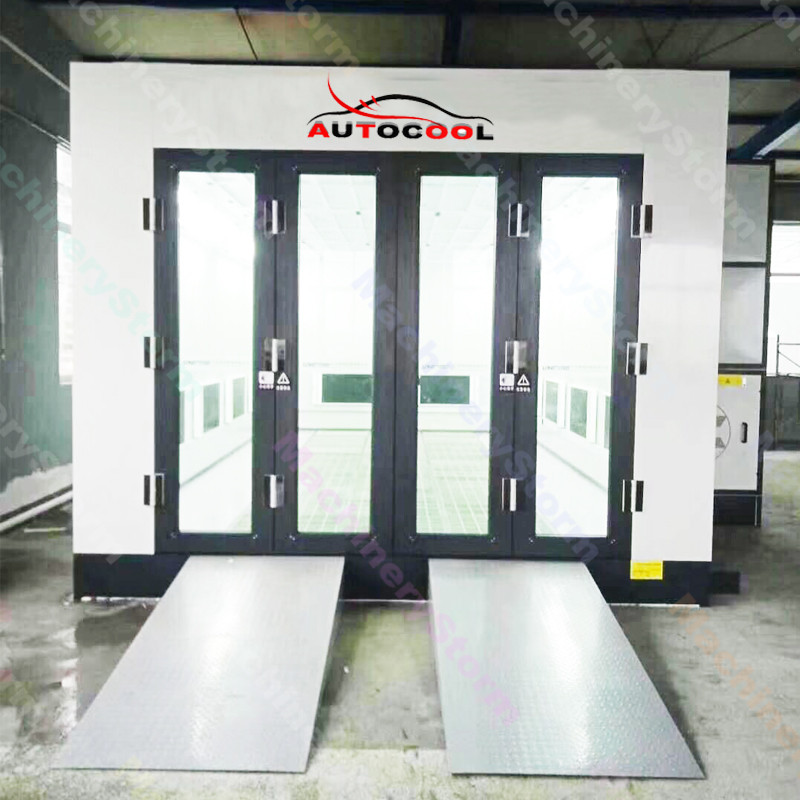

3-Folded Entrance Door With Safety Glass Window
1 set, size: 3000×2600 mm(B x H), Aluminum alloy frame, size is bigger and stronger than traditional spray booth
-Operator’s Door With Safety Glass Window
Big opening:700x2000mm (B x H),hand-made, tempering glass observation window
Light System
Ceiling Lighting
8Units, each 4×16W, Total 512W , adopt LED  Lamp
Side Lighting
8Units, each 4×16W, Total 512W , adopt LED  Lamp
Brightness
1000 LUX
Filtration System
Primary filters
Filtration Class G3 & Flame Resistance F-1 plate type  prolonged and hardened fiber
Ceiling Filters
Flame Resistance F-1 & EU5 grade high efficient filter
Bottom filter & exhaust filter
Flame Resistance F-1 &Grade G2 Fibreglass paint-stop filter
Ventilation System
Inlet fan and Outlet fan
Two sets air fans 4 kw centrifugal; one sets for air-intake, one for air-outlet, One cabinet for fans + three Air ducts + one electric air damper.
Painting and baking exchange system
Solenoid valve+ pressure adjustment control cylinder driven damper exchange
Total fan Capacity
26,000m3;/h
Air Flow Speed in cabin
0. 25m/s in empty booth , 0.30m/s in loaded booth
Heating Ex-changer
Adopt high efficient heat-resistant stainless steel as cycling heat ex-changer
Heating System
Heating Exchange Capacity
160KW(180,000Kcal/H)
Burner Model
Adopt Italy RIELLO diesel burner G10(100,000kcal/h)
Heating time
6-8minutes (from20 to 60º under baking status, max baking temperature is 80°
Control system
Standard control system
Control Board
Function
Painting, warm painting, baking, lighting, emergency stop switch, failure indication, over-temperature alarm indication
Total power
10 KW
Voltage
380V/ 3PH/ 50HZ
