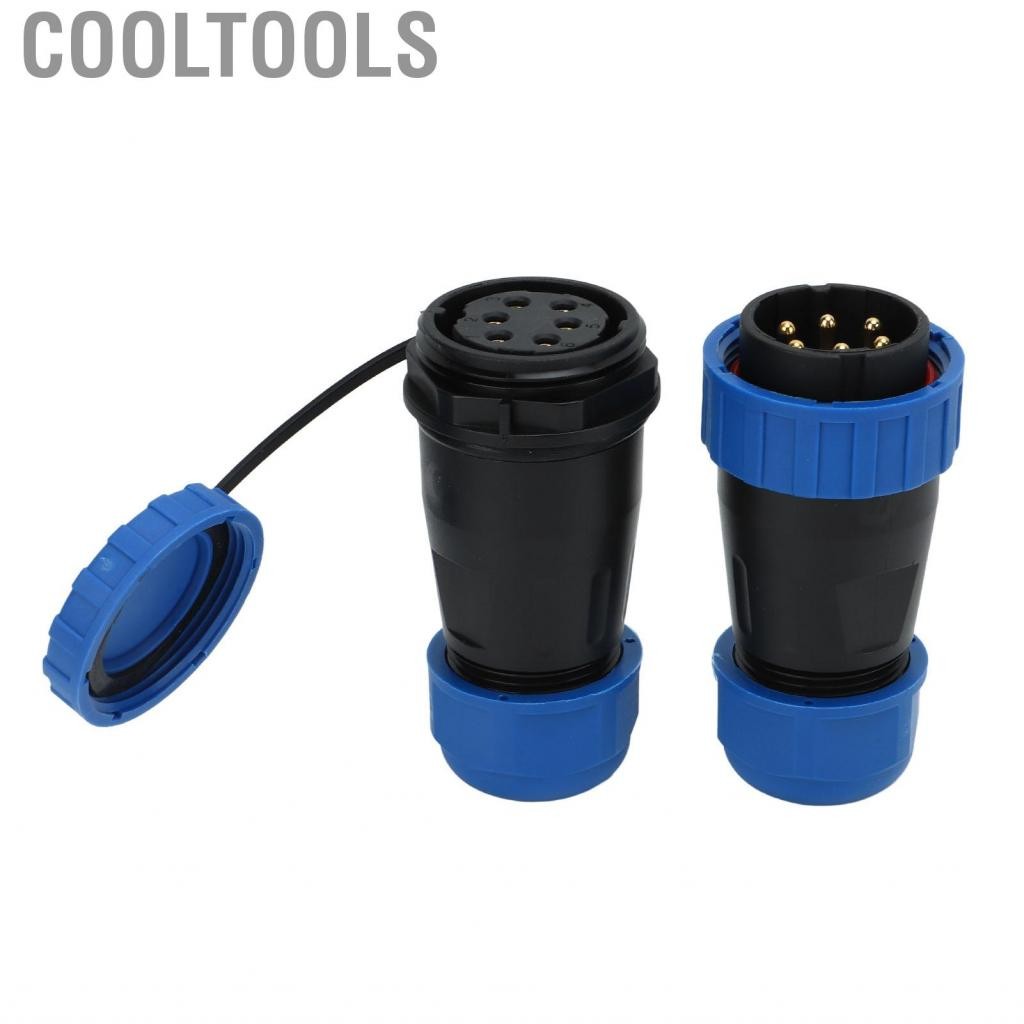

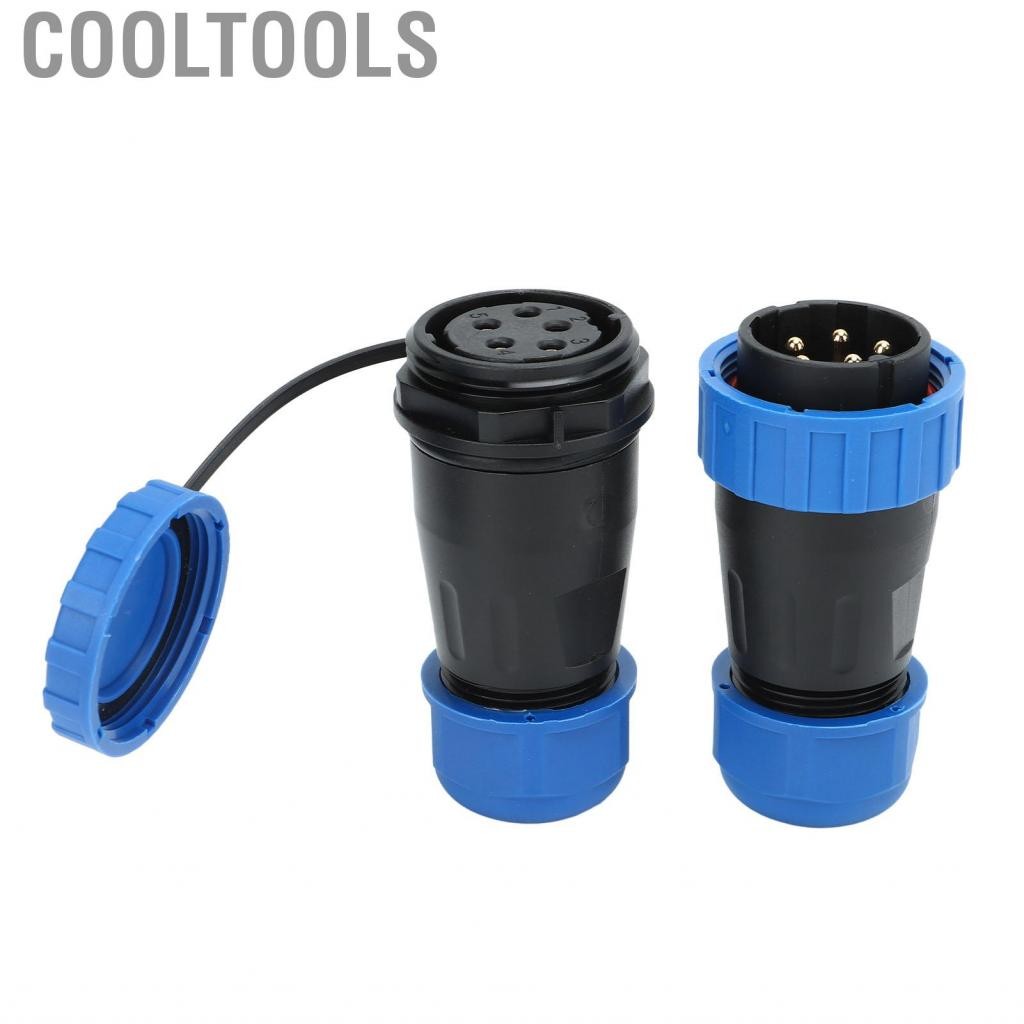

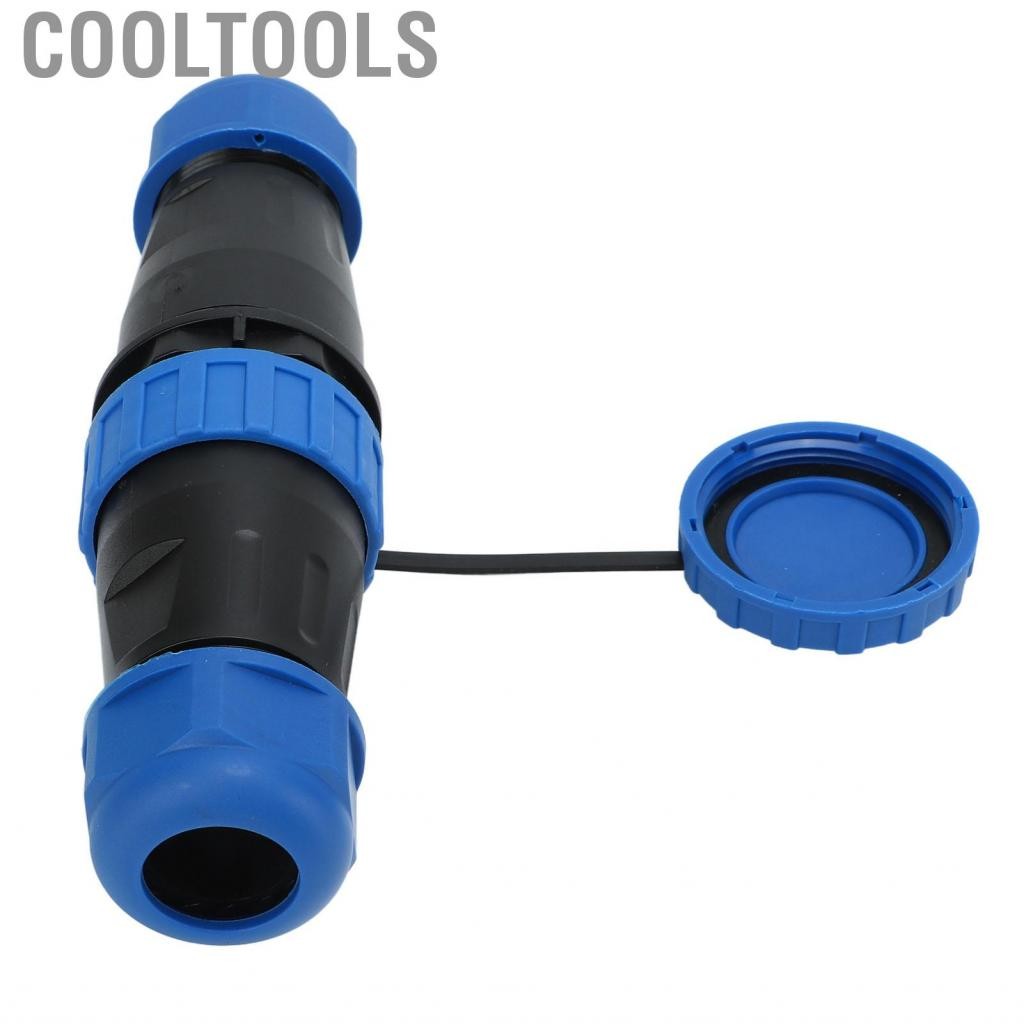

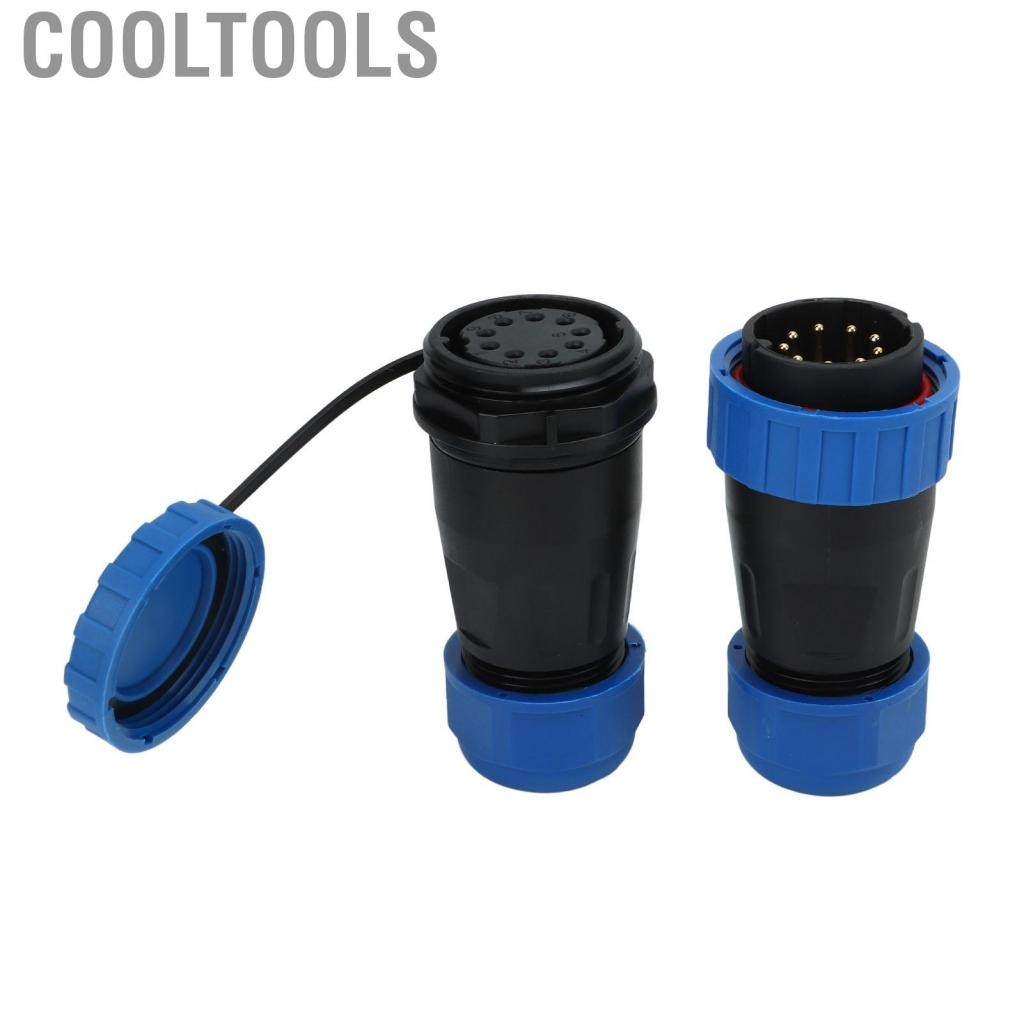

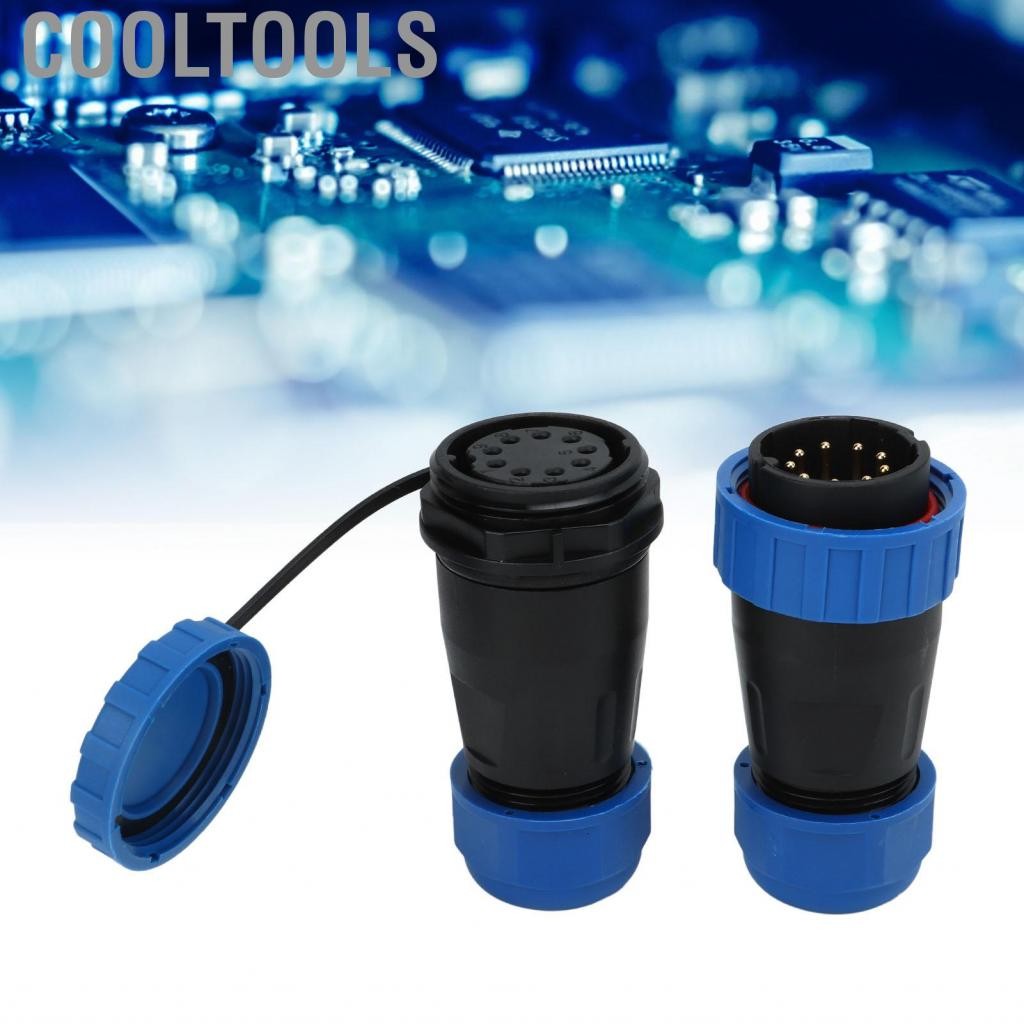

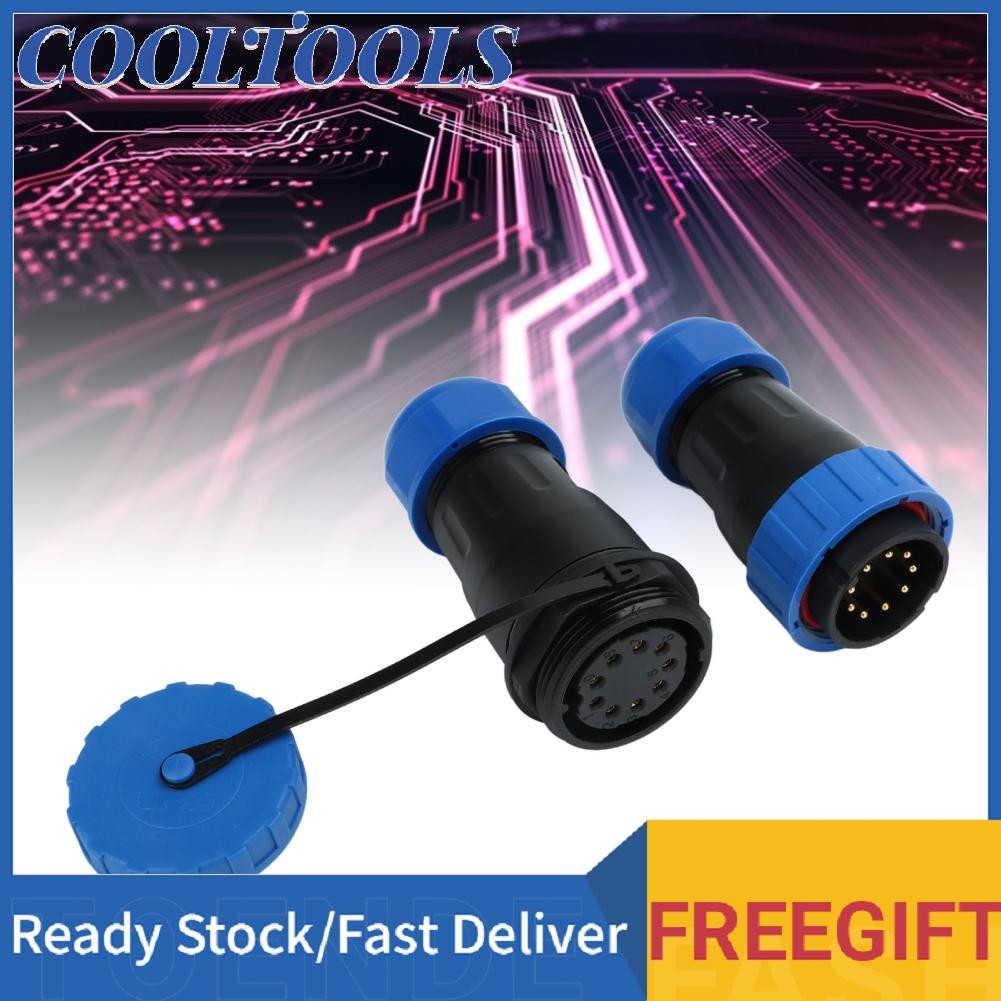

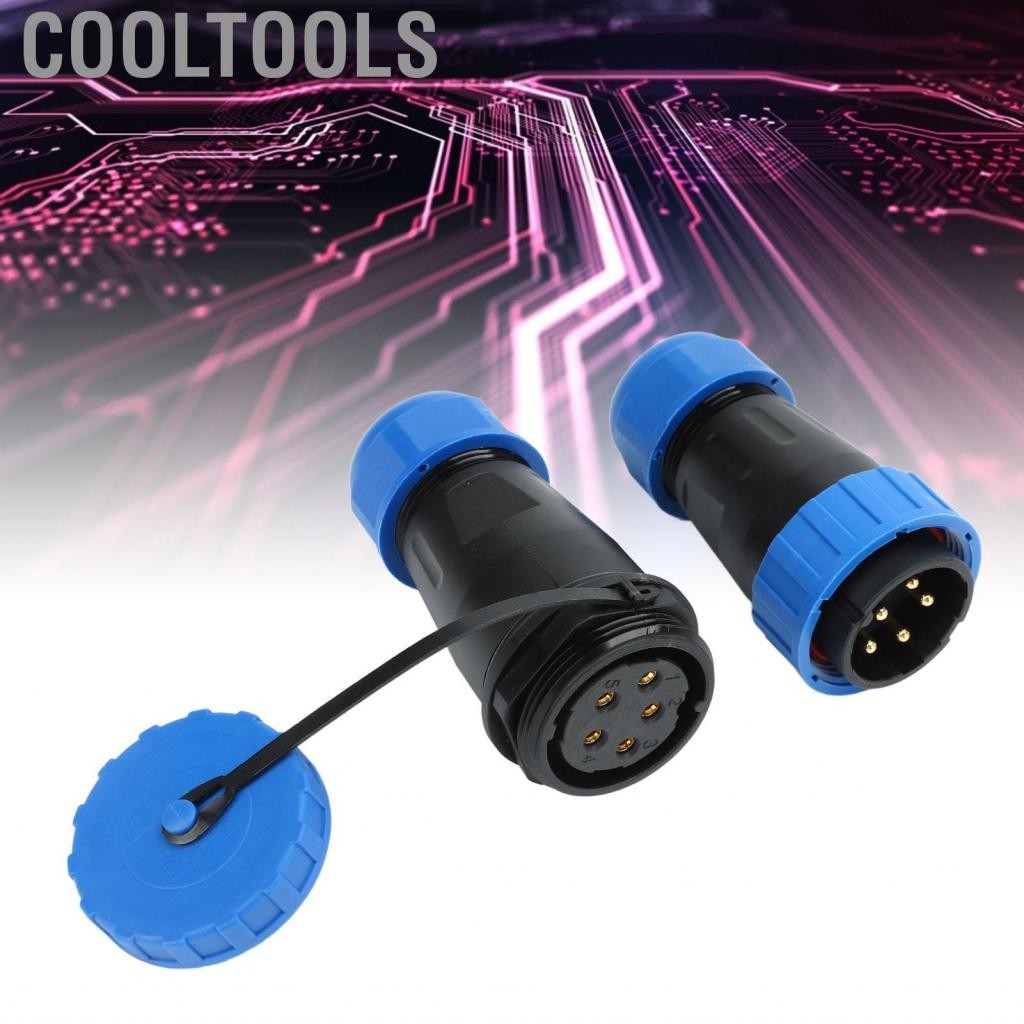

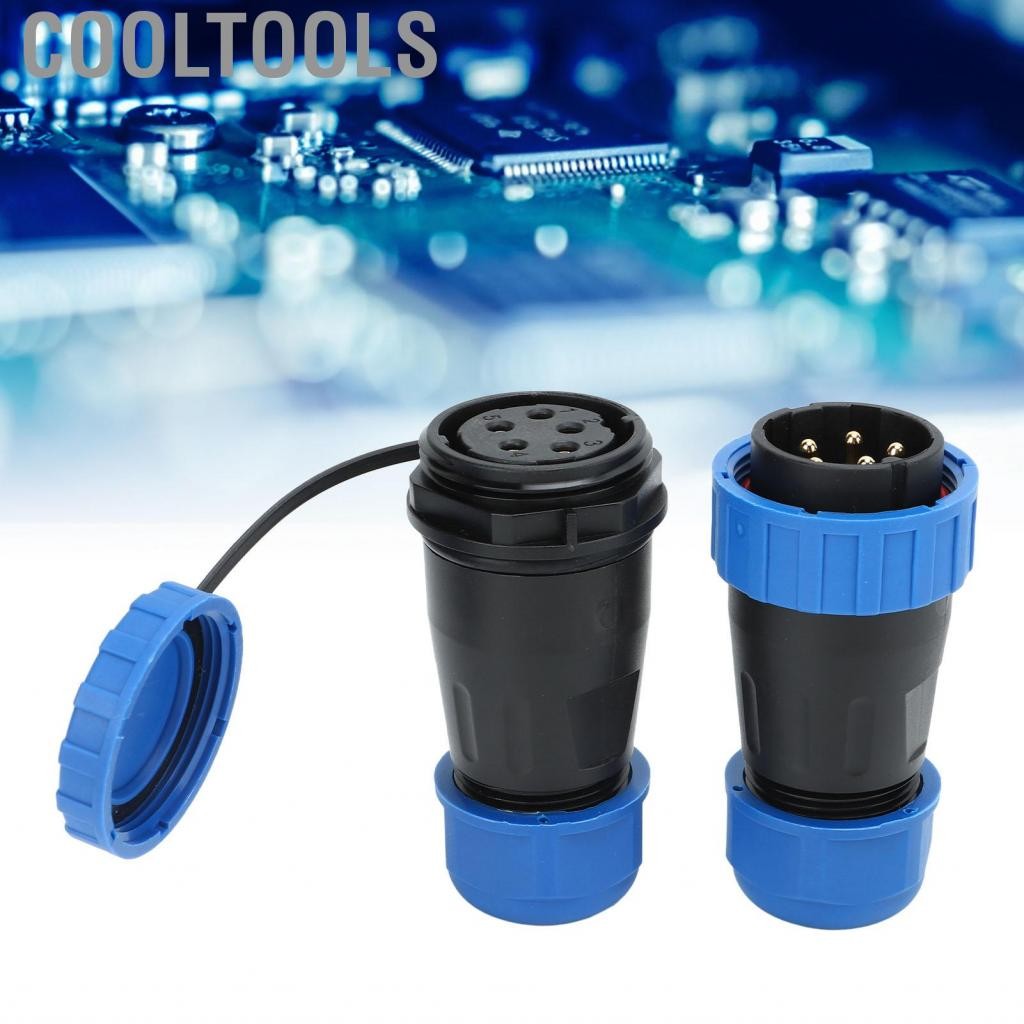

Cooltools Waterproof Plug Socket Connector Antioxidant Aviation Power Welding Free for Electronic Equipment

1. Characteristic: Professional manufacturing, 380V 45A plug and socket aviation power cable connector, multi core, IP68 waterproof.
2. Usage: Widely used in communication equipment, instrumentation, computers, program controlled machines, alarms and bridge electronic equipment, etc.
3. Solid and Durable Pins: Solid pins, pure copper gold plated, are resistant to plugging and unplugging, anti oxidation, has a long service life.
4. Welding Free Installation: Using screw crimping method, you only need a screwdriver (not included) to complete the installation, simple and quick.
5. Shell Material: The waterproof connector shell is made of PA66 materials, which have good flexibility, and will not crack due to low temperature.

Specification:
Item Type: Waterproof Plug Socket Connector
Material: PA66, PPS, silicone, copper
Usage: Widely used in communication equipment, instrumentation, computers, program controlled machines, alarms, etc. and bridge electronic equipment
Shell Material: PA66
Insulator: Thermoplastic PPS (High Temperature Resistance 220)
Contact Material: Copper (Gold Plated)
Wiring Method: Screw Crimping
Connection Method: Screw Connection
Head Size: Approx. 28mm / 1.1in
Insulation Resistance: 2000M
Applicable Cable: 10-15mm²
Applicable Current: 45A
Applicable Voltage: 380V
Connection Times: More Than 500 Times
Operating Temperature Range: -25 to 85
Sealing: Comply with IP68
Recommended Stripping Length: Approx. 9mm / 0.35in

Package List:
1 x Plug1 x Socket

Note:
Please supply power according to the voltage used, using other voltages may cause fire and product damage!
