DC 1000V 2P Solar Mini DC Circuit Breaker Battery Switch 6A 10A 16A 20A 25A 32A 40A 50A 63A DC M-

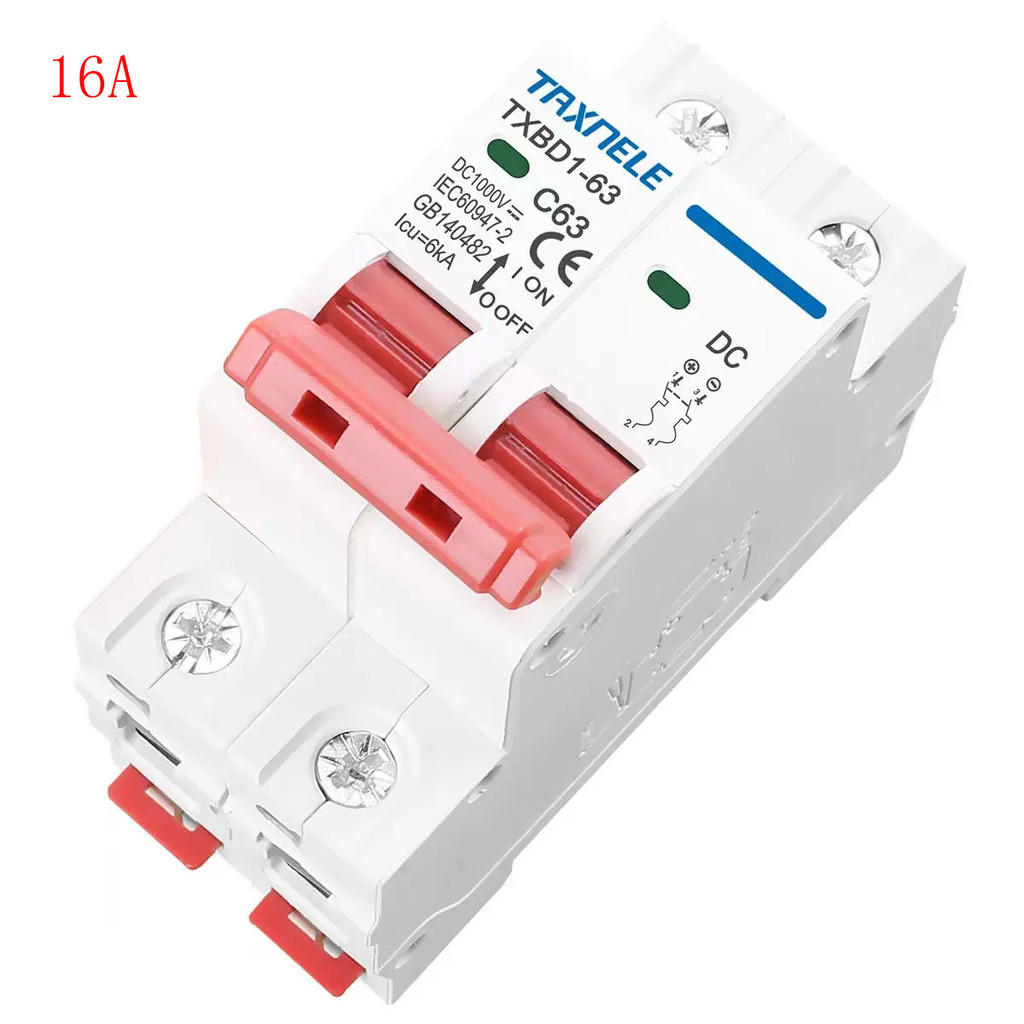

DC 1000V 2P Solar Mini DC Circuit Breaker Battery Switch 6A 10A 16A 20A 25A 32A 40A 50A 63A DC MCB for Photovoltaic PV System
Specifications:
Pole: 2P
Curve Type C
DC Circuit Breaker: TXBD1-63
Frame Degree Rated Current: 63A
Rated Operating Voltage: DC12-1000V
Rated Current In: 6A/10A/16A/20A/25A/32A/40A/50A/63A
Rated Insulation Voltage: Ui 1200VDC
Ultimate Breaking Capacity: lcu 6KA
Mechanical Life: 20000 times
Electric Life: 10000 times
Note:
1.Due to the light and screen difference, the item’s color may be slightly different from the pictures.
2.Please allow 1-3cm differences due to manual measurement.
Package Includes:
1x DC Circuit Breaker
