DC 5V Amplifier MP3 Decoder Board 2*3W Bluetooth 5.0 Music Player USB Module FM AUX Radio Hands

Product parameters:
Model: JQ-D130BT (with Bluetooth, power amplifier 2 * 3W)
Shell size: length 96 * width 22MM; Depth: 25MM
Function introduction: Bluetooth Call /Amplifier 2 * 3W/Dual decoding MP3, WMA, WAV, FLAC, APE format music/ U Disk / TF Card/ FM/ External audio input LINE IN/ Power Supply Voltage 5V;
Functions:
1. Dual decoding supports music in MP3/WMA/WAV/FLAC/APE formats;
2. Supports Bluetooth calling function;

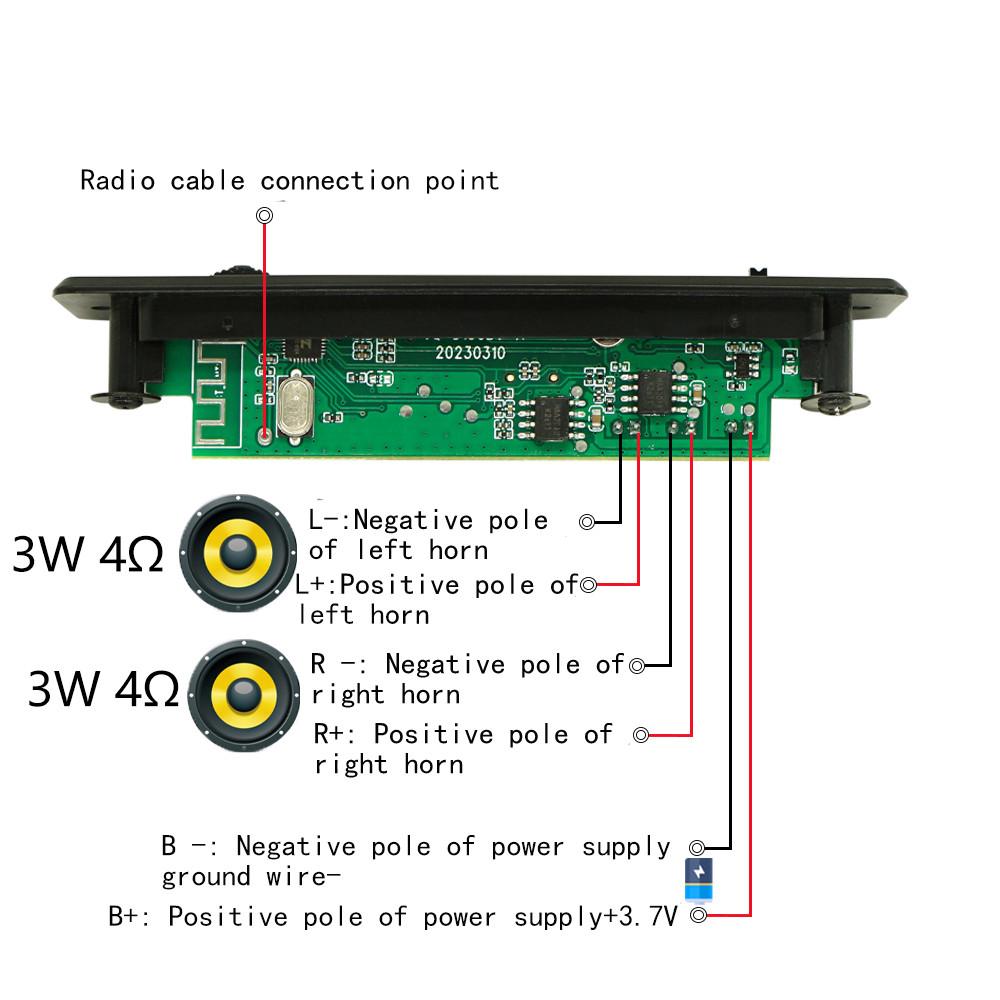

3. Equipped with a power amplifier of 2 * 3W, and capable of pulling two 3W speakers at the same time;
4. Supports TF card interface and USB interface (USB flash drive);
5. Support external audio input LINE IN;
6. Supports FM radio and retrieval frequency range (87.5MHz to 108.0MHz);
7. Key: Three button multi-directional control, VOL -/AUTO/VOL+;
8. With charging function;
Wheel switch operation:
VOL- :
Turn the volume down by turning it to the left without letting go;
In USB/CARD/FM/mode, one left dial indicates the previous song or FM previous radio station;
VOL+:
Move to the right and do not let go to increase the volume;
In USB/TF/FM mode, dial right once to select the next song or FM radio station;
SCAN :
In USB/CARD/AUX/FM mode, short press once to pause and play; In the FM mode, short press to automatically receive and coexist with the FM radio station;
MODE :
Long press: Mode Switch : Bluetooth-TF Card-USB Disk-FM-AUX in;
