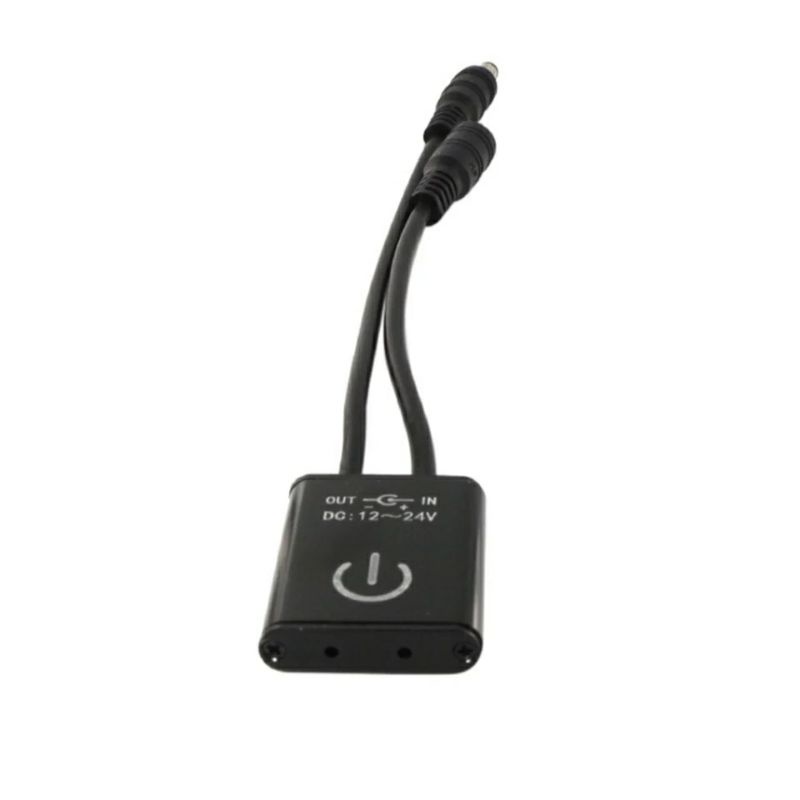

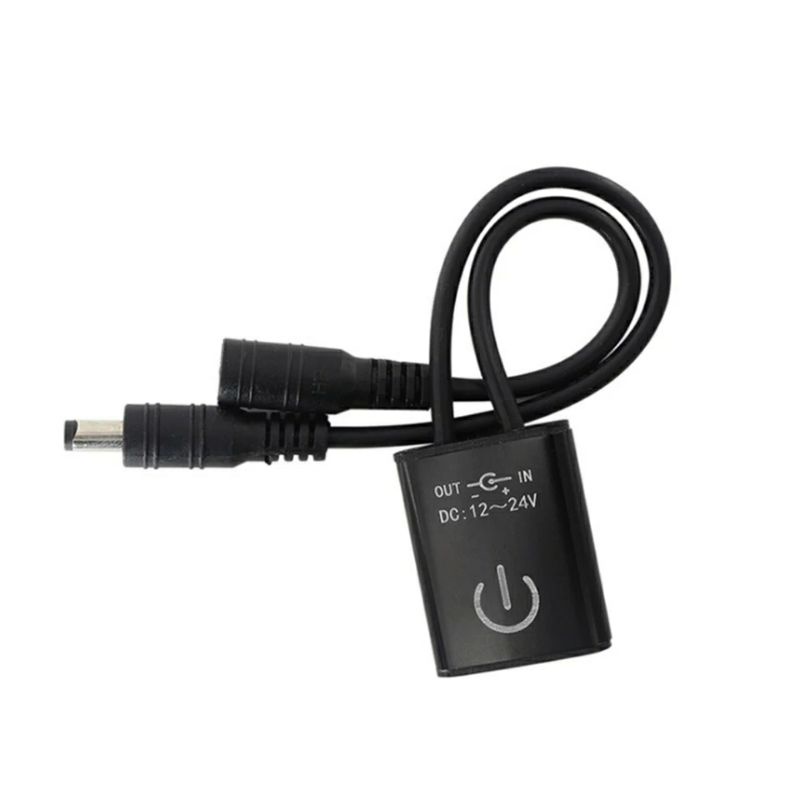

Hand waving switch sensor 12v, 24v no touch on/off

Infrared Shop Touch Switch Close To Using 1-Way Electricity 12V-24V DC Turn On The Light

– Is – is a switch used to turn on and off electrical equipment with conventional electrical switches, we have to press directly to turn on / off the light, but with the touch switch waving our hands, we just need to put it. Hands or objects via touch button to turn on/off electrical equipment

+ The actual application of the waving touch switch is usually used to turn on / off the lights in the kitchen cabinet, wardrobe: when we make the kitchen hands often wet if the power switches are turned on. Usually very susceptible to moisture, leading to electric shock, so apply the touch switch to wave hands to turn on and off the lights in the kitchen cabinet to help our hands not have to go to the switch. Electricity avoids the risk of electric shock…..vvv

+ You see the mechanism of operation of the switch in the chip included in the product photo section

Specification:

Input voltage: DC 12V and 24V

Actual load capacity:

+ Maximum load capacity 36W with DC12V. power supply

+ Maximum load capacity 72W with DC 24V power supply

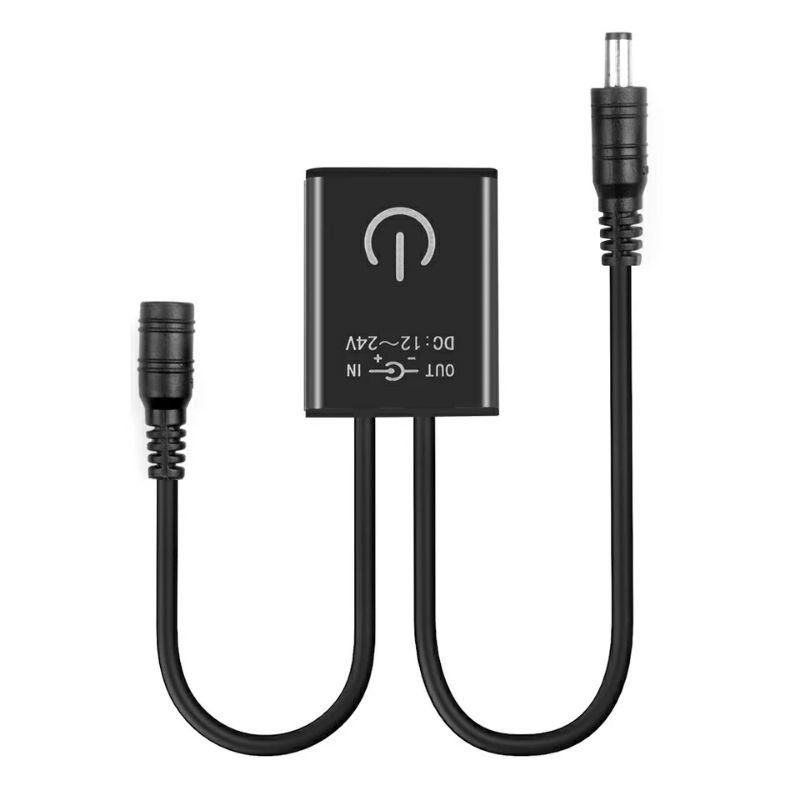

Plug: OD5.5 ID2.1mm, input current length is 140mm, output current length is 180mm

Touch distance: 3cm -15cm

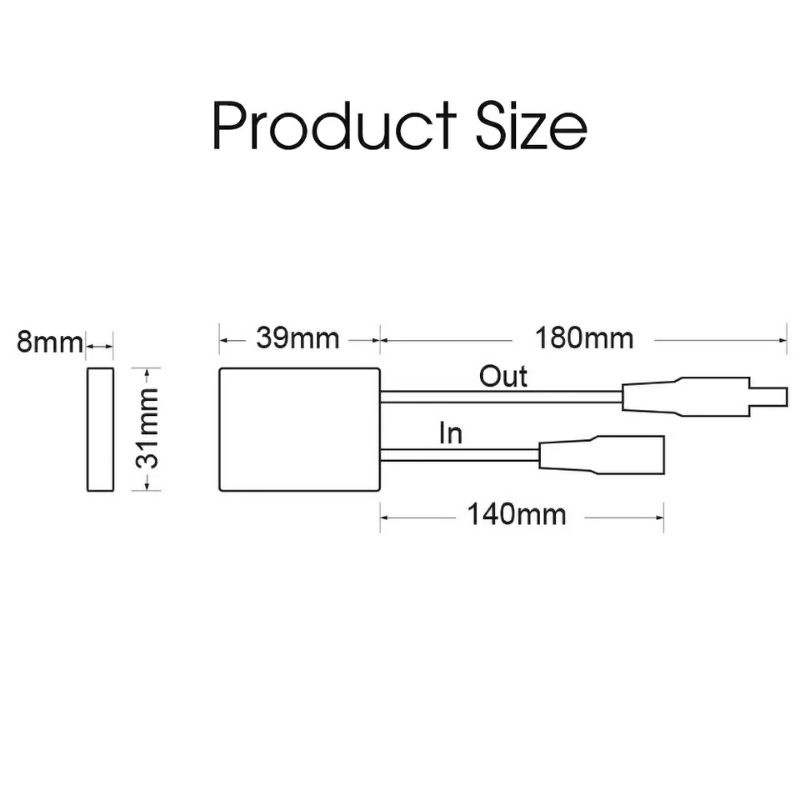

Dimensions: 39×31 x 8 mm

Weight: 28g

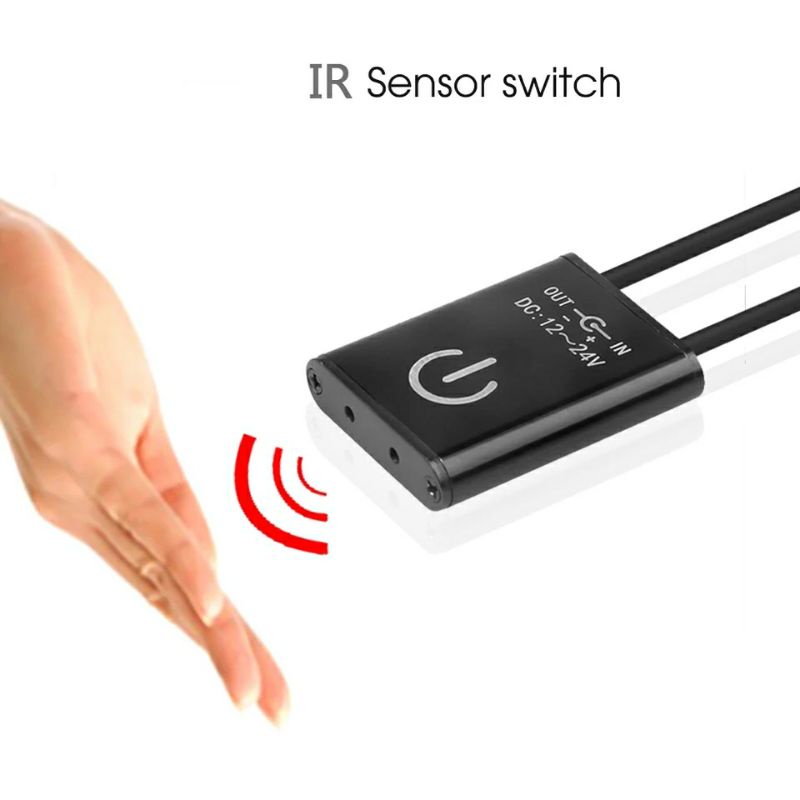

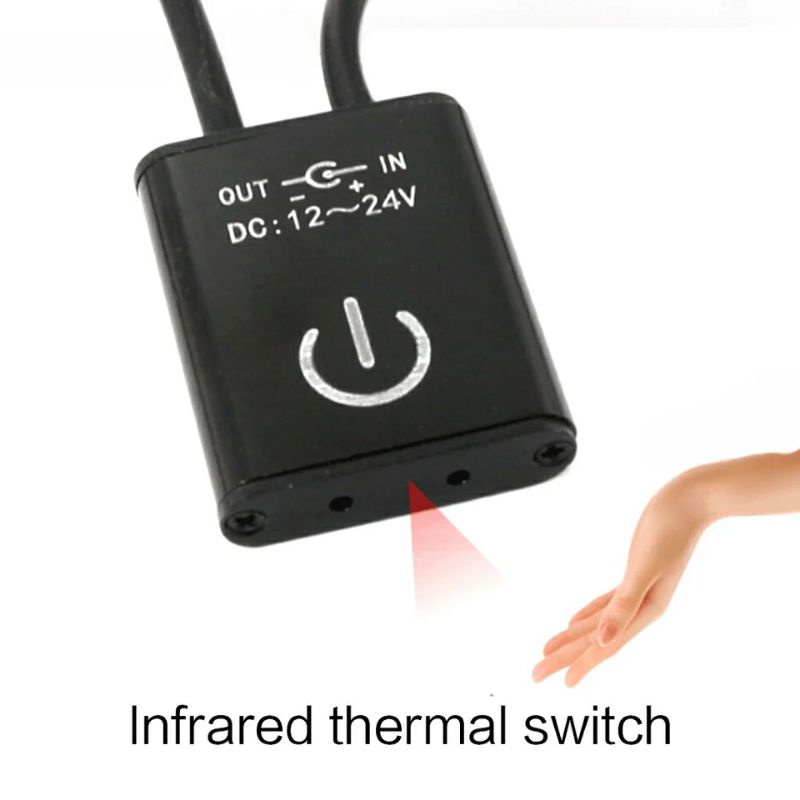

7 Application: Control the light on/off by waving through the sensor from a distance of 3cm-15CM.
