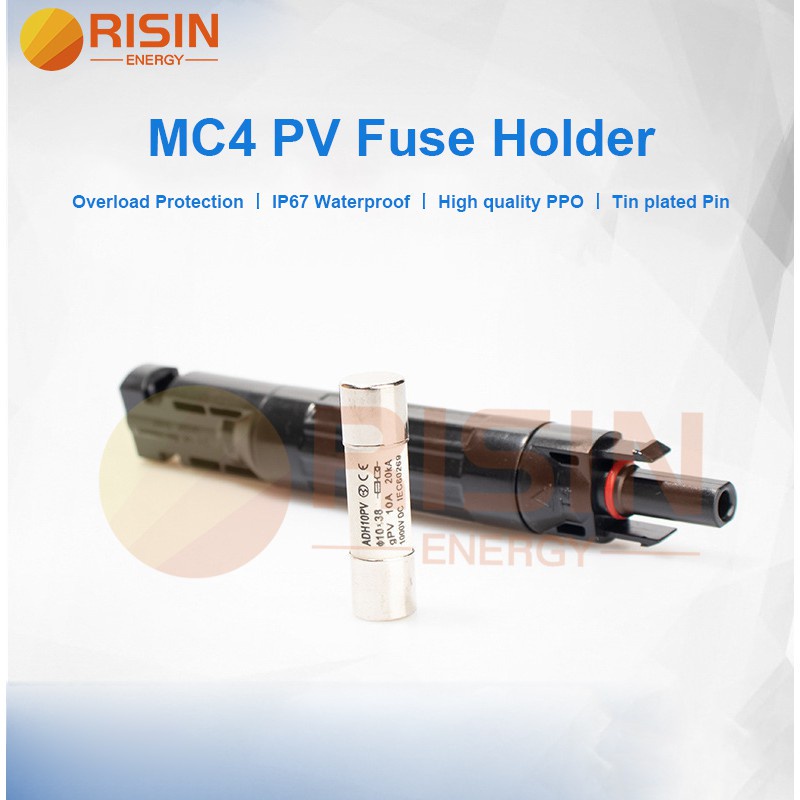

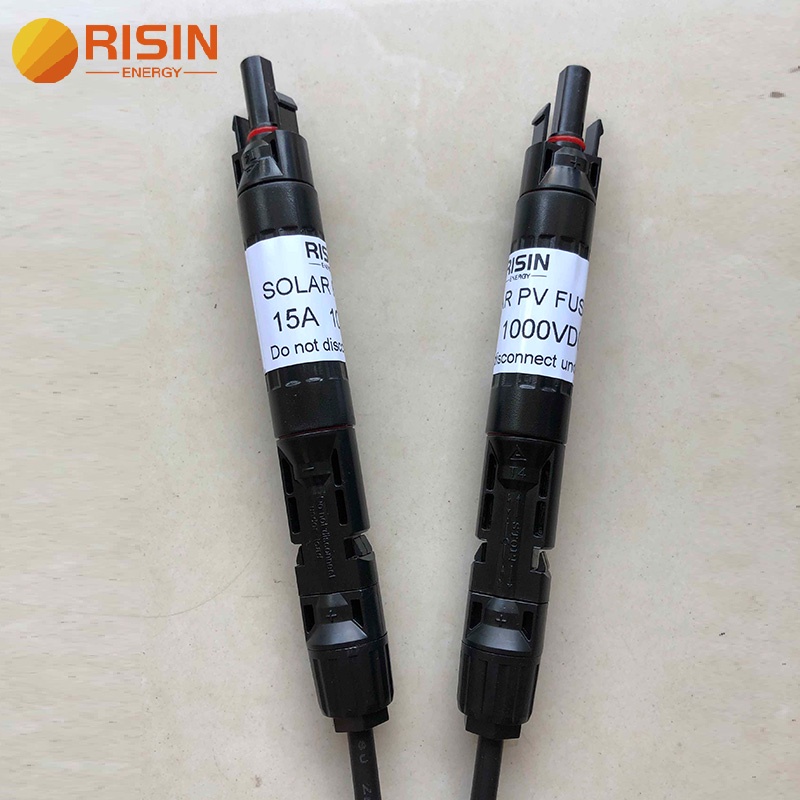

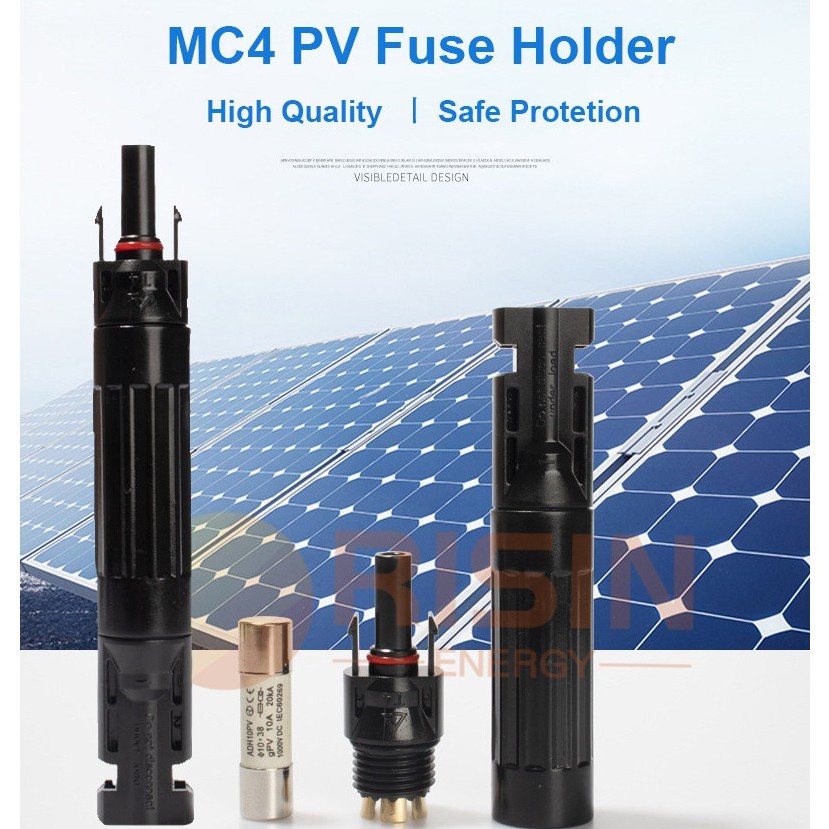

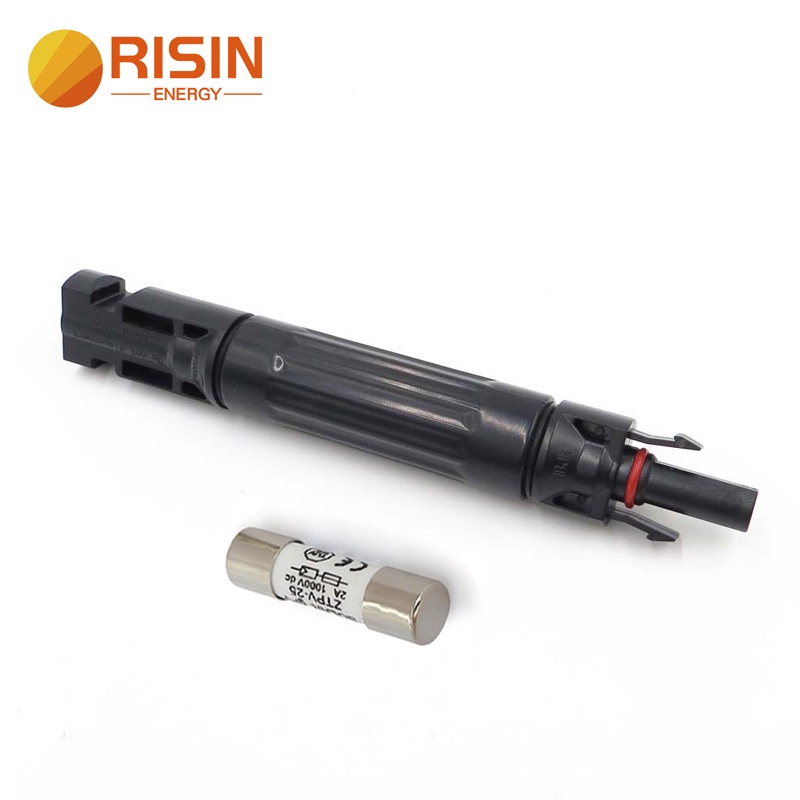

High Standard Risin Solar Fuse 10A 15A 20A 30A TUV 1000V Solar PV MC4 Compatible DC Fuse inside Waterproof Holder Protection

Description :
High Standard Risin Solar Fuse 10A 15A 20A 30A TUV 1000V Solar PV MC4 Compatible DC Fuse inside Waterproof Holder Protection embedded into a waterproof fuse holder. It features an MC4 connector lead on each end, making it compatible for use with an Adaptor Kit and solar panel leads. MC4 Fuse Holder is designed to provide complete single circuit protection to your solar power array. The fuses prevent large currents from damaging the solar panels. Advantage is the inline fuse can be replaced,quickly and reliable connection,UV resistance and IP67 waterproof,can be working outdoor for 25years.

Pls purchase MC4 Fuse Holder 30A for extra protection in your solar system.

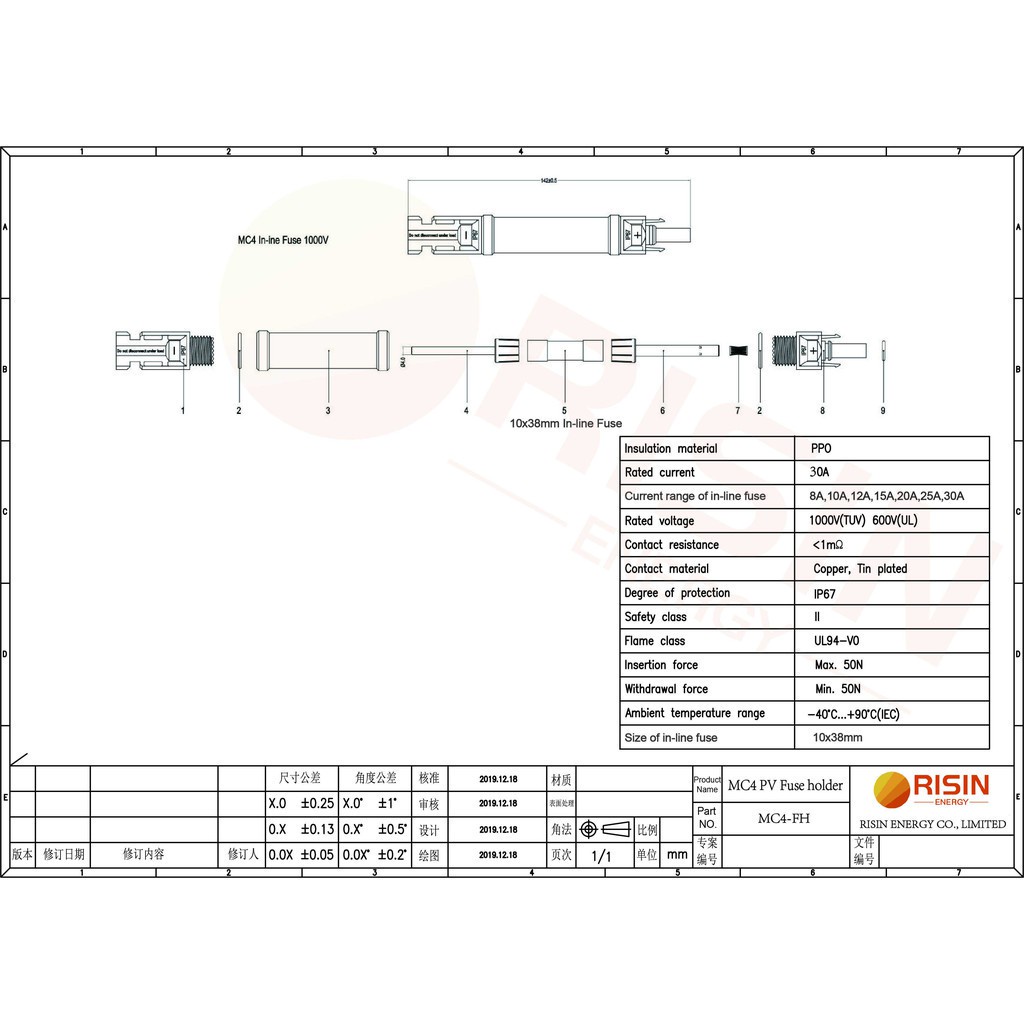

Technical Data :
– Type : MC4 Compatible, fuse replaceable
– Rated Voltage : 1000V DC
– Rated Current : 30A
– Inline Fuse Size : 10x38mm

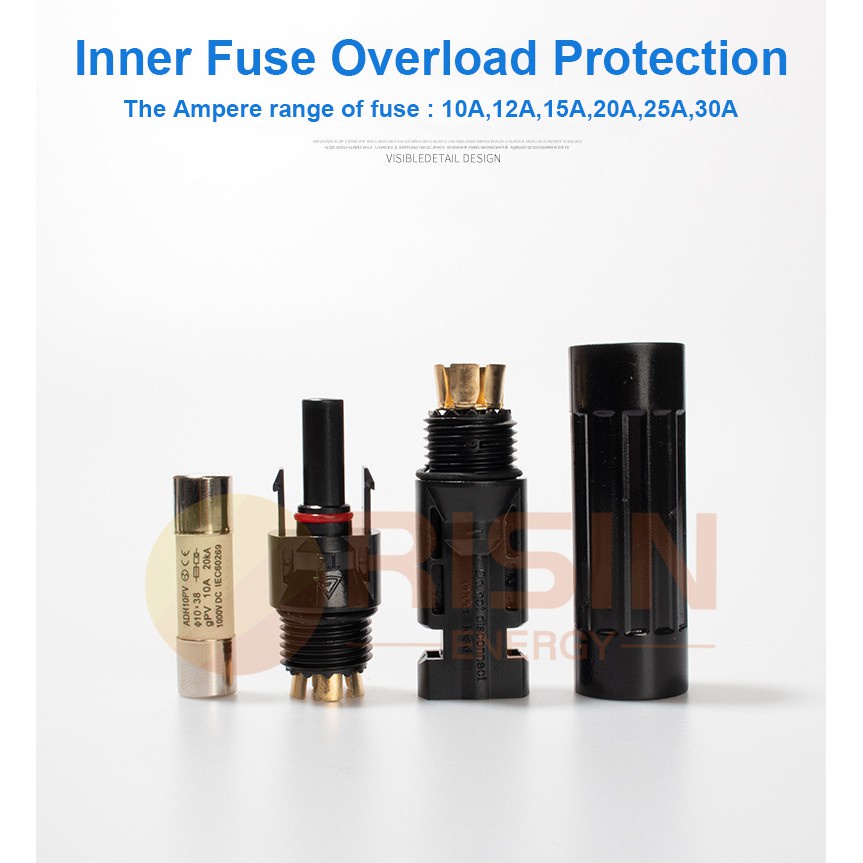

– Fuse Range : 6A,8A,10A,12A,15A,20A,25A,30A
– Contact Material : Copper, Tin plated

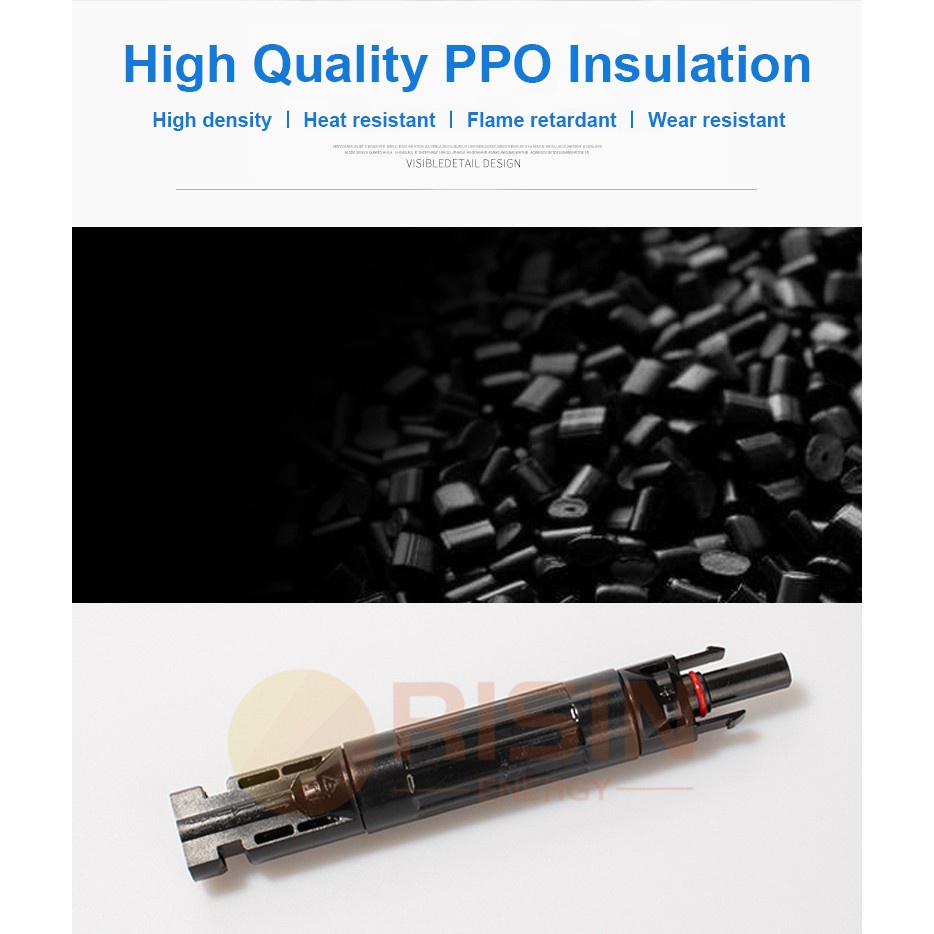

– Insulation Material : PPO

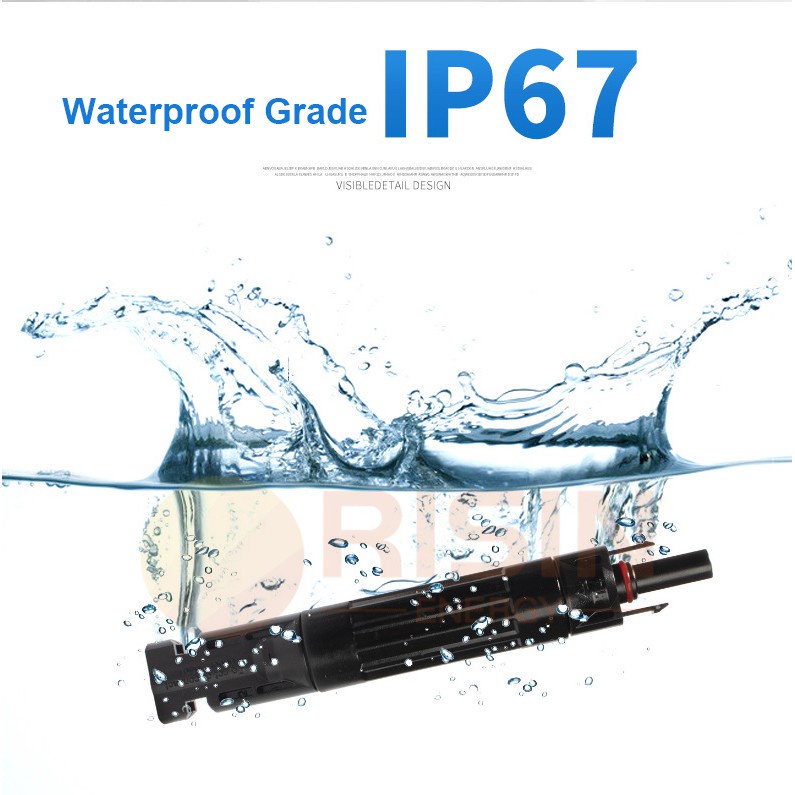

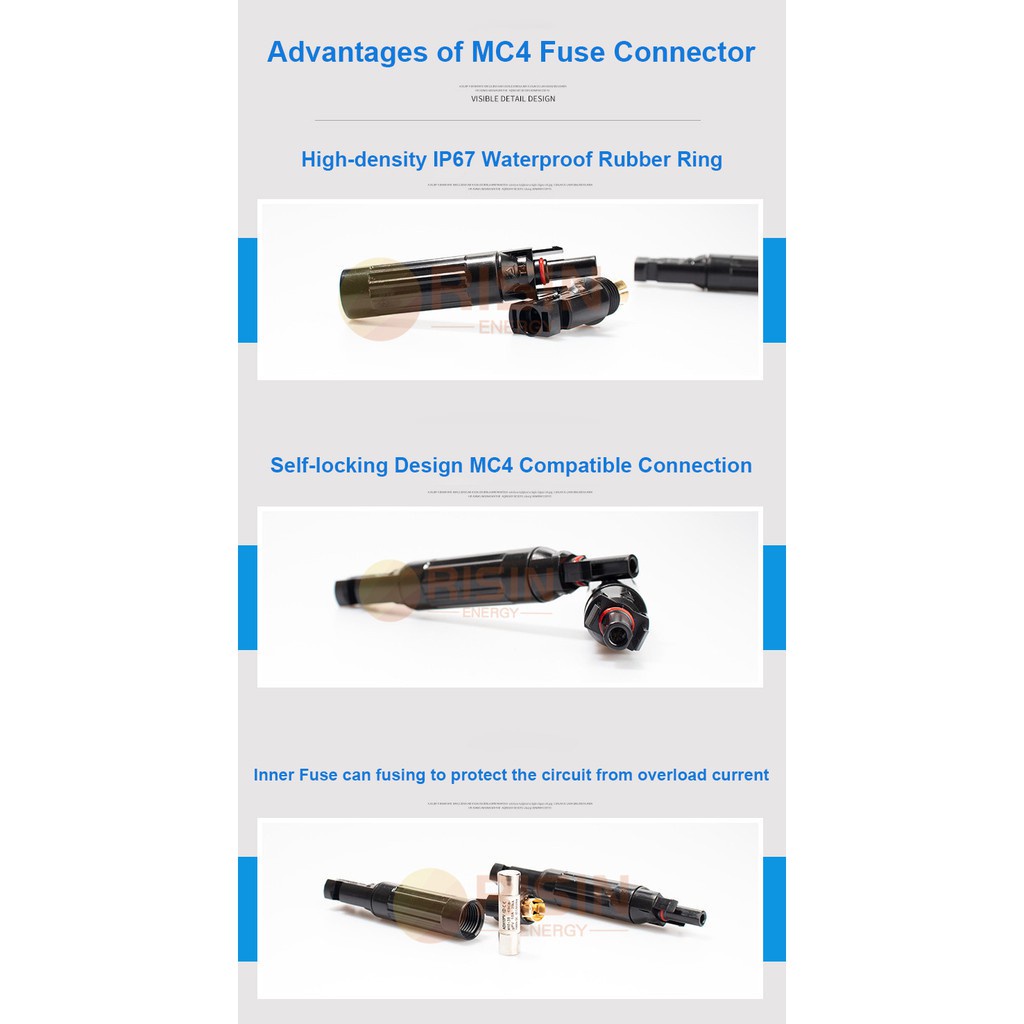

– Contact Resistance : <1m - Waterproof Protection : IP67 - Ambient Temperature : -40~100 - Suitable Cable : 2.5/4/6mm2 (14/12/10AWG) - Certificate : TUV, CE, ROHS, ISO Advantage : Easy to Use - Compatible with PV cables with different insulation diameters. - Designed for a wide range of DC applications. - Simple plug and play. - Auto-lock equipment of male and female points render connections easy and reliable. Safe Protection - Waterproof – IP67 Class Protection. - Insulation material PPO. - High current-carrying capacity - Protection Class II - Connector adopts touch and insertion of reed with inner-knob type What's in the package : 1set of MC4 Fuse Holder & Inline Fuse Why Choosing Risin - 12 Years experience in solar factory - 30 Minutes to reply after received message - 25 Years Warranty for MC4 Connector, PV Cable - No compromise on quality
