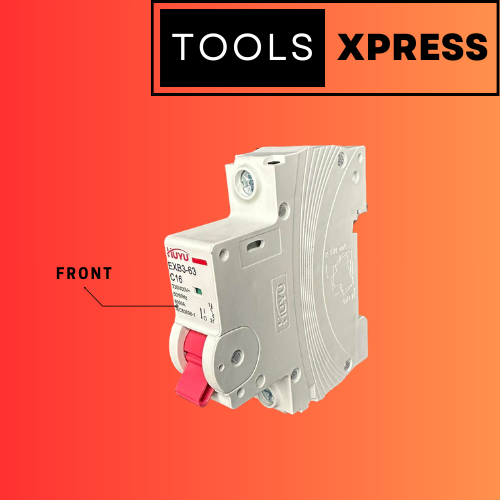

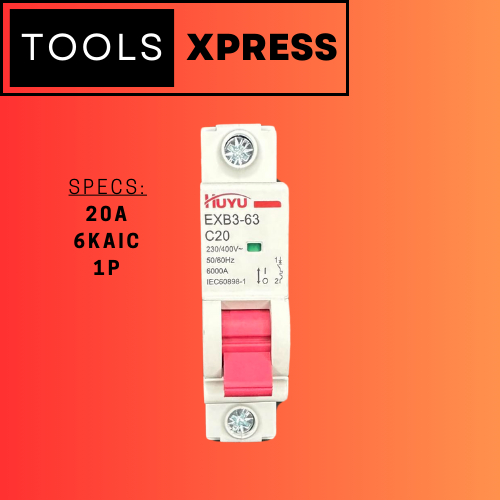

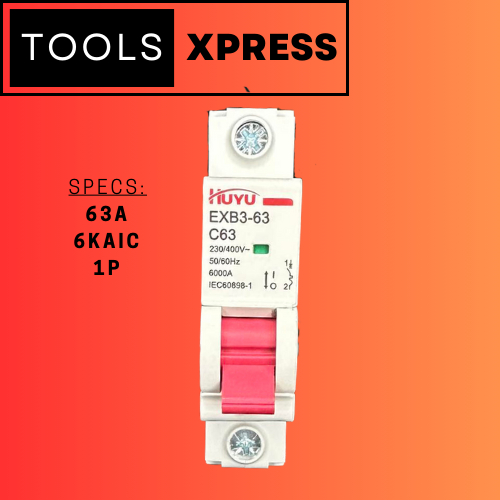

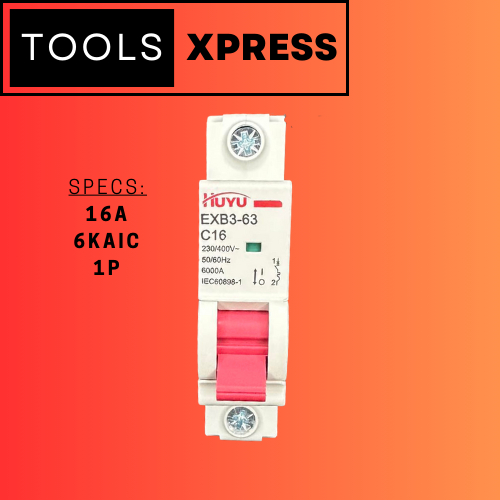

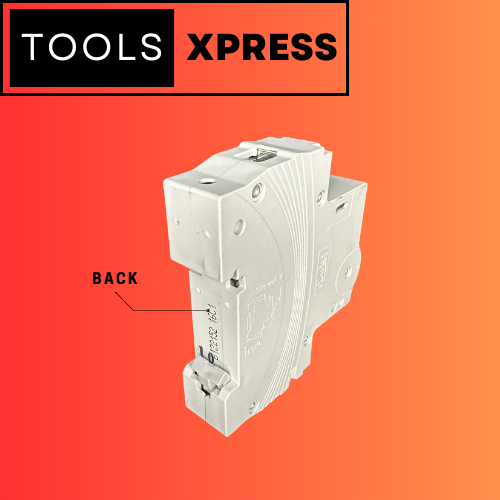

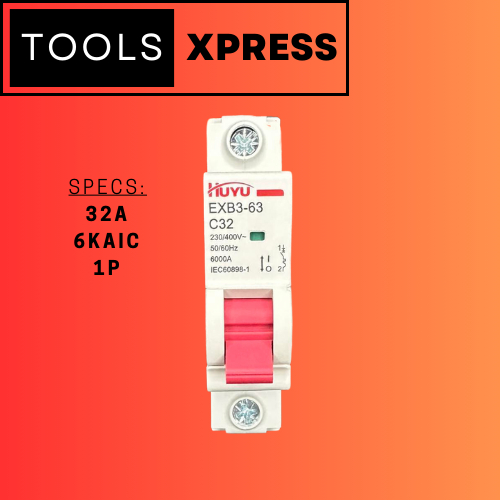

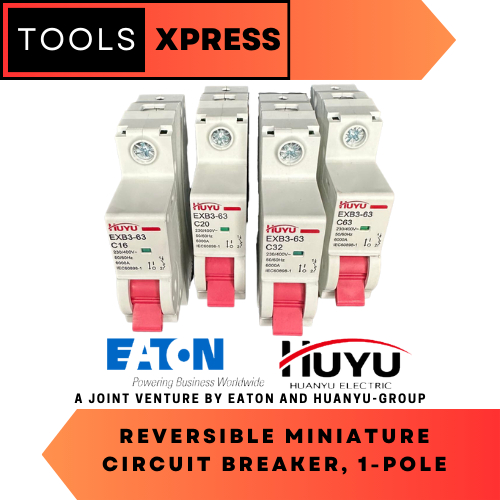

Huyu Miniature Circuit Breaker Reversible (MCB) 1 Pole

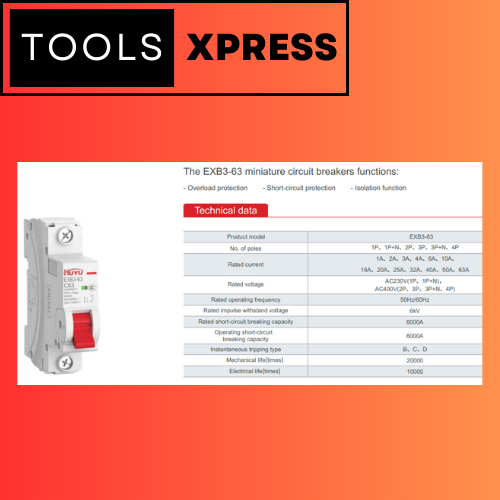

Type: EXB3-63
Reversible MCB
No. of Poles: 1P1P+N2P3P3P+N4P
Rated Current: 1A2A3A4A6A10A16A20A25A32A40A50A63A
Rated Voltage: AC230V(1P1P+N)AC400V(2P3P3P+N4P)
Rated Operating Frequency: 50Hz/60Hz
Rated Impulse Withstand Voltage: 6kV
Rated short-circuit breaking capacity: 6000A
Operational short-circuit: 6000A
Instantaneous tripping type: BCD
Mechanical life: 20000 operations
Electrical life: 10000 operations

Normal working conditions
1. The upper limit of ambient air temperature shall not exceed +70°C, the lower limit shall not be lower than -35°C, and the average-value VI within 24 hours shall not exceed +35°C. The reference temperature of the circuit breaker is +30. When the ambient temperature changes, its rated current value needs to be corrected.
2. The altitude of the installation location shall not exceed 2,000 m.
3. The relative atmospheric humidity does not exceed 50% when the ambient air temperature is +40°C, and a higher relative humidity is allowed at a lower temperature. The average maximum relative humidity in the wettest month is 90%, and the average maximum temperature in this month is +25°C. Measures shall be taken to deal with the occasional condensation due to temperature changes.
4. Contamination grade: Grade 3.
5. The installation category: Grade II and III.
6. Install this MCB with TH35-7.5 standard rail.
7. This MCB shall generally be installed vertically, and when the handle is upward, the power is on.
8. The installation place shall have no significant shaking and impact vibration.
9. For products with N pole, when wiring, the neutral wire must be connected to the pole marked with N pole.
10. The circuit breaker shall not be dropped or attacked by rain during use, storage and transportation.
