Jaguar 3 Jaw Hydraulic Gear Puller Separator Bearing Hub

Jaguar Hardware

100% Legit Products
COD AND NATIONWIDE SHIPPING AVAILABLE
ITEM IS CHECKED BEFORE SHIPPING
SATISFACTION GUARANTEED

Feature:
1. Equipped with 3 pull jaws, which can be adjusted from high to low, and can perform two or three jaw pull according to different needs.
2. Long operating handle makes great leverage to produce great pulling force with ease.
3. The safety flooding valve control on the pump body is to avoid oil pressure overload.
4. Pump can rotate 360 degree for easy operation, can quickly contact the center of work according to the distance between the puller and the center of position after rotation.
5. Made of heavy duty forged steel, this hydraulic puller is strong and durable, with good bearing capacity and long service life.
6. Suitable for pulling hub, flange, gear and bearing.

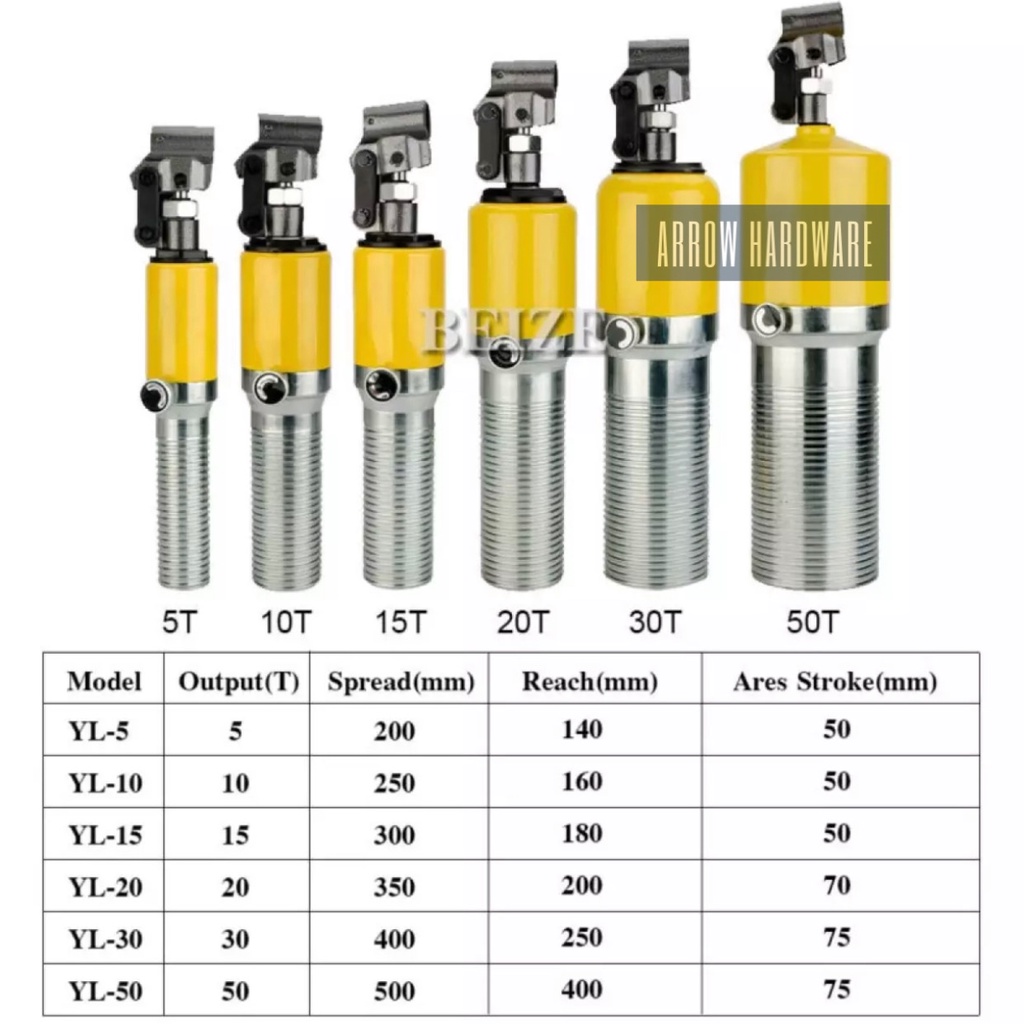

Model: YL-5T
Work Ability: 5T
Horizontal Maximum Pull Distance: 200mm
Vertical Maximum Pull Distance: 140mm
Stroke: 50mm

Max Capacity: 10T
Min/Max Reach: 0 – 150mm
Min/Max Spread: 100 – 240mm

Max. Bearing Capacity: 15 Ton
Ares Travel: 50mm/1.97”
Max. Reach: 180mm/7.08”
Max. Spread: 300mm/11.8”
