JIKONG JK BMS 3S 4S 5S 6S 7S 8S Smart BMS With RS485 BT Heat CAN 12V 24V 1A-2A Active Balance BMS for Li-ion Lifepo4 Lto Battery Balance Board 100A-300A
Specifiions:
Size: 153*136*18mm
Li-ion Strings: 3s~8s
Lifepo4 Strings: 4s~8s
LTO Strings: 6~8s
Balanced way: Active equalization
Active equalization current: 1A
Internal ance0.3m
Rated discharge current200A
Maximum discharge current350A
Overcurrent protectionAdjustable:10-200A
Wiring method: Common port
Monomer voltage range: 1V-5V
Voltage acquisition accuracy: 5mV
Battery cell Over-charge protection voltage :1.2V-4.35VAdjustable
Battery cell Over-charge protection recovery voltage: 1.2V-4.35VAdjustable
Over Current Detect Delay: 2-120S Adjustable
Battery cell Over-discharge protection voltage: 1.2V-4.35VAdjustable
Battery cell Over-discharge protection recovery voltage : 1.2V-4.35VAdjustable
Quantity of temperature detection: 3 PCS
Note: You can connect the GPS Interface for RS485 Function,thank you.
Use Manual
1.Download app and manual
2.Harare connection
3.Startup
4.Open the app and connect the device
5.Set the number of strings and battery type
6.Che the battery status
Download k-IOS: Se (JIKONG BMS) in the APP STORE
Download k-Andriod : Se (JK BMS) in the Google STORE
Instructions:
BMS protocol:

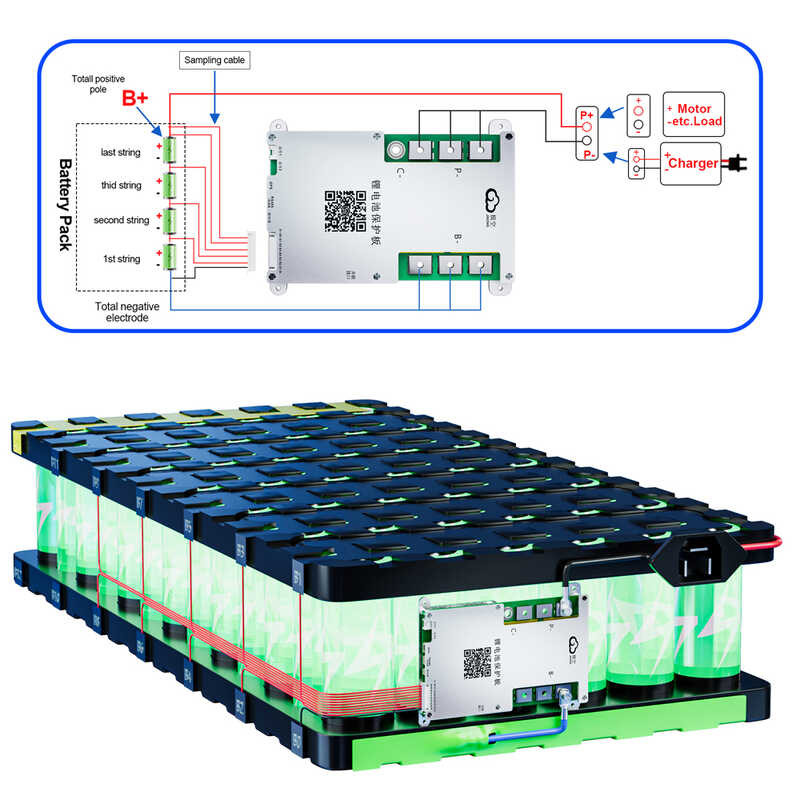

(1) Connect the protection board and battery pa according to the following wiring diagram,Make sure that the last power cord is also Connected to the main positive pole,The total voltage of the battery pa must be greater than 20V(Default BMS)/10V(4S BMS) before tarting up.
(2) Use the display button or additional switch to activate the BMS.

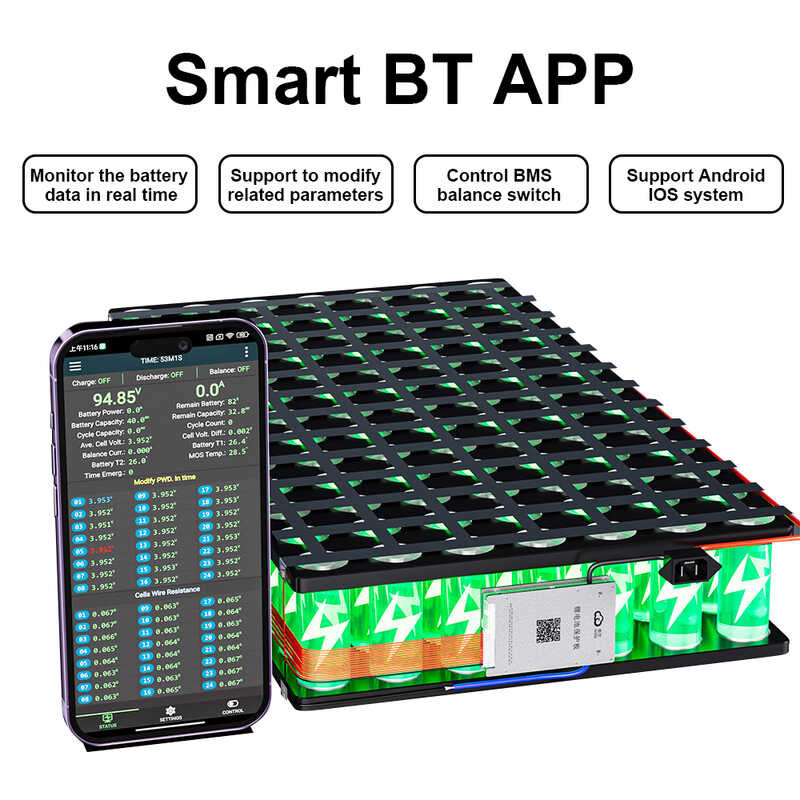

(3) Turn on GPS and Bluetooth on your mobile one.
(4) Make sure your mobile Bluetooth is turned on, then turn on APP cli on the top left corner oPP to se for devices, and cli on the device name to connect to the default pas: 1234.
(5) Parameters need to be set for the first start-up Setting requires a pas, The default parameter is set to pas 123456,Simply set the number of uni and battery type.
(6) Once the parameters are set, go ba to the real-time status page, che the battery status, no error message is prompted and normal ,blue is the highest voltage, red is the lowest voltage.
Interface Function Description:

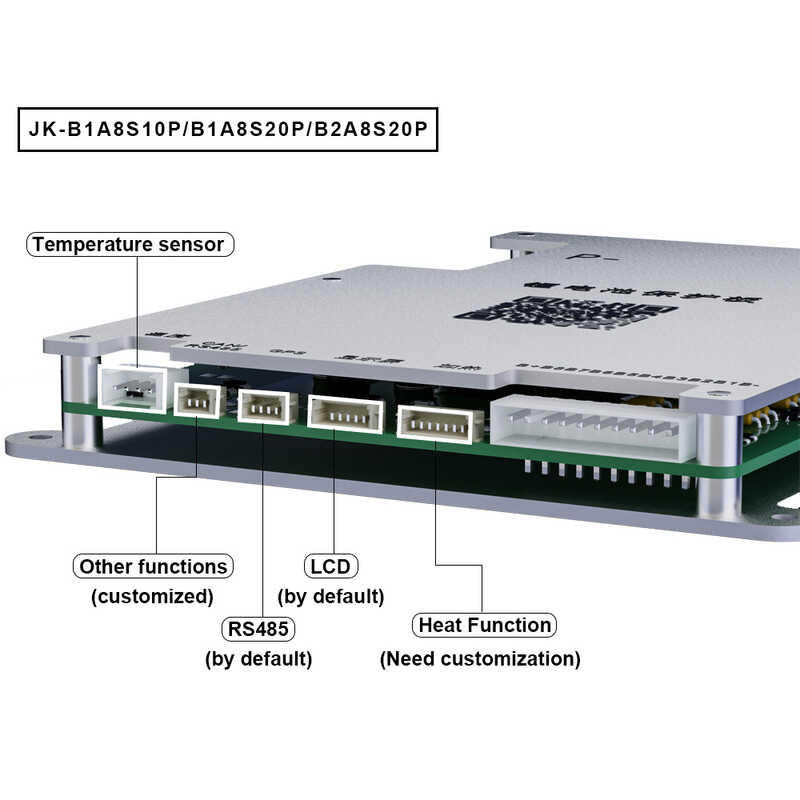

1. Temperature sensor interface: All models of JKBMS are equipped with
2. RS485 interface: All models of JK BMS are configured with
3. LCD interface: All models of JK BMS are equipped with
4. CAN interface: Only configurations withCANin the model
5. Heating interface: Only configured withHeat in the model
Heating function description:
1. The heating function is achieved by detect the battery temperature,combined with low temperature protection during charging,the status of the charger to achieve electricity Pool heating control function.
2. Not all BMSs port the connection heating function, only BMSs with Heat in their models port the connection heating function
3. The heating interface requires an external heating film or charger.
The green cable
