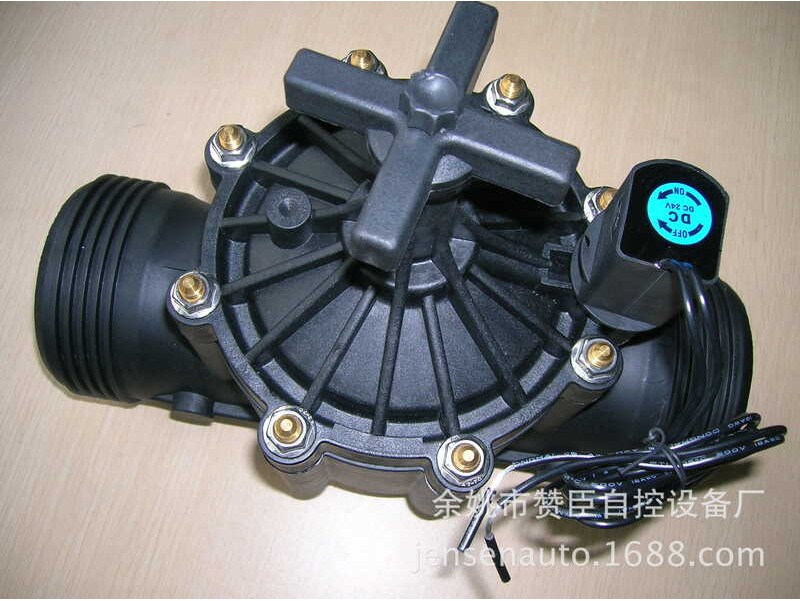

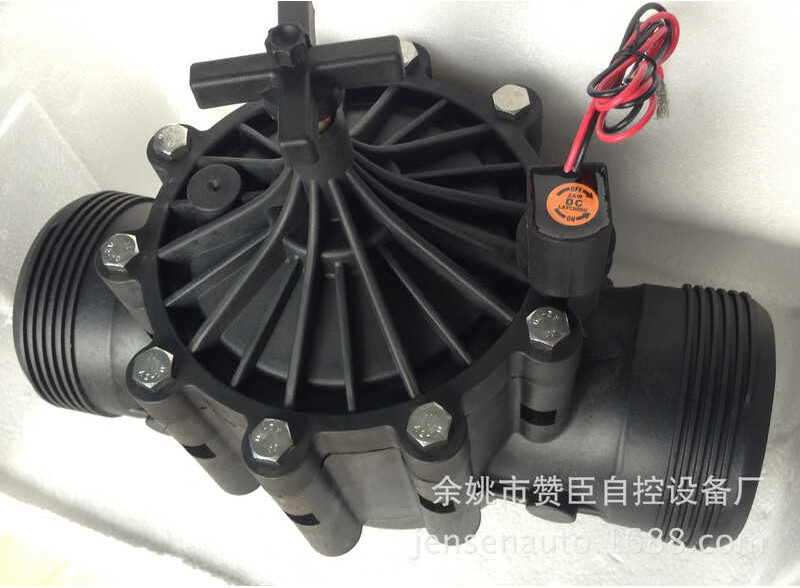

Large Scale Farmland Planting Intelligent Automatic Control Solenoid Valve 3-Inch Dn80 A6f

Zanchen irrigation solenoid valve is mainly used for greenhouse, large lawn, sports field, agriculture, industrial and mining dust removal

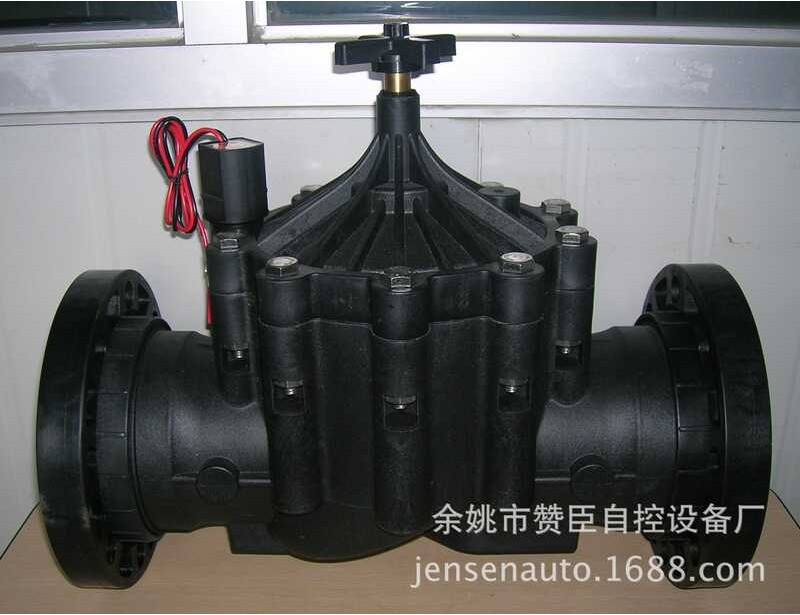

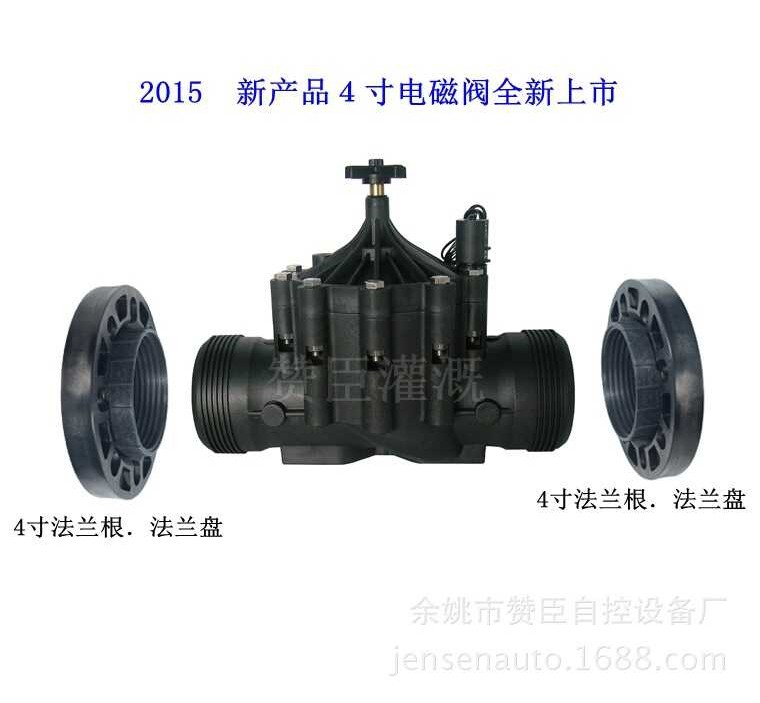

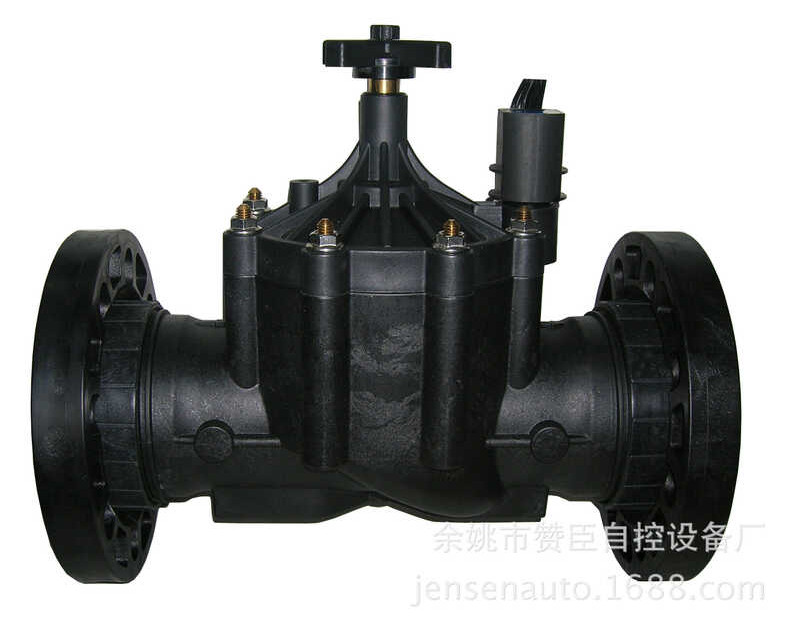

A 3-inch solenoid valve with matching flange has been installed, making installation more convenient and faster
Pressure regulation:
Electric or manual operation
Downstream pressure range: 35-700KPa or 35-210KPa
The difference between upstream water pressure and downstream pressure should be maintained at 70KPa
Work performance parameters:
Flow range: 1.14-72m3
Pressure range: 70-1400KPa
Electrical parameters
Electromagnetic coil power supply
DC24V
Optional DC AC or DC pulse DCMatching electromagnetic coil
AC24V : Starting current
0.41A(9.8VA),60Hz
Holding current
