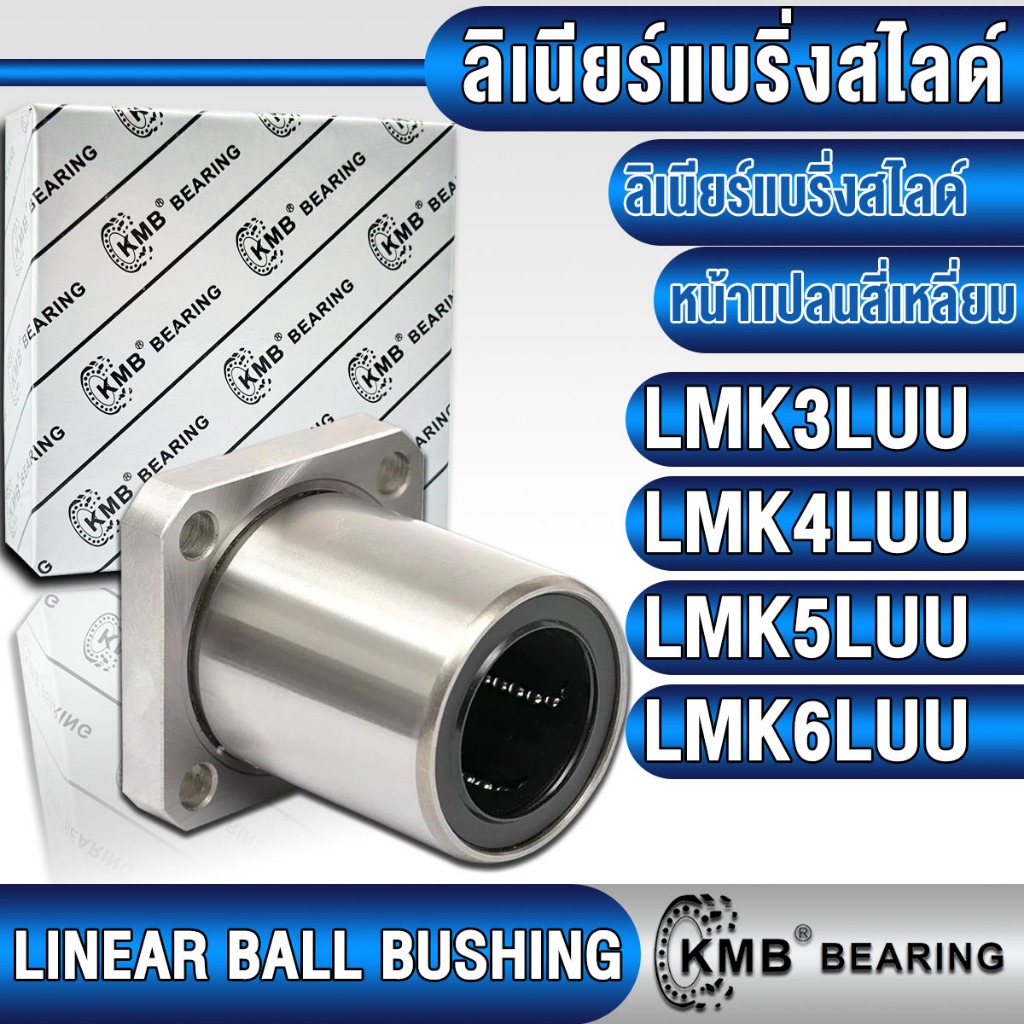

LMK3LUU LMK4LUU LMK5LUU LMK6LUU KMB LINEAR Slide Bearing Linier BUSHING Long Type (LINEAR BALL BUSHING)

If you want Tax invoice or bill You can inform and send details via the store’s chat channel.
The shop will attach a tax invoice or bill along with the product.

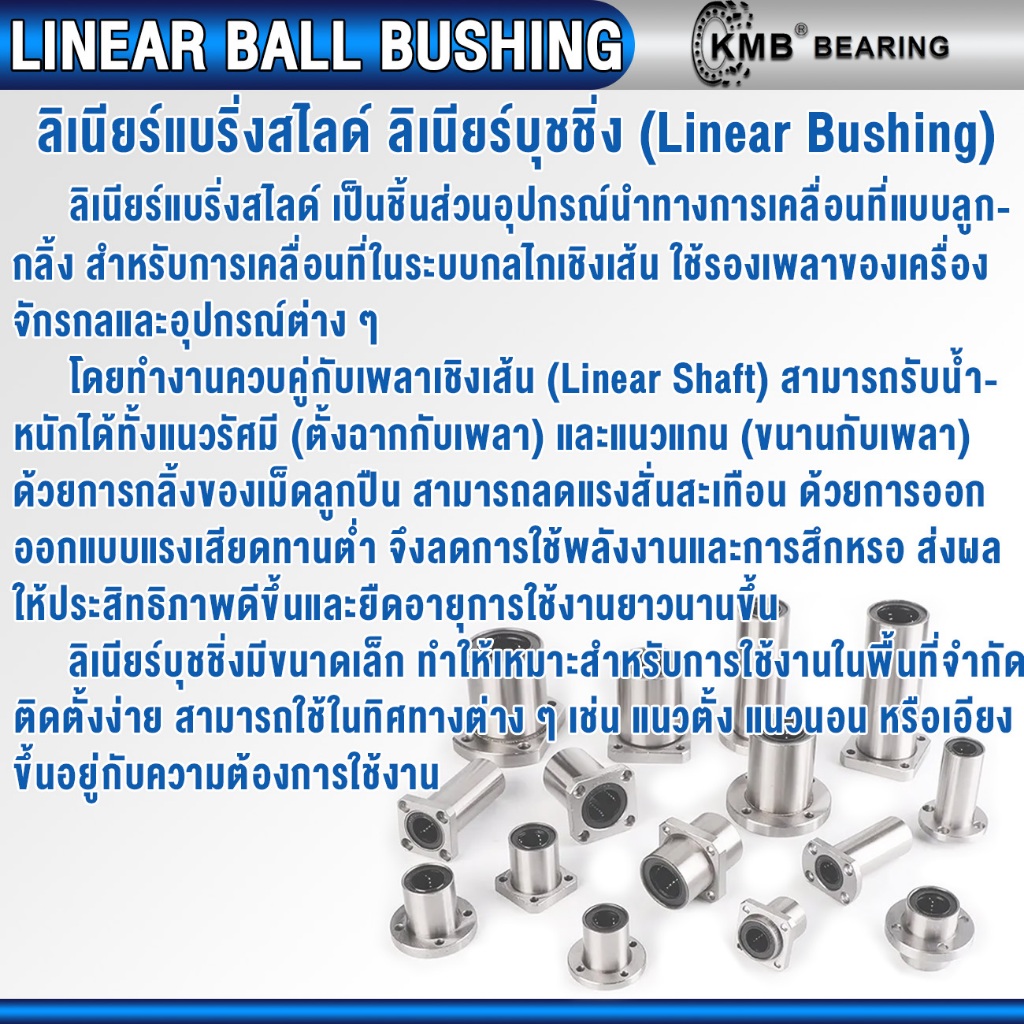

Linear BALL BUSHING
Linear Bearing Slide LINEAR BUSHING (LINEAR BUSHING)
Long body for general industrial applications

Lmk3luu – Dimensions: D = 3 D = 7 L = 19 D1 = 16 K = 14 H = 3 mm

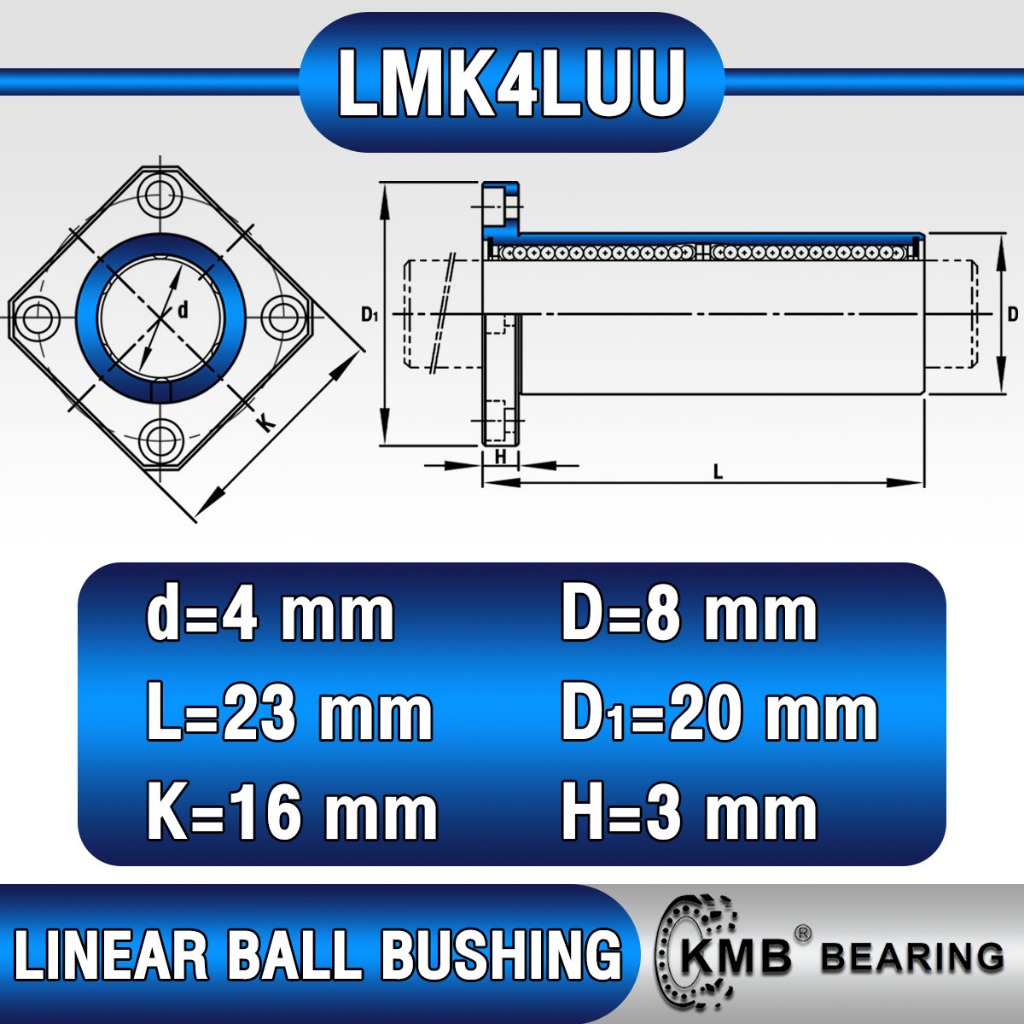

Lmk4luu – Dimensions: D = 4 D = 8 L = 23 D1 = 20 K = 16 H = 3 mm
Lmk5luu – Dimensions: D = 5 D = 10 L = 29 D1 = 24 K = 18 H = 3 mm

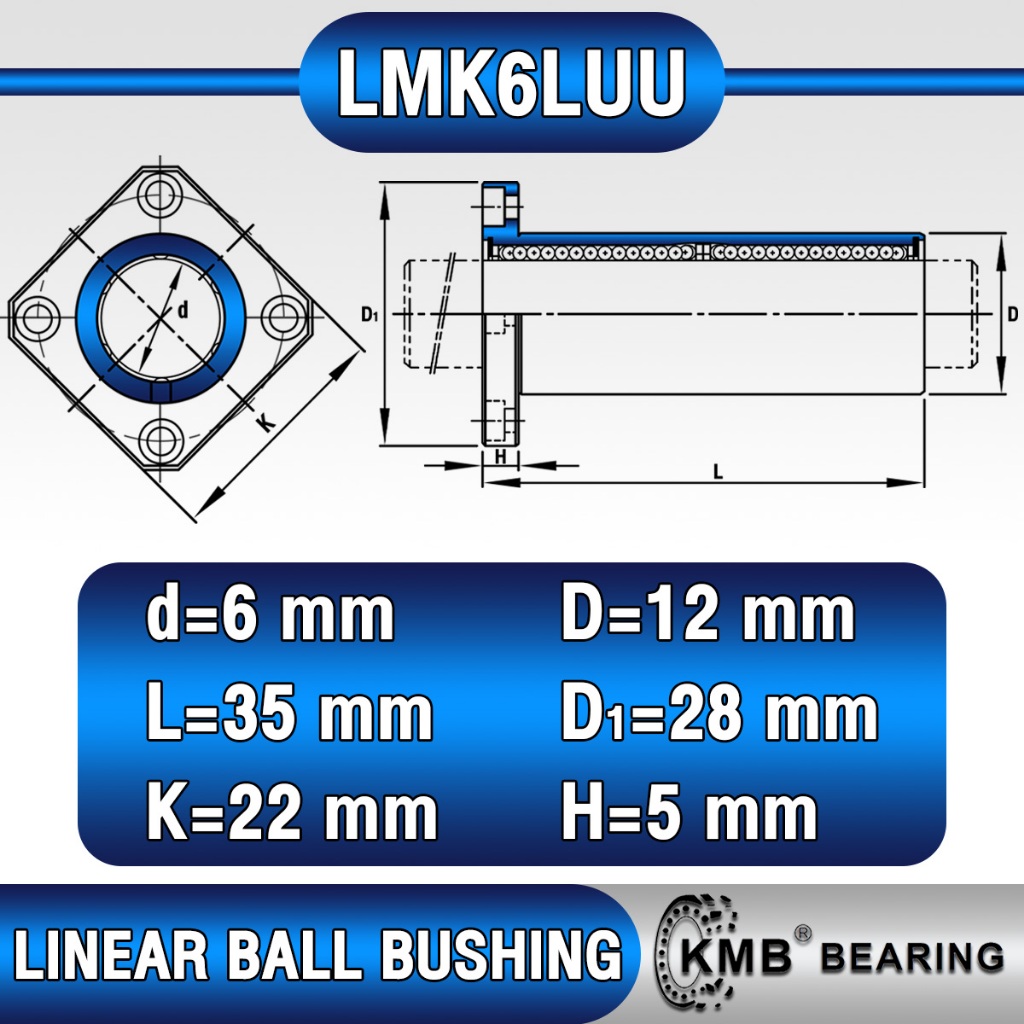

Lmk6luu – Dimensions: D = 6 D = 12 L = 35 D1 = 28 K = 22 H = 5 mm
Brand KMB
