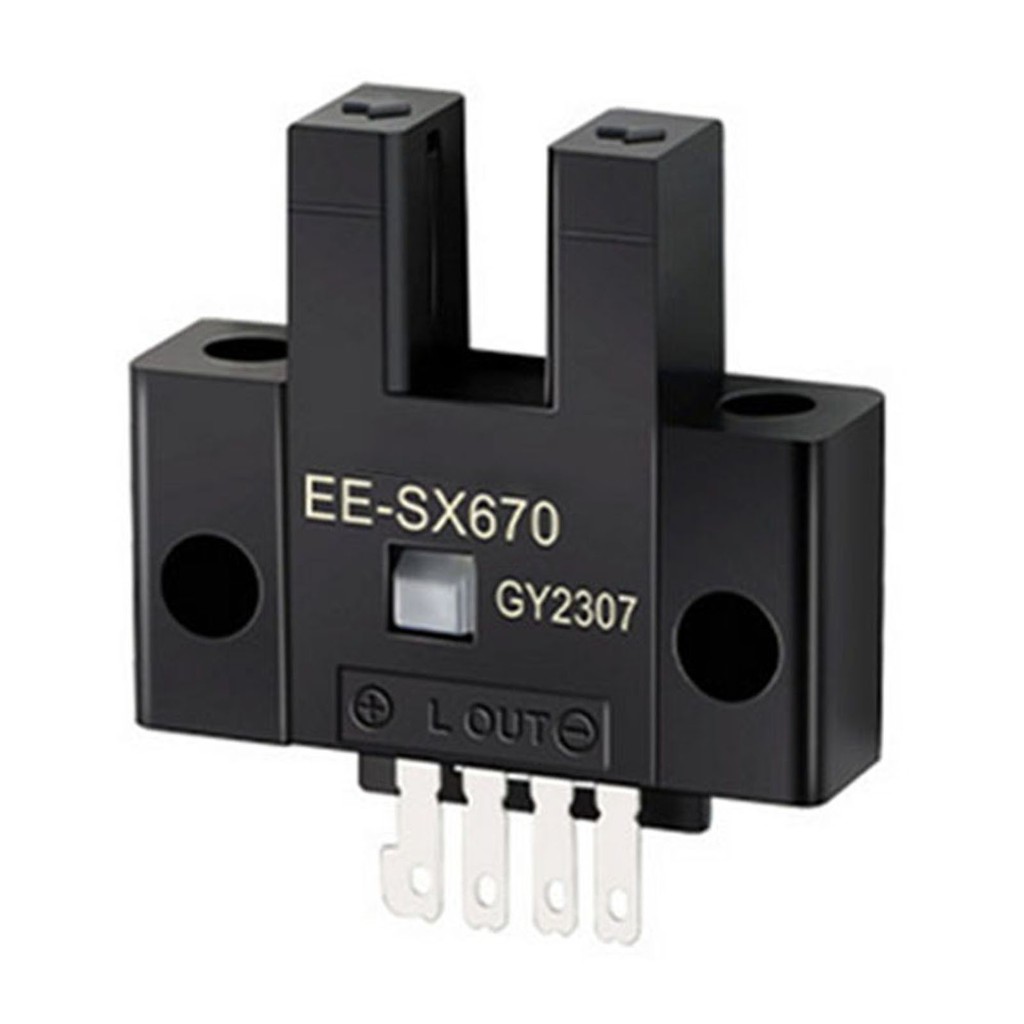

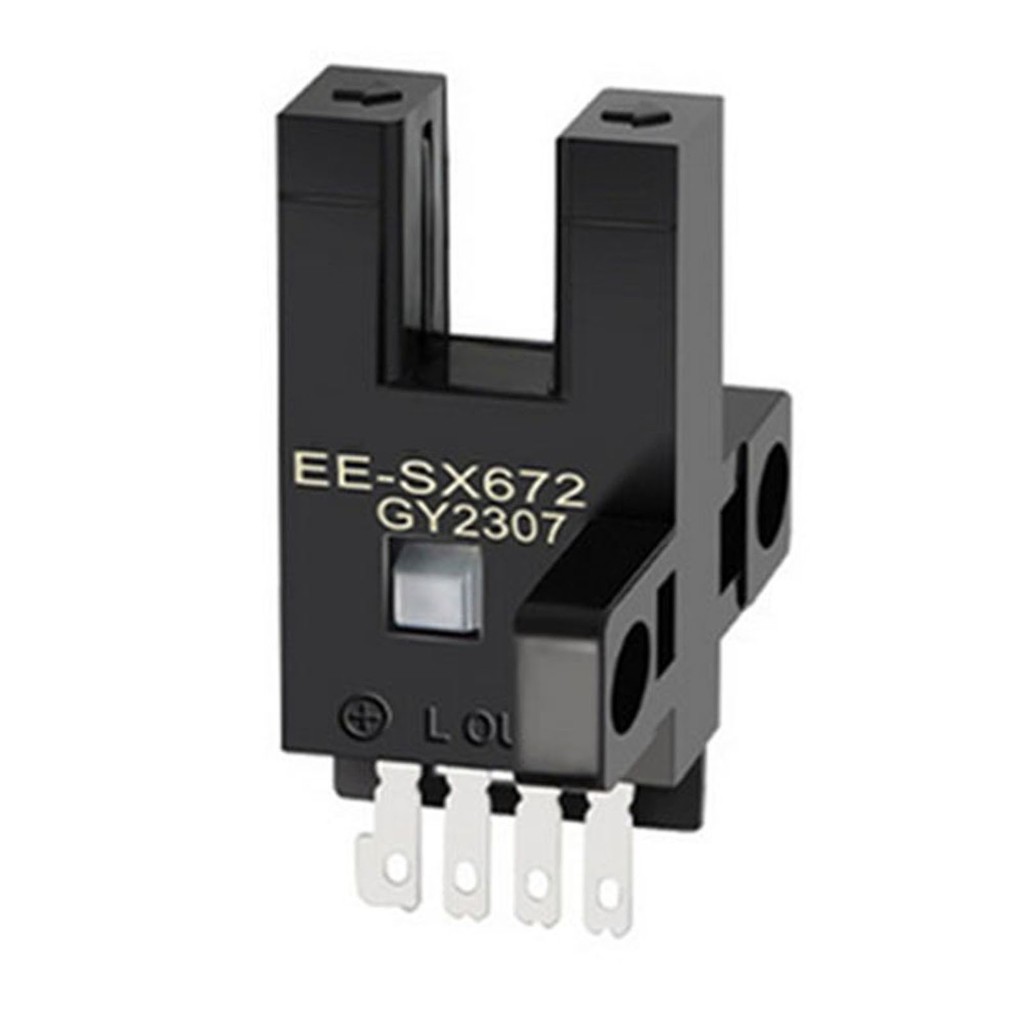

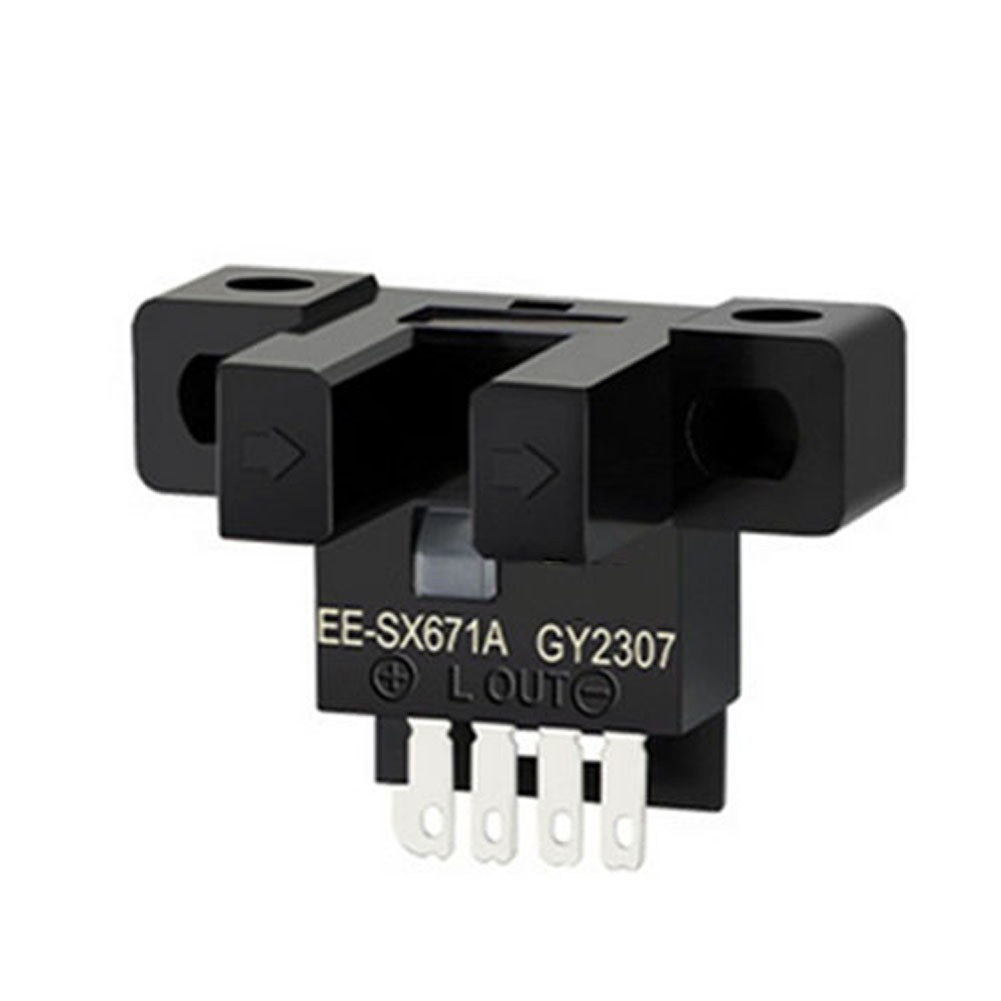

[MR]Slot Type Switch Printing Industry Shielding Layer Corrosion Resistant

Feature:
* slot photoelectric switch, EE-SX full series detection distance: 5MM
*ABS overall structure: can block dust intrusion, is lasting and corrosion-resistant, protects internal electronic components, and greatly reduces equipment failure rate
*High-quality components, accurate detection: stable performance, easy to face various working environments, sensitive sensing
*Multiple protections, stable performance: short circuit protection, overload protection, reverse polarity protection, the product itself while protecting the equipment from damage
*Internal shielding layer: excellent anti-interference ability, anti-electromagnetic and frequency converter interference, more stable performance
*Widely used in conveying equipment, machinery industry, elevator industry, printing industry, etc.

Specification:
Part Name: Trough type photoelectric switch
Material: plastic
Color: black

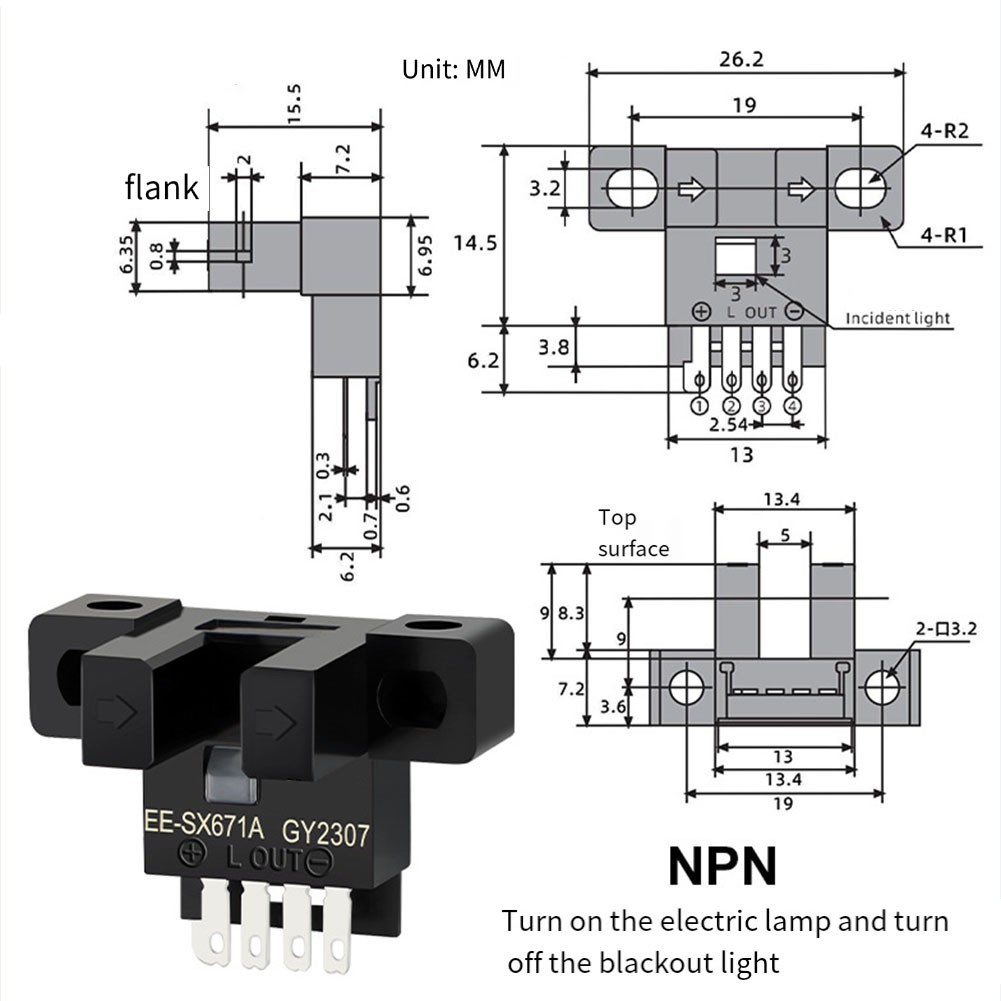

Size: as show

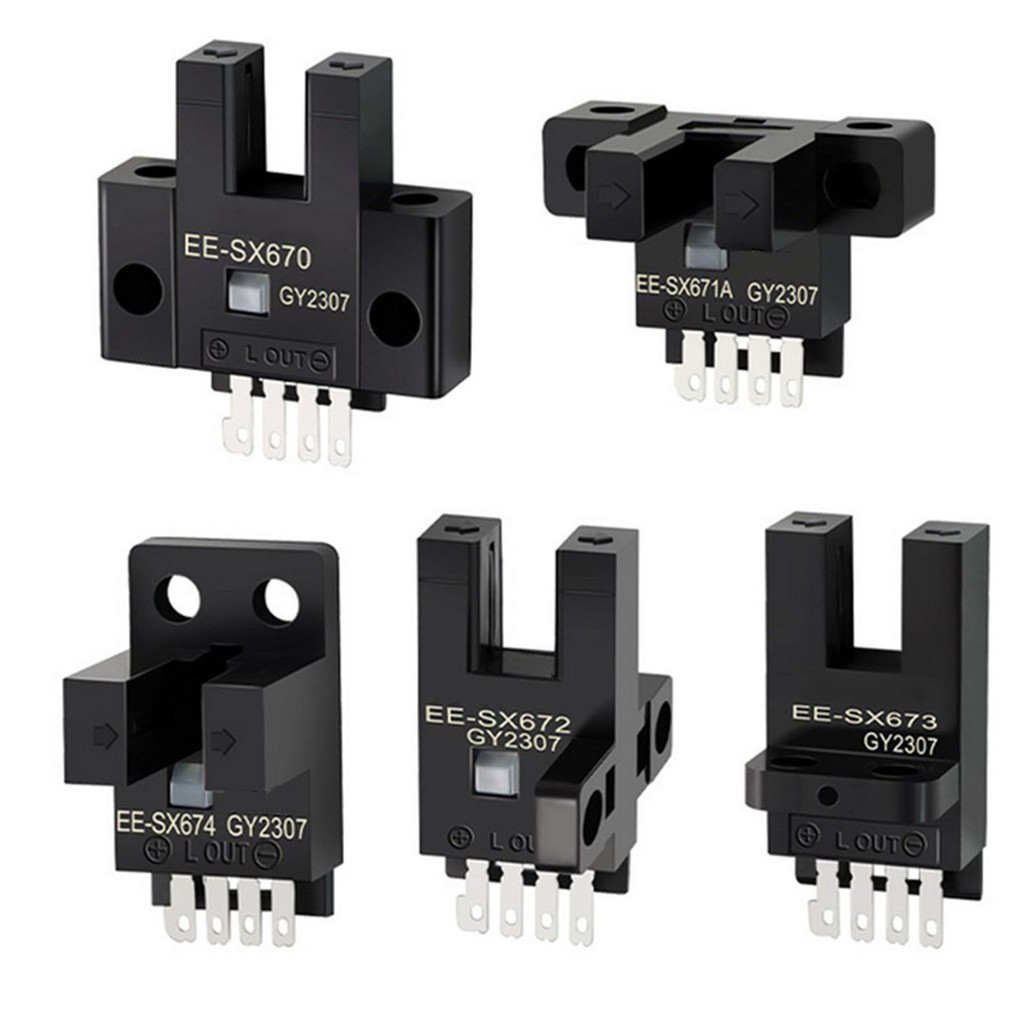

Product model: EE-SX series
Connection : plug-in type
Detection distance: 5MM (groove width)
Response frequency: above 1KIZ
Detection object: 2*0.8MM or above opaque objects
Power supply voltage: DC5~24V
Current consumption: 15mA or less

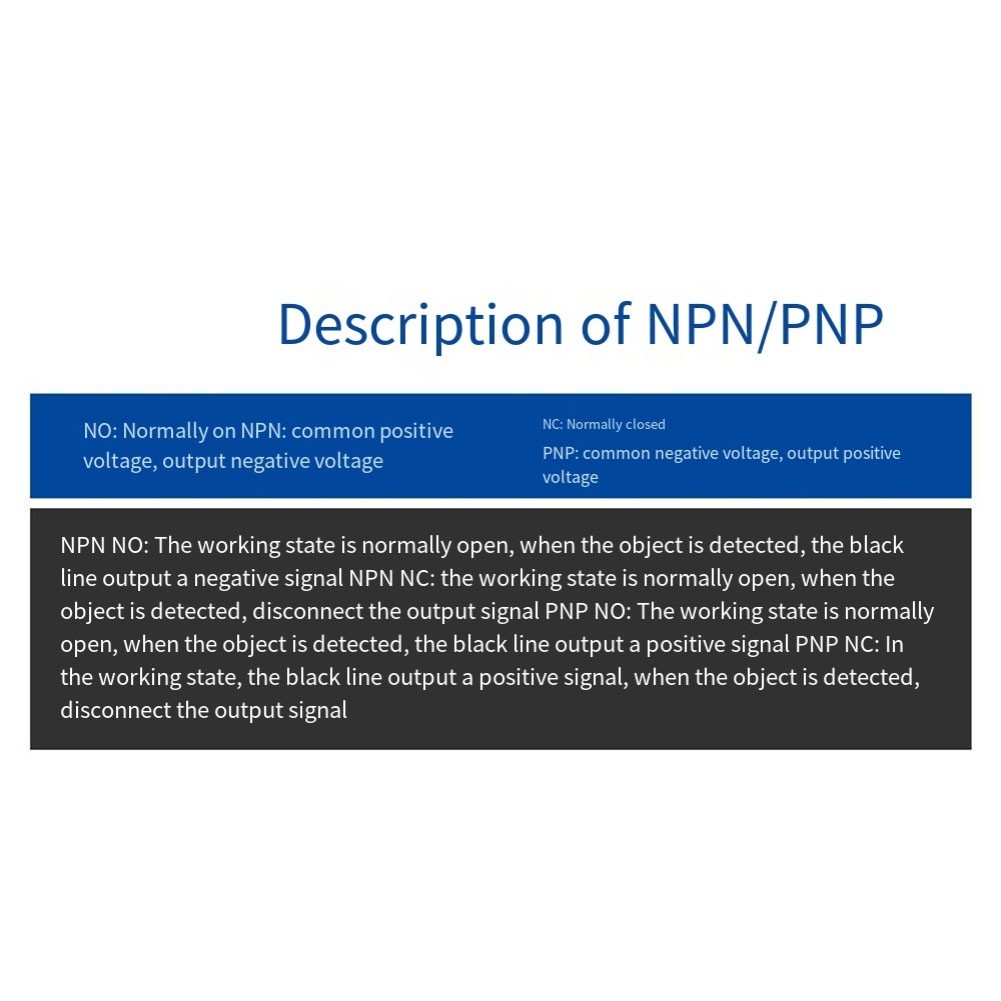

Control output: NPN
Product shell: ABS
Ambient temperature: -25~+55

Package Contents:
1*Trough type photoelectric switch

Note:
1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2.Please allow slight manual measurement deviation for the data.
