New DOMF01125 25A 1P Electric Schneider

Schneider Electric New Domae Mcb 25A 1P – Domf01125

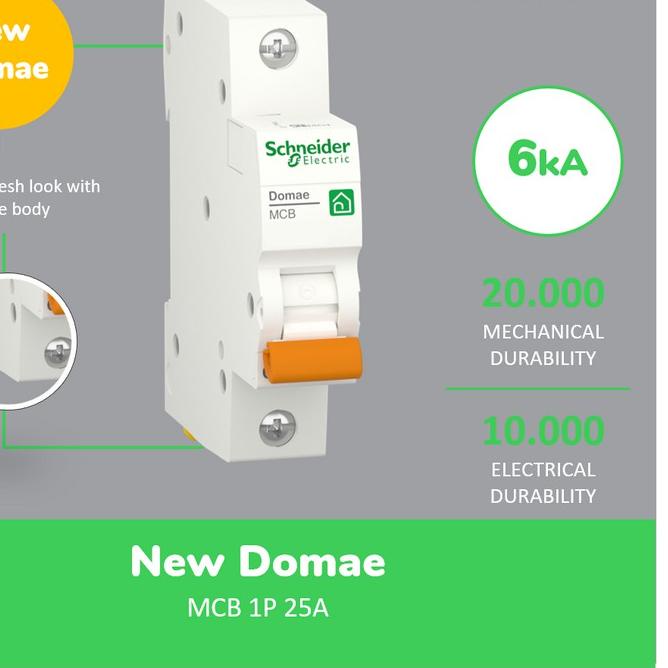

New Domae MCB

For use with 6 kA short circuit current
– Disconnect capacity:
– Sni IEC -1 standard: 2009
– Icn = 6000A (230V – 1P, 400V – 3P).
– C curve (magnetic trip between 5 and 10 In).
– Mcb Durability:
– Electrical Trip: times
– Mehanical Trip: times

(SPECIFICATIONS)
-polish Description: 1P
-number Of polishing protected: 1
3. (In) Rated current: 25 A
-network Type: air conditioner
– Curve code: C.
-breaking Capacity: 6000 A conforming to IEC -1 – 230V air conditioning 50 Hz
-network Frequency: 50 Hz
8. (Eu) Operational rated voltage: 220…240V air conditioning 50 Hz
-control Type: Toggle
-fashion Mounting: Clip-on
-mounting Support: DIN rail
-comb Busbar and distribution block compatibility: YES
13. 9 mm pitches: 2
-colour: White
