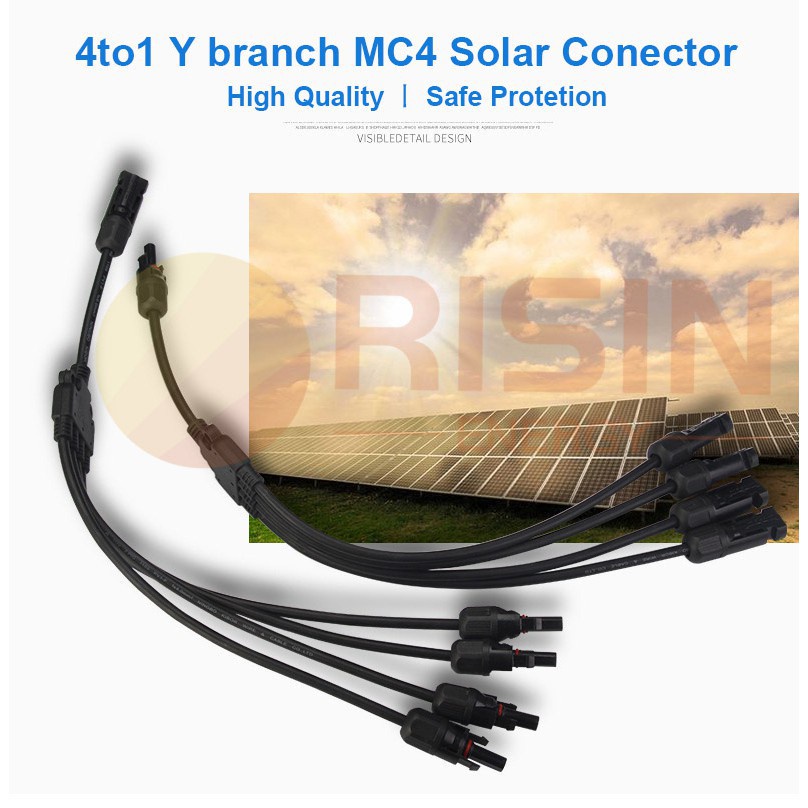

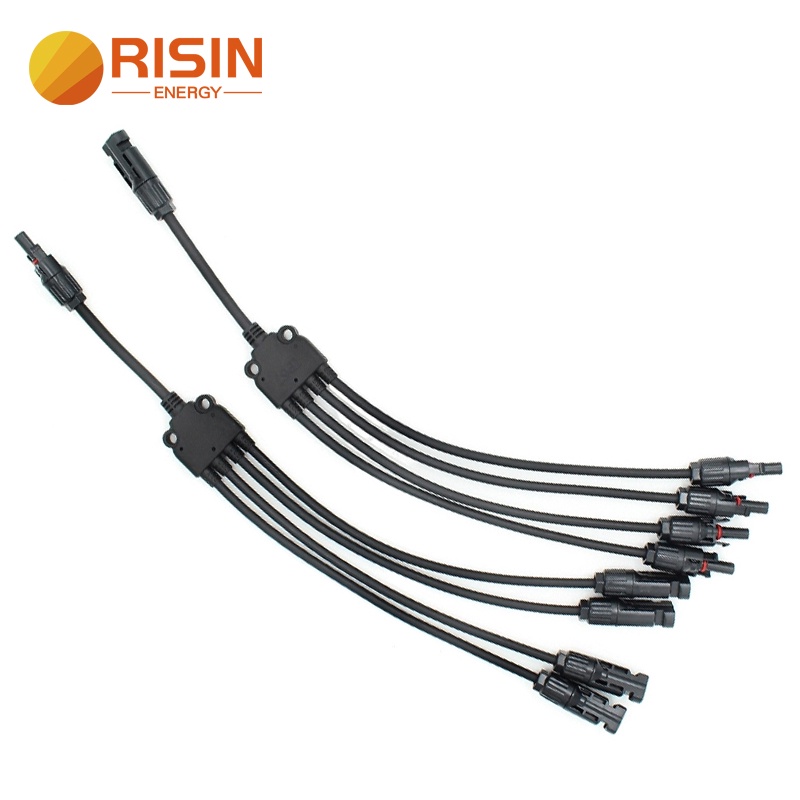

Professional Supply 4 to 1 MC4 Plug SOLAR PV Y Branch Connector with 6mm2 Solar Cable Approved For Solar PV System
Original price was: ₱1,246.00.₱685.00Current price is: ₱685.00.
Description :

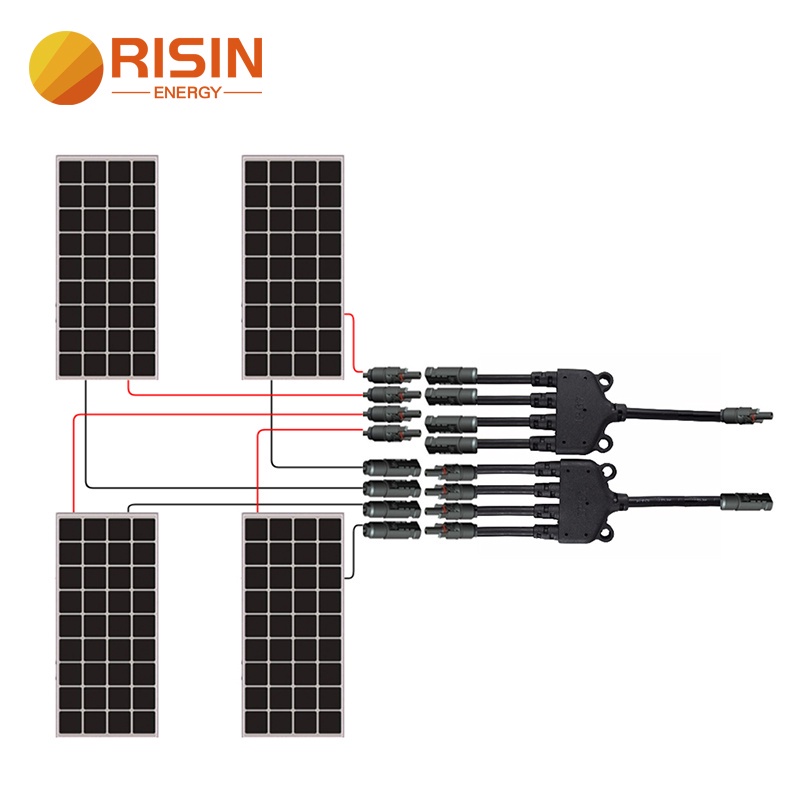

Professional Supply 4 to 1 MC4 Plug SOLAR PV Y Branch Connector with 6mm2 Solar Cable Approved For Solar PV System ( 1 Set = 4Male1 Female + 4Female 1Male ) is a pair of MC4 cable connectors for solar panels. These 4to1 connectors are typically used for linking 4 solar panels string also parallel connection,fit with MC4 Female Male single Connector from PV Modules. This 4Y branch connector can fit all MC4 Type Photonic Universe solar panels. It is 100% waterproof IP67,so they can be used outdoors in any weather conditions for 25 years.

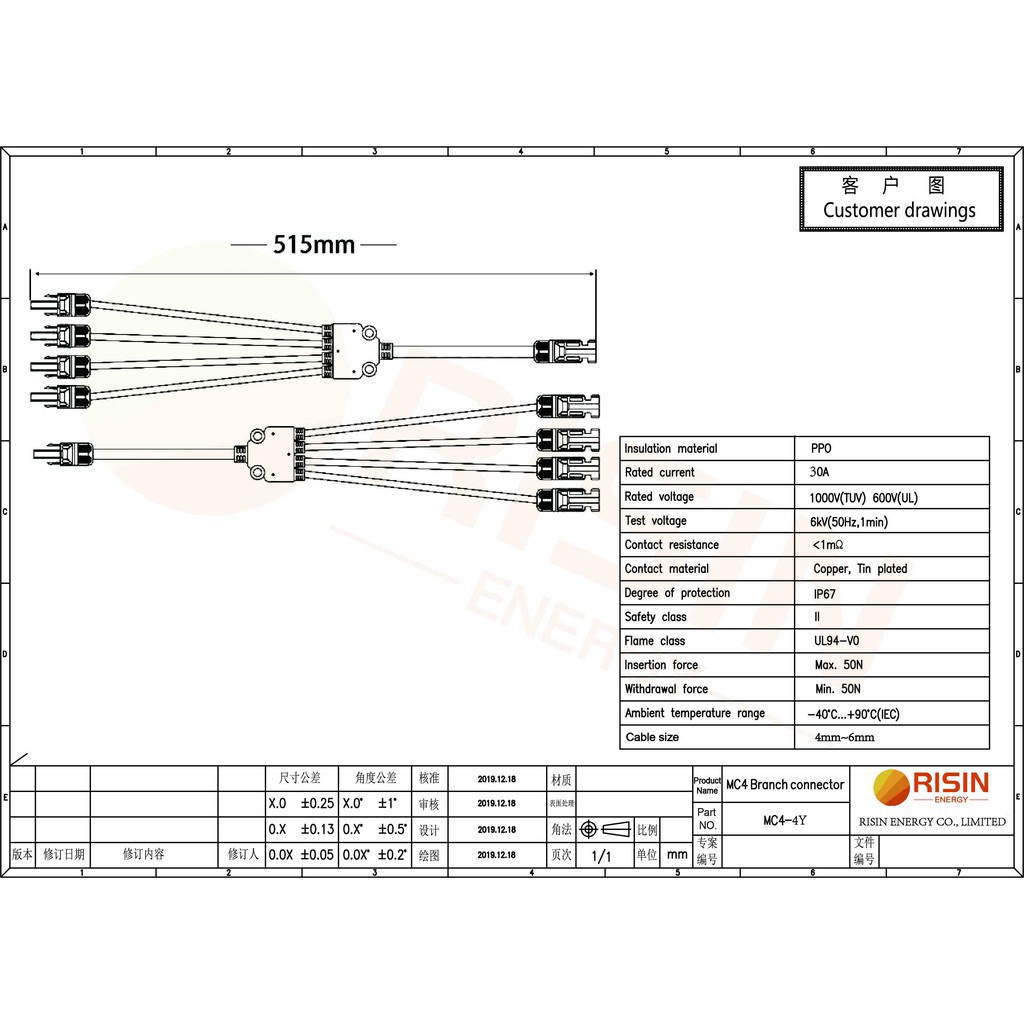

Technical Data :
Funtion: 4 input , 1 output
Rated Voltage: 1000VDC
Rated Current: 30A

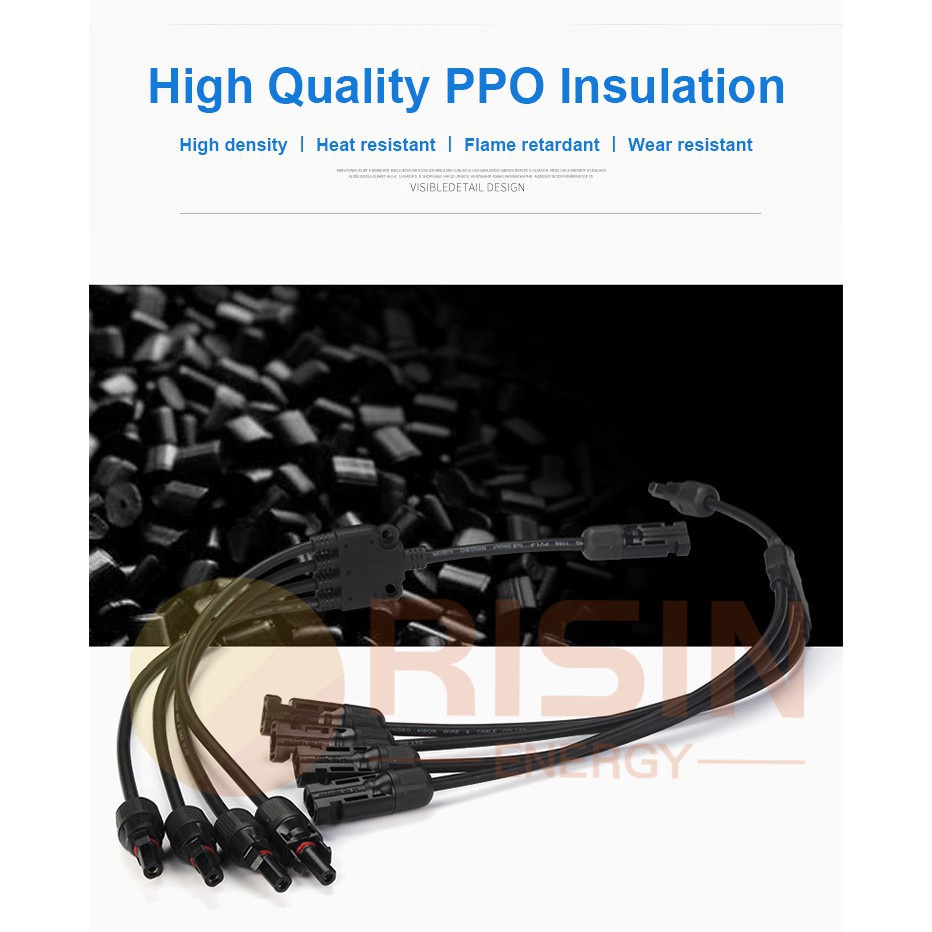

Material: Tinned Copper, PPO
Contact Resistance: <1m

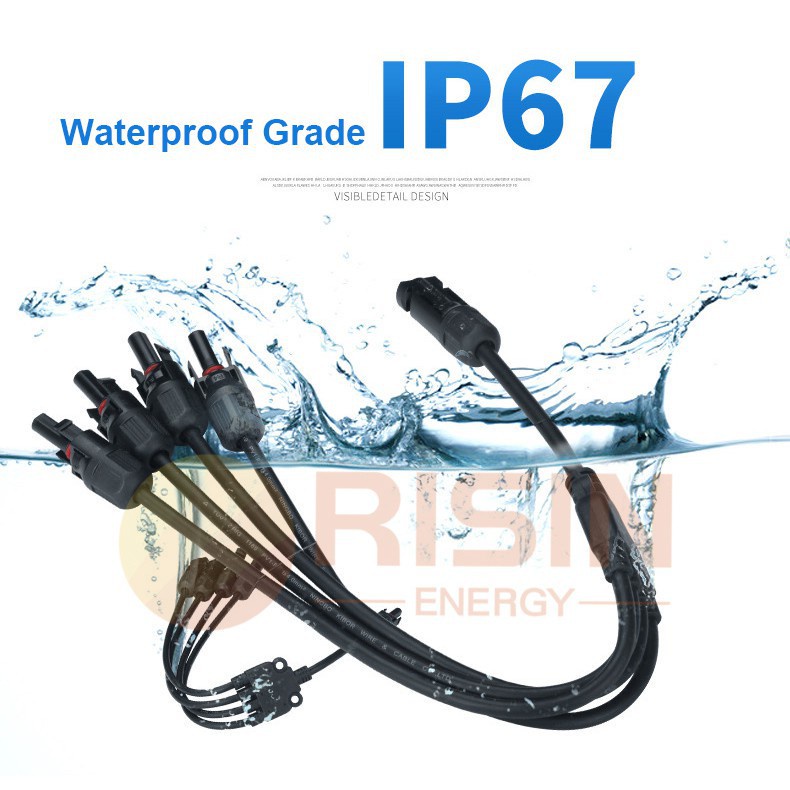

Waterproof Class: IP67
Flame Class: UL94-V0
Ambient Temperature: -40~100
Compatible Size: 2.5/4/6mm2 (14/12/10AWG) cable
Advantage of 4 to 1 Solar branch wires:
· Dual wall insulation.Electron beam cross-linked
· Excellent resistance to U.V,oil,greases,oxygen and ozone
· Excellent resistance to abrasion·Halogen free, flame retardant,low toxicity,ROHS
· Excellent flexibility and stripping performance
· High Voltage and Current carring capacity
· TUV,CE,ISO approved

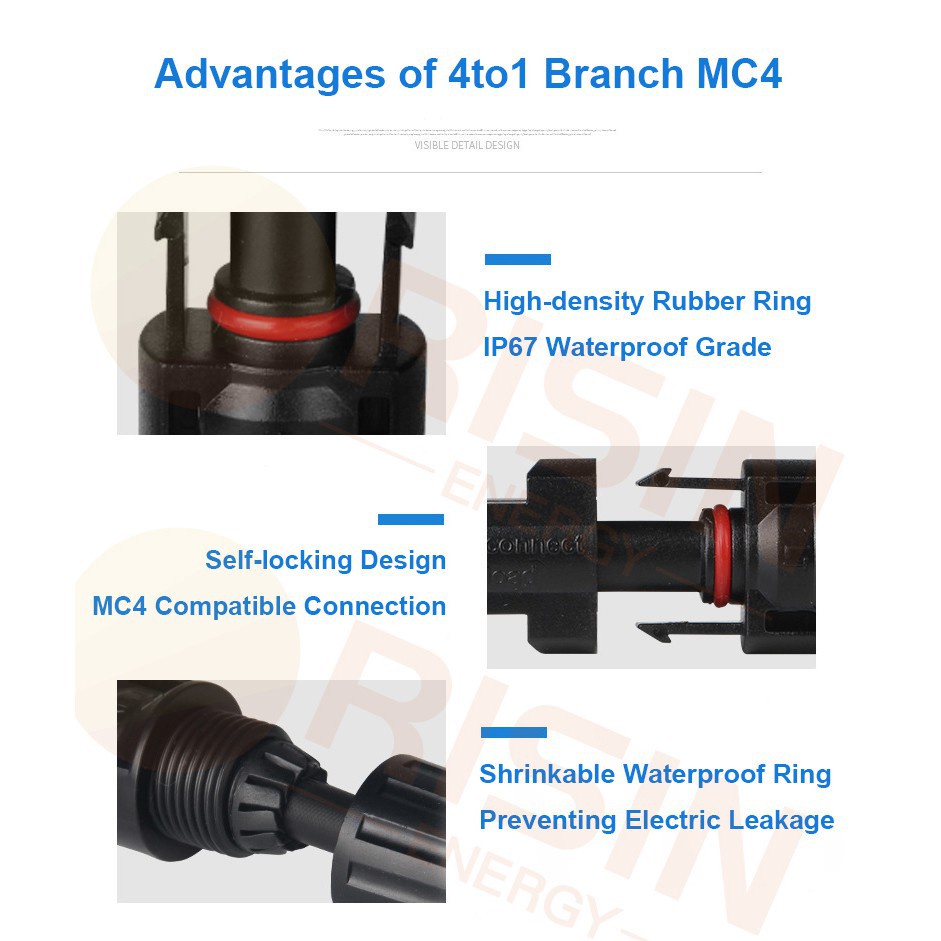

Advantage of MC4 Solar Connector:
· Compatible with Multic Contact PV-KBT4/KST4 and other types MC4
· IP67 Waterproof and UV resistant, suitable for outdoor terrible environments
· Safe ,Simple and Quick on-site processing
· Mating safety provided by keyed housings
· Multiple plugging and unplugging cycles
· Compatible with different size of PV cables commonly
· High current carrying capacity
· TUV,CE,ROHS,ISO Certificate
What's in the package :

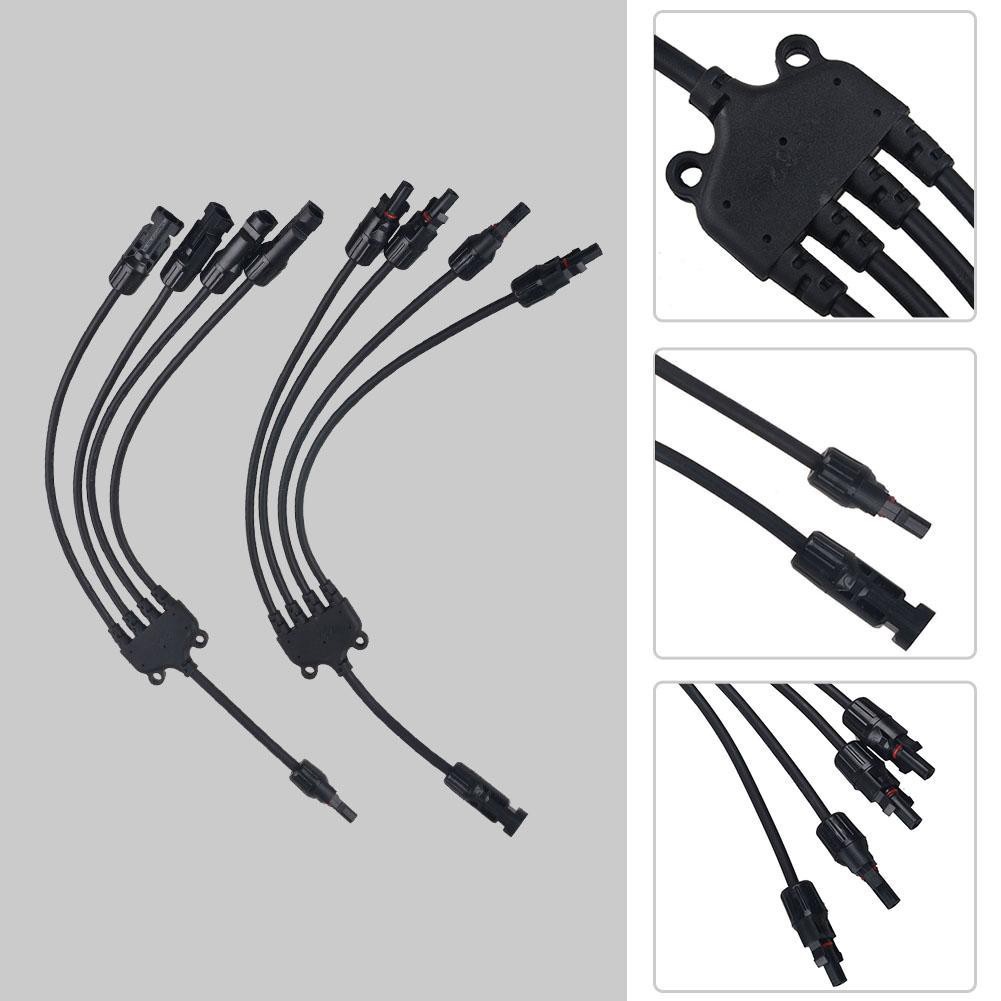

1pair of 4to1 MC4 Branch Connector
Why Choosing Risin
· 12 Years experience in solar factory
· 30 Minutes to reply after received message
· 25 Years Warranty for MC4 Connector, PV Cables
· No compromise on quality
