Risin 2 To 1 Solar Y Branch Connector With 4mm2 Solar Cable T Splitter For Solar Pv System

Description :

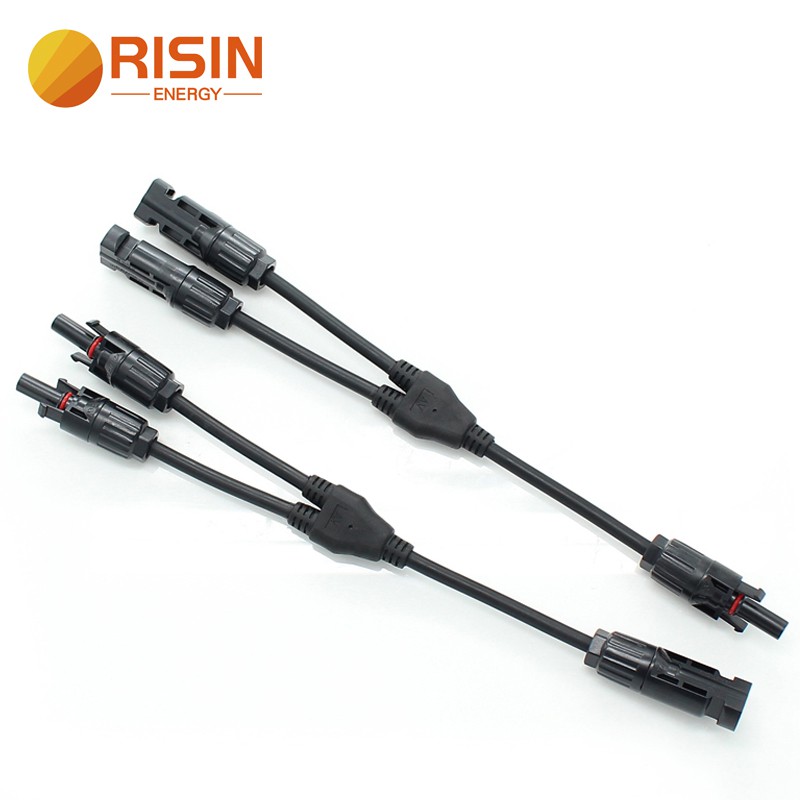

2 To 1 Solar Y Branch Connector With 4mm2 Solar Cable T Splitter( 1 Set = 2Male1 Female + 2Female 1Male ) is a pair of MC4 cable connectors for solar panels. These 2to1 connectors are typically used for linking 2 solar panels string also parallel connection,fit with MC4 Female Male single Connector from PV Modules. This 2Y branch connector can fit all MC4 Type Photonic Universe solar panels. It is 100% waterproof IP67,so they can be used outdoors in any weather conditions for 25 years.

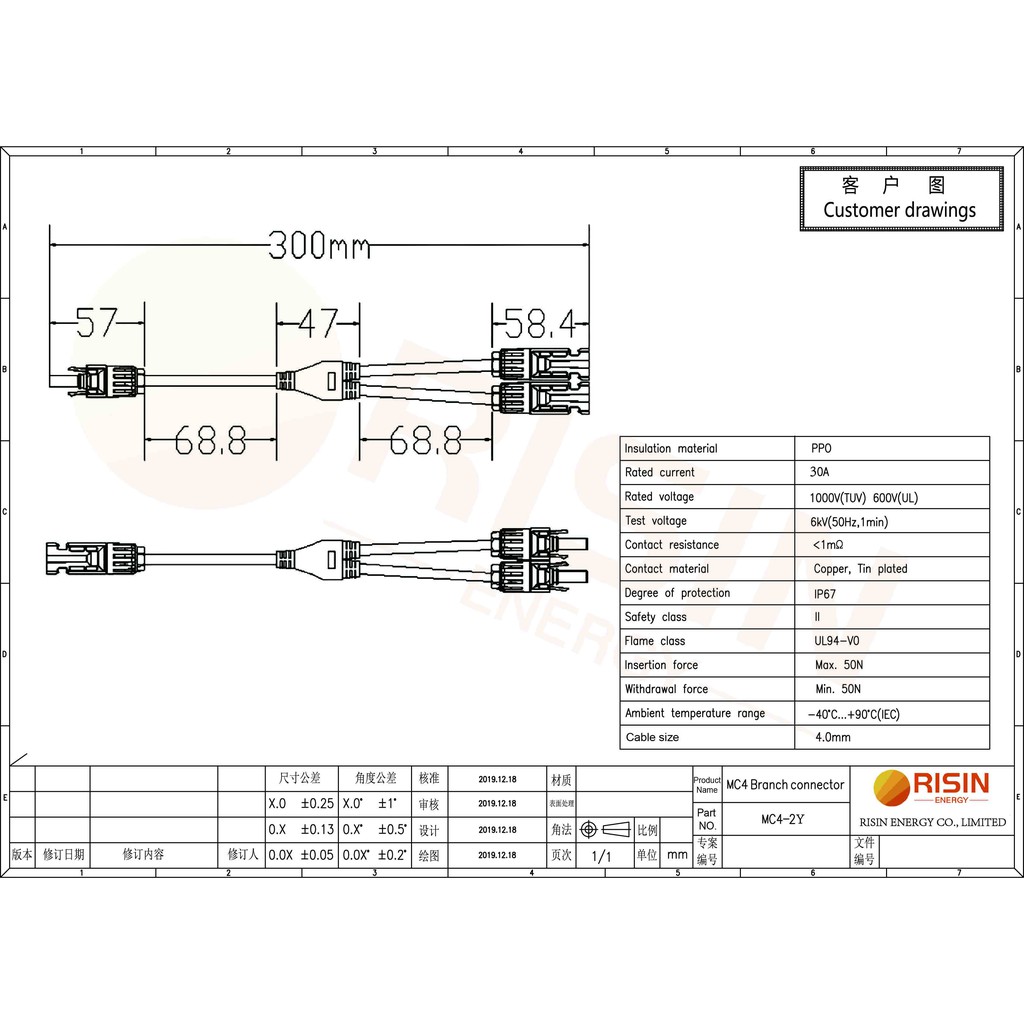

Technical Data :
Rated Voltage: 1000VDC
Rated Current: 30A

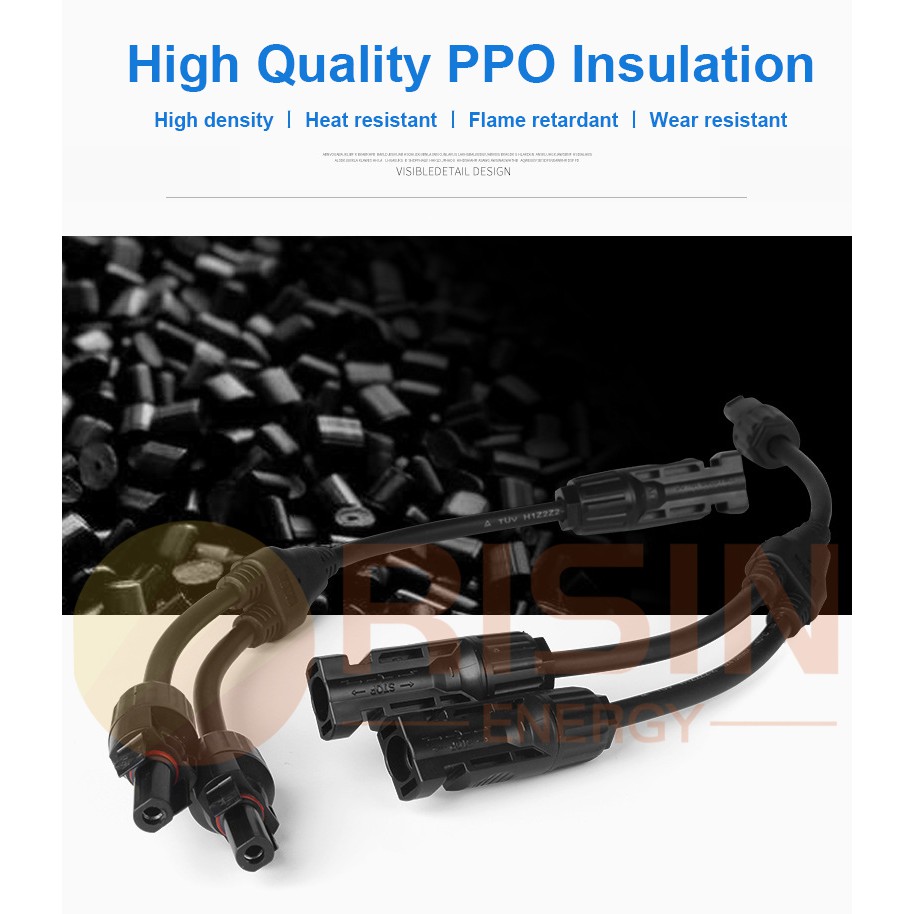

Material: Tinned Copper, PPO

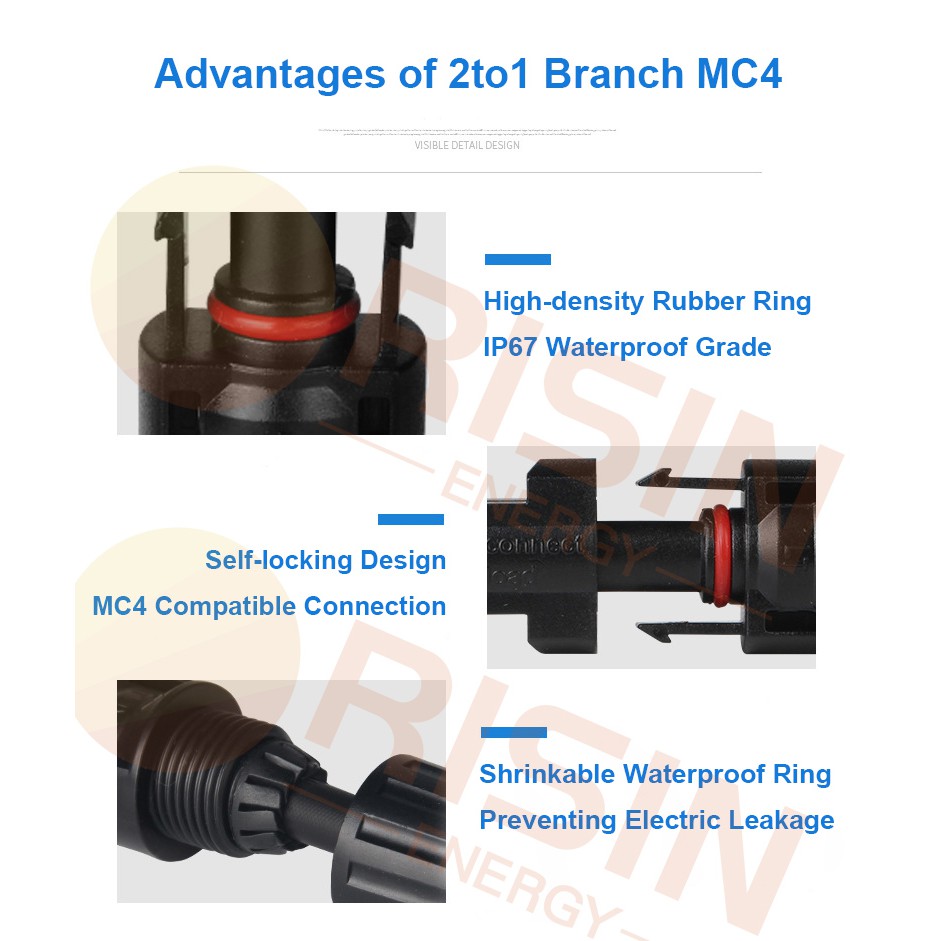

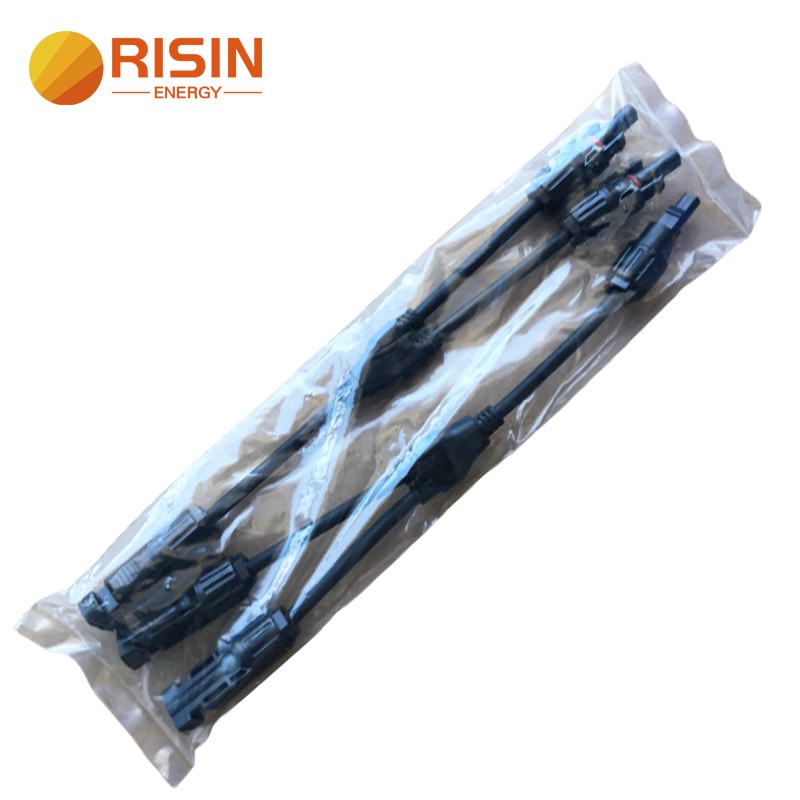

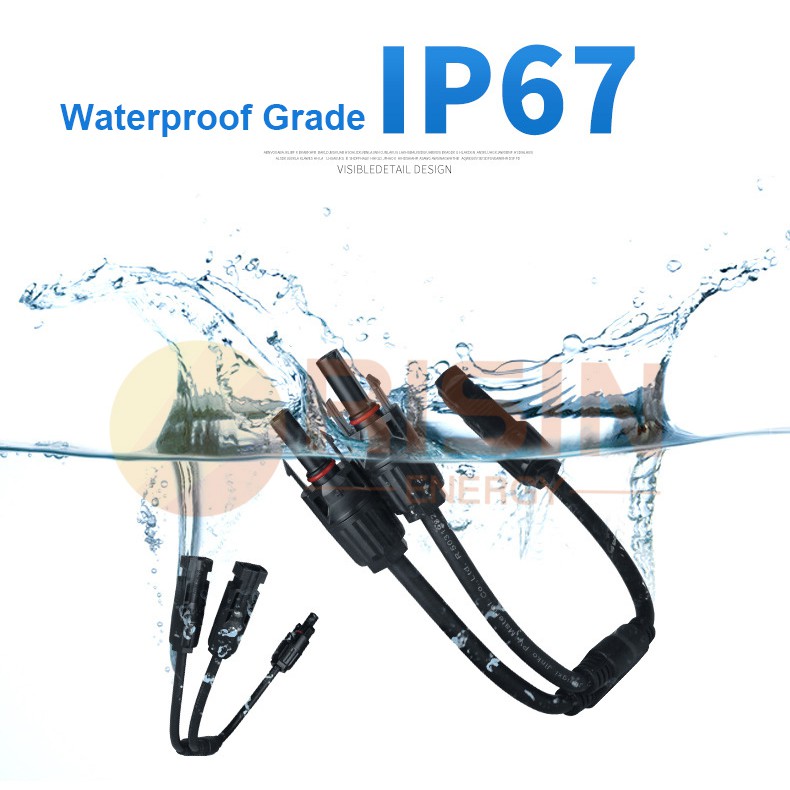

Contact Resistance: <1m Waterproof Class: IP67 Flame Class: UL94-V0 Ambient Temperature: -40~100 Compatible Size: 2.5/4/6mm2 (14/12/10AWG) Advantage of 2 to 1 Solar branch wires: ·Dual wall insulation.Electron beam cross-linked ·Excellent resistance to U.V,oil,greases,oxygen and ozone ·Excellent resistance to abrasion·Halogen free, flame retardant,low toxicity,ROHS ·Excellent flexibility and stripping performance ·High Voltage and Current carring capacity ·TUV,CE,ISO approved Advantage of MC4 Solar Connector: · Compatible with Multic Contact PV-KBT4/KST4 and other types MC4 · IP67 Waterproof and UV resistant, suitable for outdoor terrible environments · Safe ,Simple and Quick on-site processing · Mating safety provided by keyed housings · Multiple plugging and unplugging cycles · Compatible with different size of PV cables commonly · High current carrying capacity · TUV,CE,ROHS,ISO Certificate What's in the package : 1pair of 2to1 MC4 Branch male and female Why Choosing Risin · 12 Years experience in solar factory and trading · 30 Minutes to reply after received message · 25 Years Warranty for MC4 Connector, PV Cables · No compromise on quality
