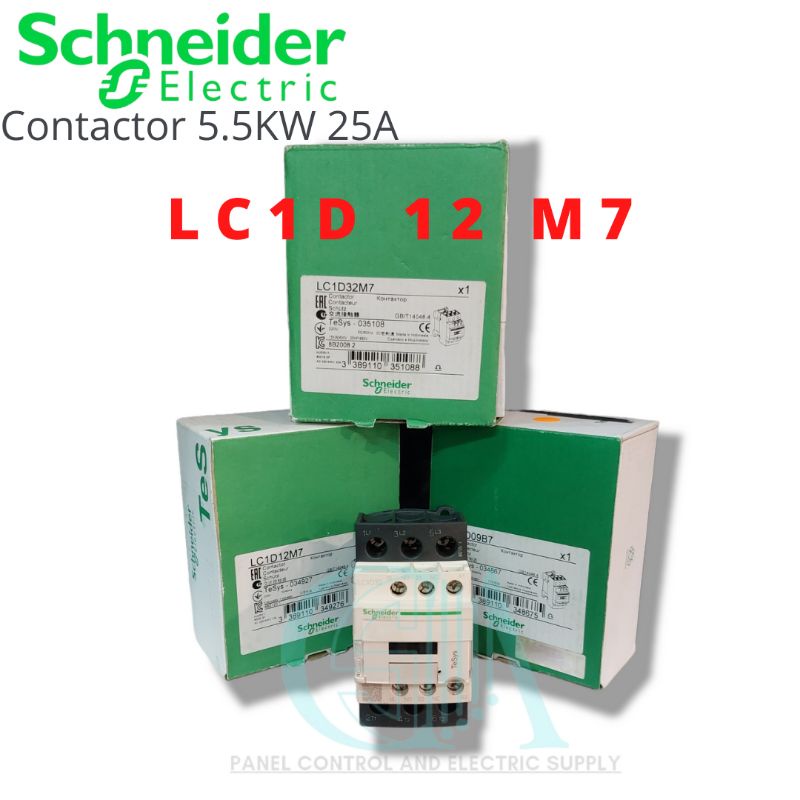

Schneider Contactor LC1D 12m7 magnetic Contactor 3phas 25Ampere

Contactor for motor control up to 150 A (75 kW / 400 V).
Tesys D contactors and reversing contactors are available from 9 A to 150 A (inductive motor), and from 20 A to 200 A (resistive load) in version 3 poles and 4 poles.

[SPECIFICATIONS]
-product Or component type: Contactor
-device Short name: LC1D
-application Contactor:
-Resistive Load
-Motor Control
-utilisation Category:
-AC-4
-AC-1
-AC-3
-polish Description: 3P
-power Pole contact composition: 3 NO
7. [Ue] Rated operational voltage:
-Power Circuit: <= 690 V air conditioner 25...400 Hz -Power Circuit: <= 300 V DC 8. [Ie] Rated operational current: -32 A (at <60 °C) at <= 440 V air conditioner air conditioner-3 for power circuit -50 A (at <60 °C) at <= 440 V air conditioner air conditioner-1 for power circuit -circuit Control type: Air conditioner at 50/60 Hz 10. [Uc] Voltage circuit control: 220 V air conditioner 50/60 Hz -auxiliary Contact composition: 1 NO + 1 NC -10 A (at 60 °C) for signalling circuit -40 A (at 60 °C) for power circuit -Irms Rated make capacity: -250 A at 440 V for power circuit conforming to IEC 60947 -140 Air conditioner for signalling circuit conforming to IEC 60947-5-1 -250 A DC for signalling circuit conforming to IEC 60947-5-1 -rated Breaking capacity: 250 A at 440 V for power circuit conforming to IEC 60947 -height: 85 mm -width: 45 mm -depth: 92 mm -net Weight: 0.37 kg
