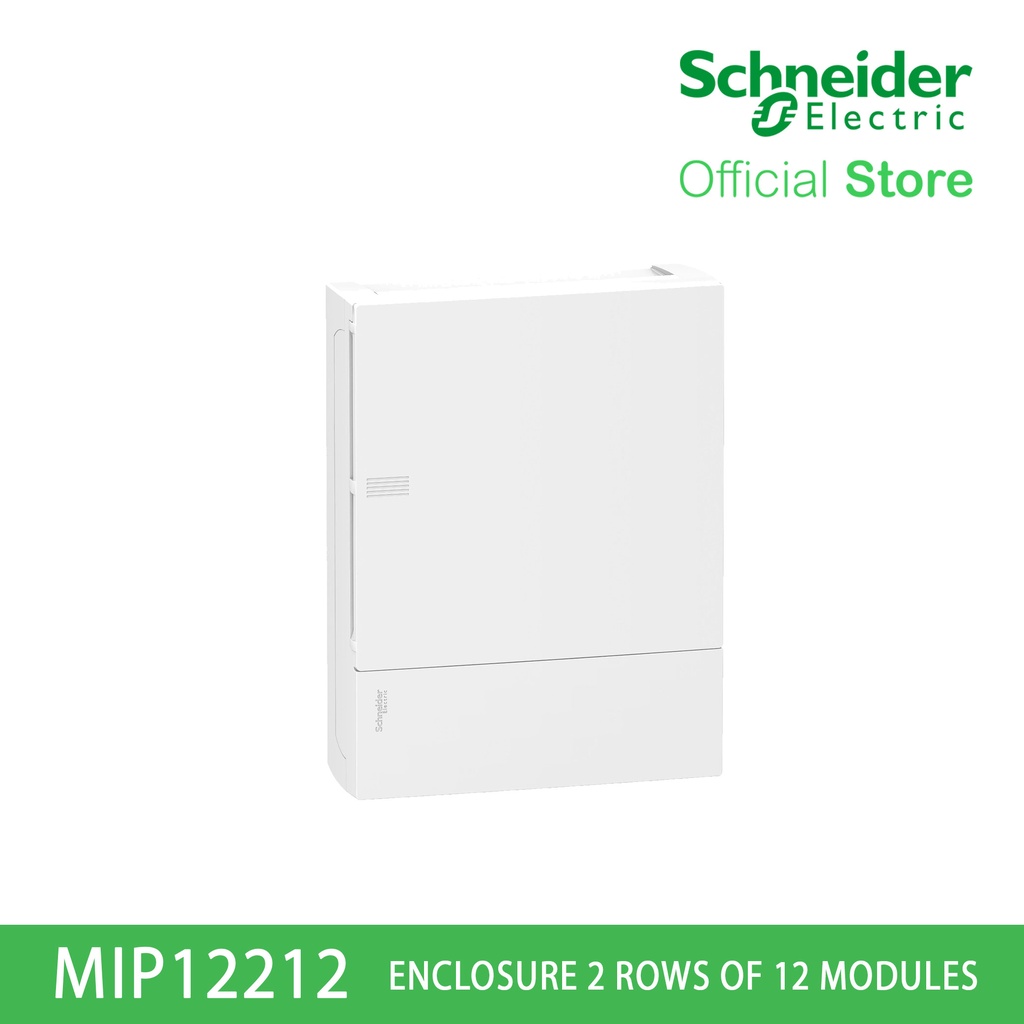

Schneider Enclosure Resi9 MP Surface 2 Rows of 12 Modules IP40 (MIP12212)

Main
• range: Resi9
• product name: Resi9 MP
• product or component type: Enclosure
• enclosure type: Modular enclosure
• Nb of 18 mm modules per row: 12
• Nb of horizontal rows: 3
• Type of door: Plain
• width: 268 mm outside
• height: 478 mm outside
• depth: 102 mm outside

Complementary
• enclosure mounting: Surface
• 9 mm pitches: 24
• total number of 18 mm modules: 36
• [In] rated current: 63 A
• type of rail: 35 mm asymmetrical rail
• mounting plate description: Without mounting plate
Cable entry
• 1 trunking flange
• 1 bare flange
• terminal block function: Earth / neutral
Number of terminal blocks
• 1 earth (screwed) with 20 outgoers
• 1 neutral (screwed) with 20 outgoers
Distribution block outgoers
• 2 x 16 mm² for earth
• 2 x 16 mm² for neutral
• 9 x 10 mm² for earth
• 9 x 10 mm² for neutral
• 9 x 6 mm² for earth
• 9 x 6 mm² for neutral
Enclosure material
• Back part: technoplastic
• Door: technoplastic
• Front face: technoplastic
• internal depth: 80 mm
Colour
• Door: white (RAL 9003)
• Front face: white (RAL 9003)
Market segment
• Small commercial
• Residential

Environment
Standards
• IEC 61439-1
• IEC 61439-3
• IEC 60670-1
• IEC 60670-24
• quality labels: IMQ
Fire resistance
• Door: 650 °C
• Back part: 650 °C
• Front face: 650 °C
• IP degree of protection: IP40
• IK degree of protection: IK07
• ambient air temperature for operation: -25…60 °C

• (L x W x H): 102mm x 478mm x 268mm

• 1-Year Manufacturers Warranty
• All shipping fees shall be shouldered by the buyer.
• Kindly send us a message on how to claim the warranty.
