Schneider Model EasyPact EZC Main Circuit Breaker MCCB 1P 100A 25kA Code EZC100H1100

Schneider Model EasyPact EZC Main Circuit Breaker MCCB 1P 100A 25kA Code EZC100H1100

Easypact EZC Stationary mounted circuit breaker High efficiency and economy
It is an ideal choice for protection against small and medium buildings.
Thermal-magnetic trip unit rated current 100A
Rated short circuit current up to 25kA rms at 240VAC 50 / 60Hz.
Easypact EZC meets international standards (IEC 60947, UL 508).

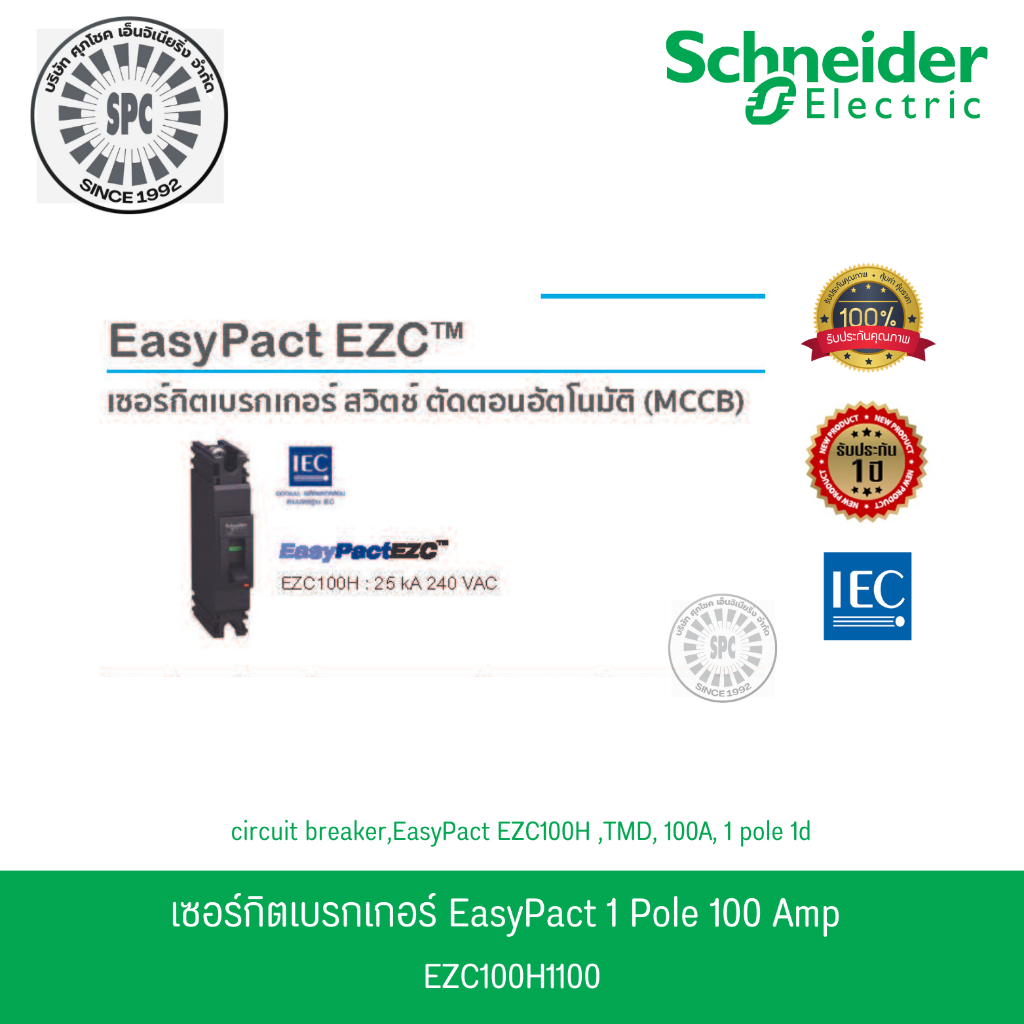

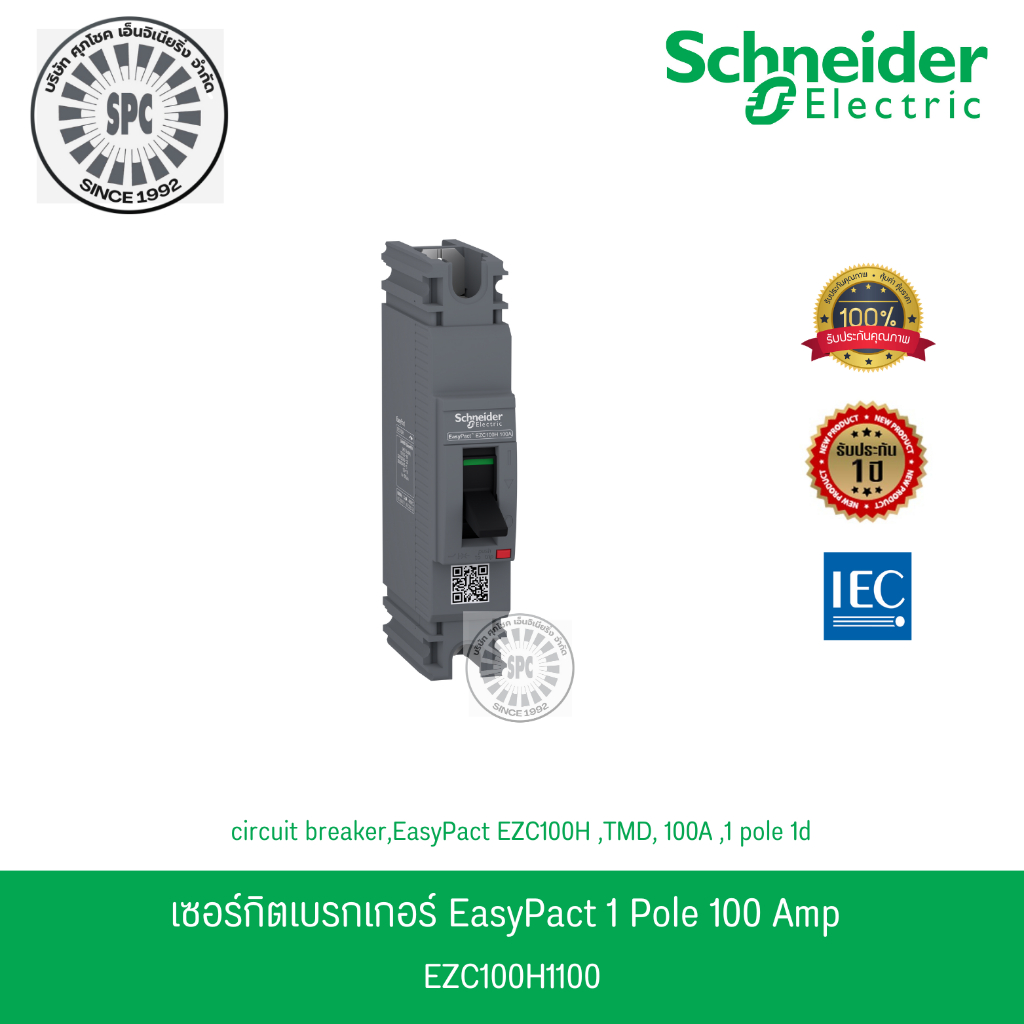

Easypact EZC100H is a 1 pole fixed circuit breaker designed for the protection of low voltage electrical installation.
It is used for standard applications industries and buildings, offering good performance at competitive price.

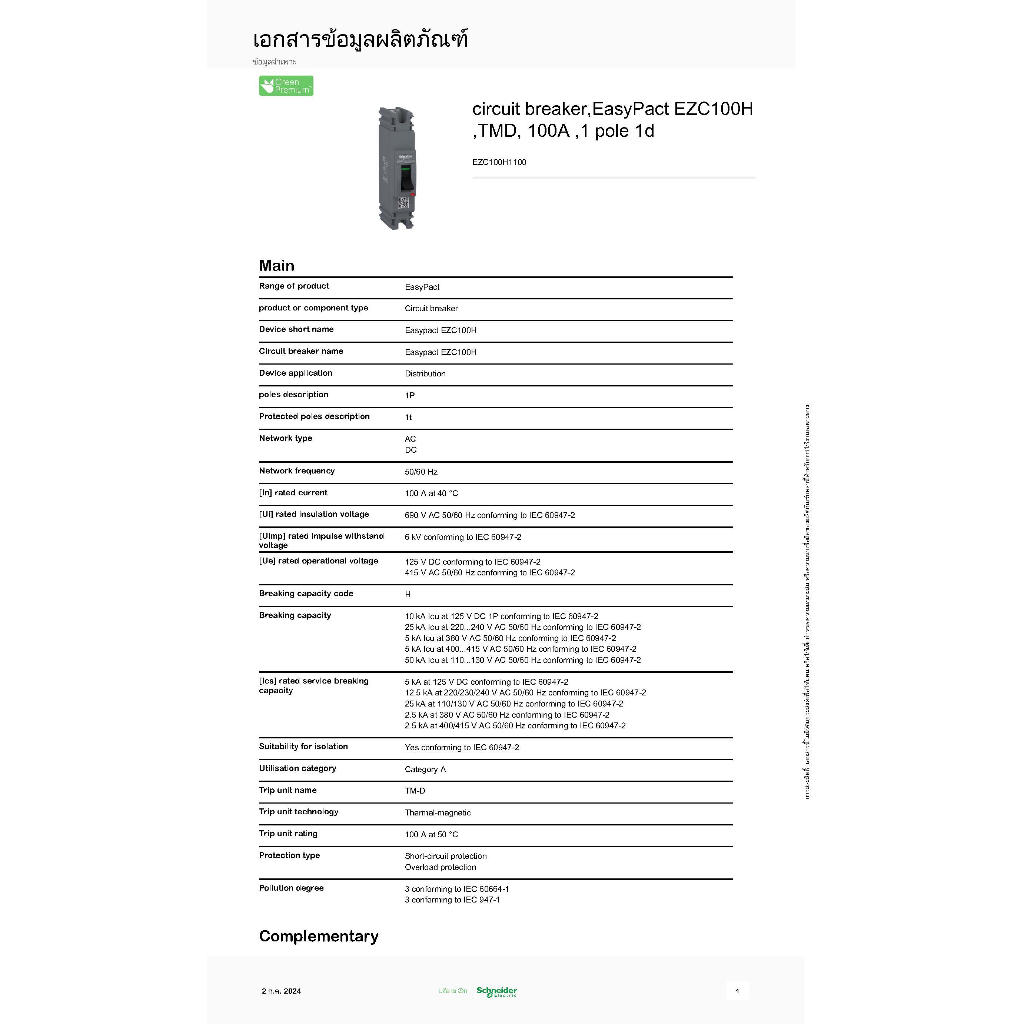

The breaking capacity (Icu) is 25kA rms at 240VAC 50 / 60Hz.
The operation voltageal voltage is 415VAC 50 / 60Hz or 125VDC.
The rating of the thermal-magnetic trip unit is 100A
The trip unit fixed overload and instantaneous protections.

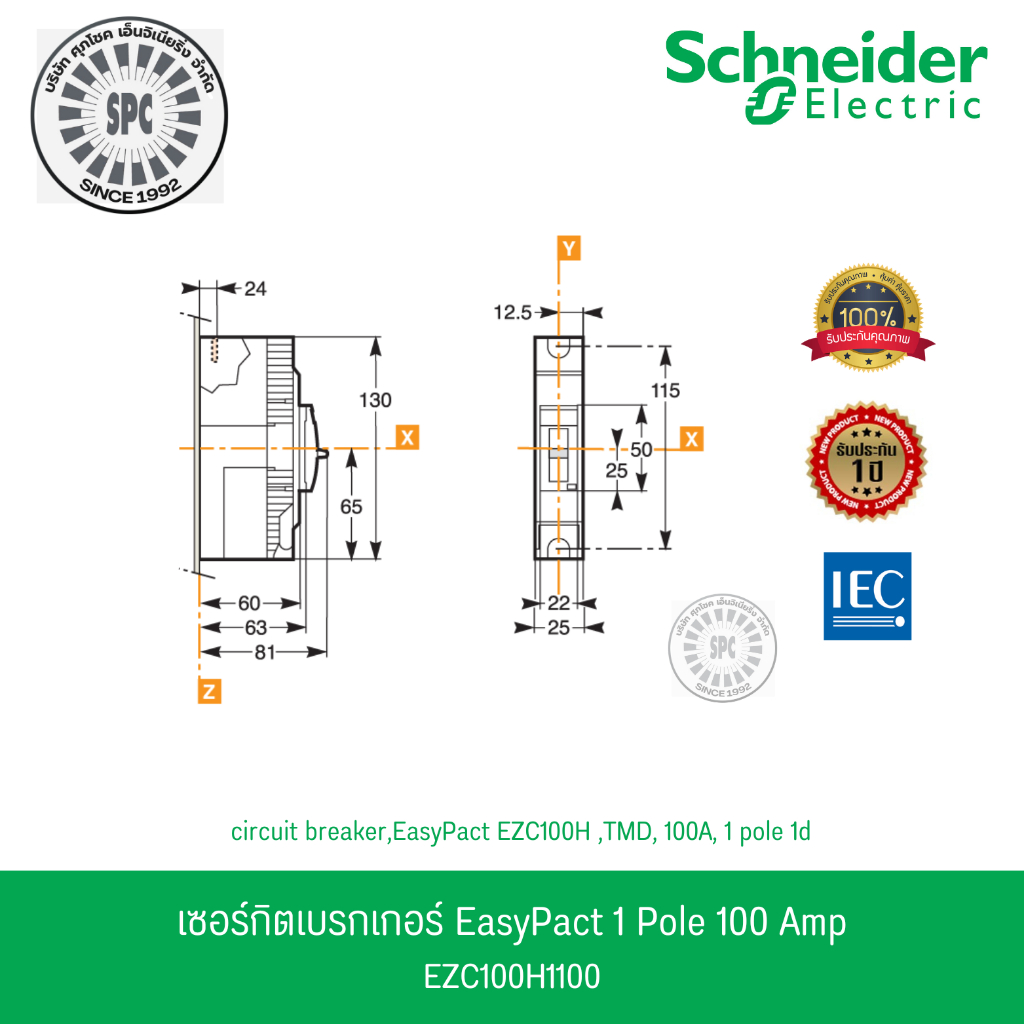

The dimensions for this 1 pole version are 25mm (W) x 130mm (H) x 60mm (D).
Easypact EZC100H is compliant with international standards (IEC 60947, UL 508) and marine certifications.
