[Stock In Manila]Original Factory Smartgen BAC06A 12V 24V Intelligent Automatic Battery Charger 6A 3A Diesel Generator Switch Power Generator Float Chargers Pcb Circuit Adapte Le

Welcome to the Malali store!

Prepare to send quality The most favorable price

New store activity: “Follow our store: priority shipping (send me a screenshot, please indicate on the order:” Free gift “, if not, you will miss it)

Follow us, there are daily promotions and new customers in our store

———————- Company Introduction ———————–

Our company: Shenzhou (Fujian) Electric Motor Co., Ltd. was established on April 28, 2004, with nearly 20 years of production and manufacturing experience. Its main business scope includes: electric motors, generators, generator sets, water pumps, electronic products, internal combustion engines and their accessories, and motor parts manufacturing. It is a very mature enterprise.

———————- Product Introduction ———————–

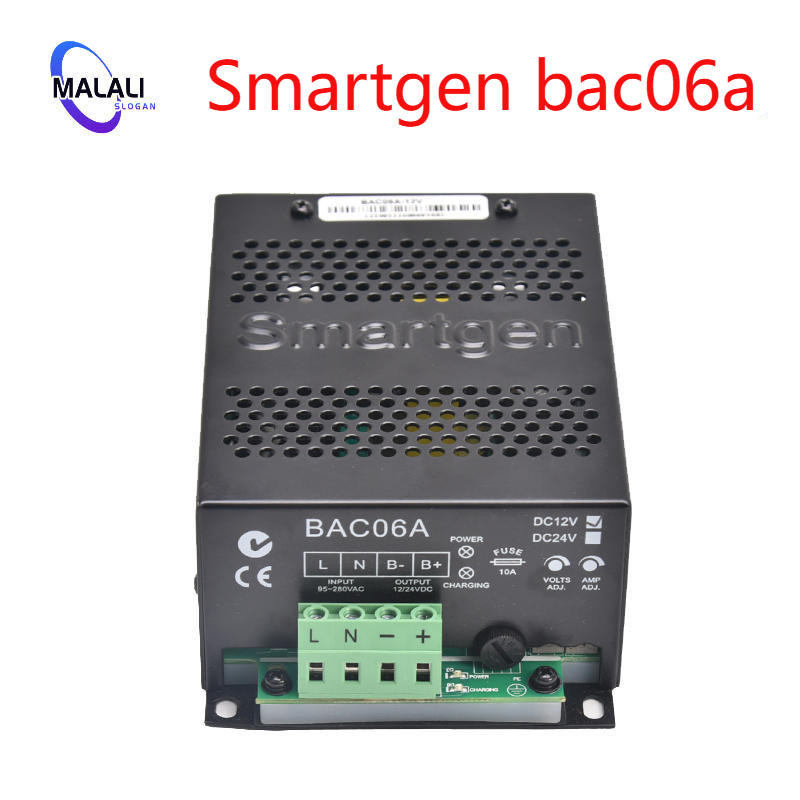

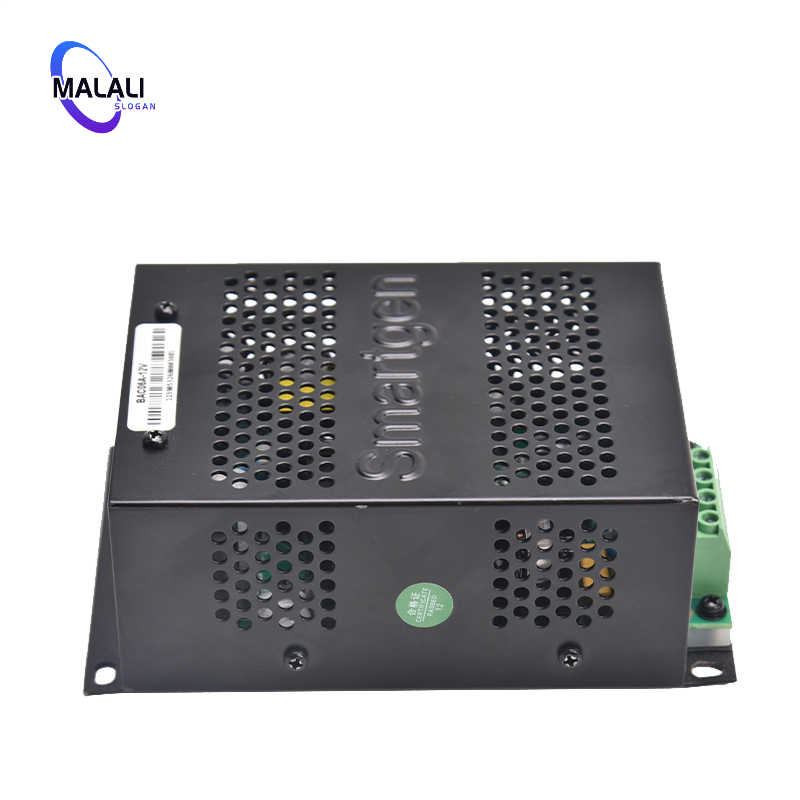

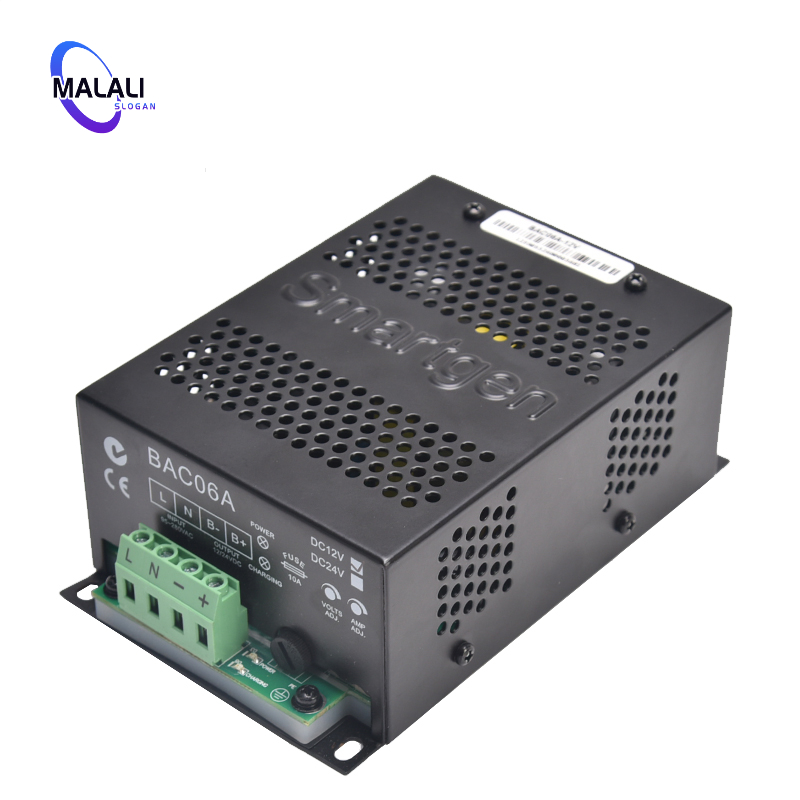

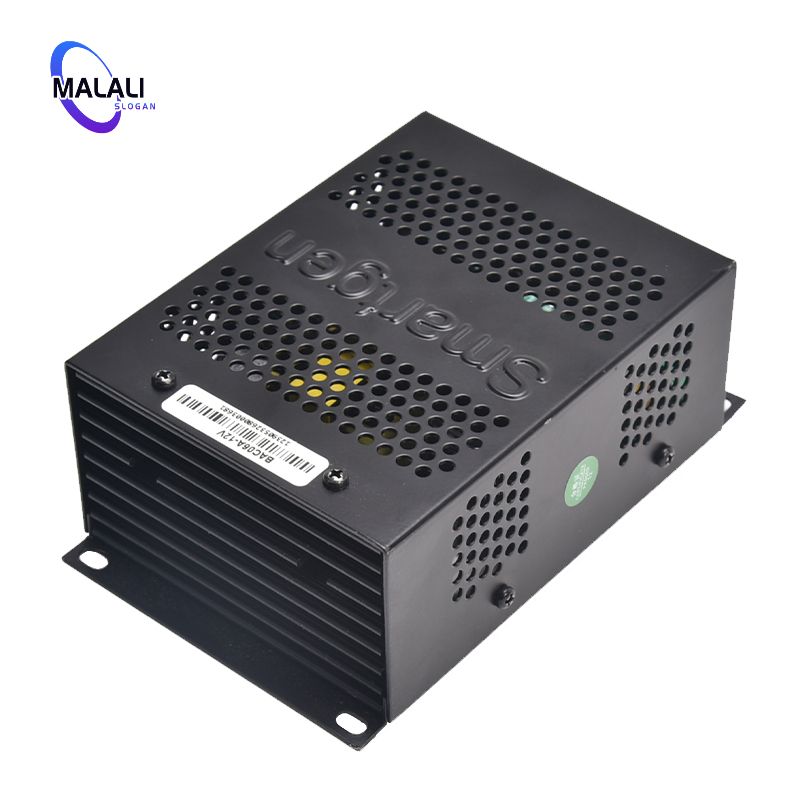

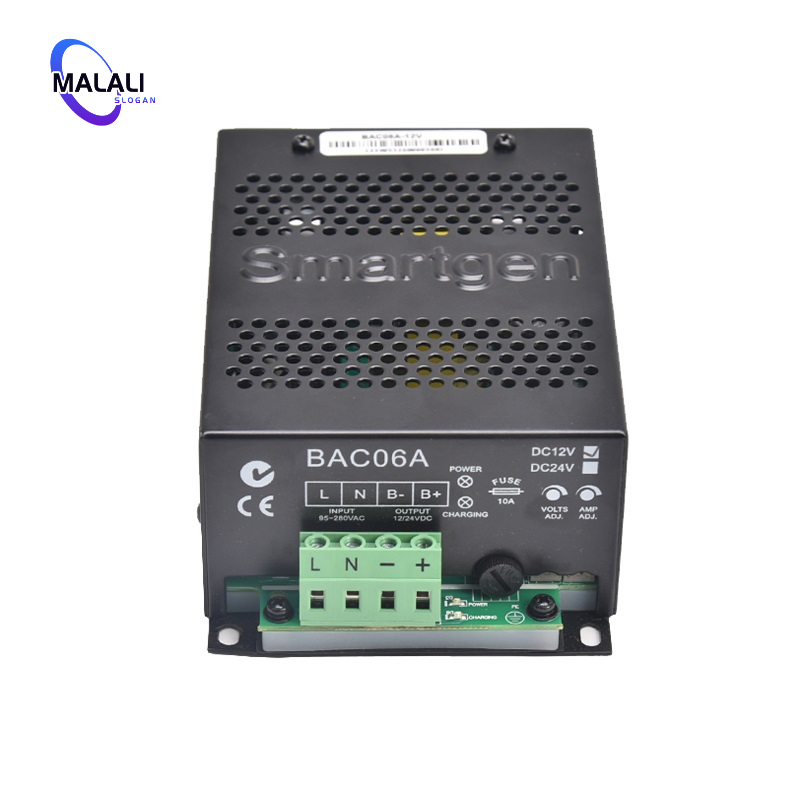

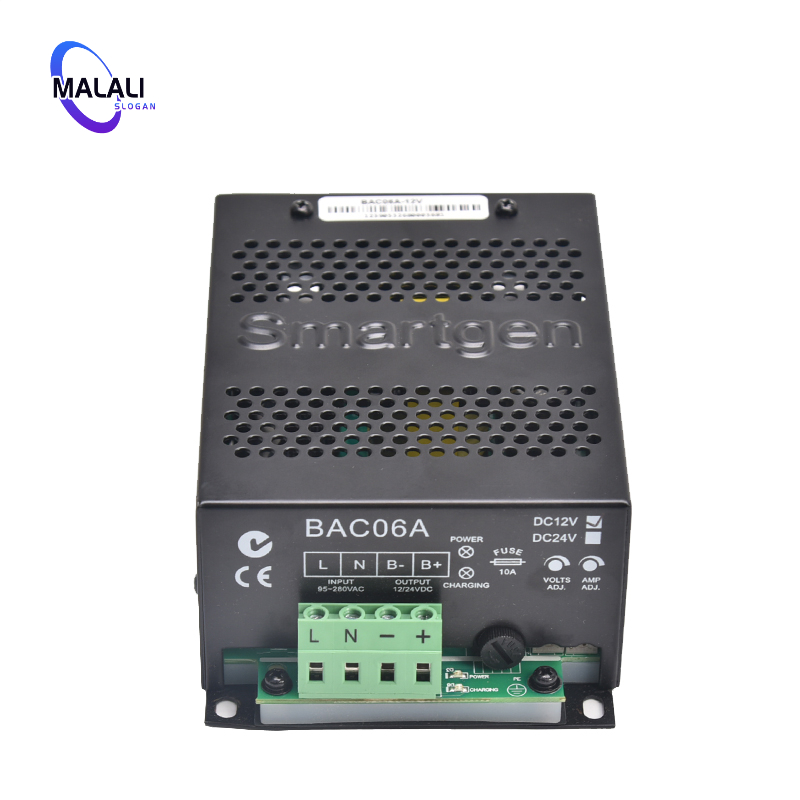

BAC06A switching battery charger adopts the latest switch power components, which is designed for charging lead-acid starting battery according to its property. The charger is suitable for lead-acid battery float charge. The maximum charge current for 12V charger is 6A; the maximum charge current for 24V charger is 3A.

PERFORMANCE AND CHARACTERISTICS

1.Designed in switching power structure, wide range of AC voltage input, small volume, light weight and high efficiency;

2.Two-stage charging method (constant current firstly and then constant voltage), fully considering charging property of the lead-acid battery, can avoid overcharging and extent extend the battery life to the fullest;

3.With short circuit and reverse connection protection;

4.Charging voltage and current can be adjusted via potentiometer on the spot;

5.Suitable for 12V and 24V batteries, corresponding types are BAC06A-12V and BAC06A-24V;

6.LED display: Power indication and charging indication;

SPECIFICATION

Battery Voltage

12V

24V

Max. Charge Current

6A

3A

Charge Voltage Range

(13~14.5)V

(26~29)V

Charge Current Range

(3~7)A

(1.5~3.5)A

AC Voltage

(95~280)VAC

AC Frequency

50 Hz/60Hz

Power Consumption

120W

115W

No-Load Power Consumption

Less than 3W

Efficiency

More than 80%

More than 85%

Working Temperature

(-40~60)°C

Storage Temperature

(-40~85)°C

Weight

0.65kg

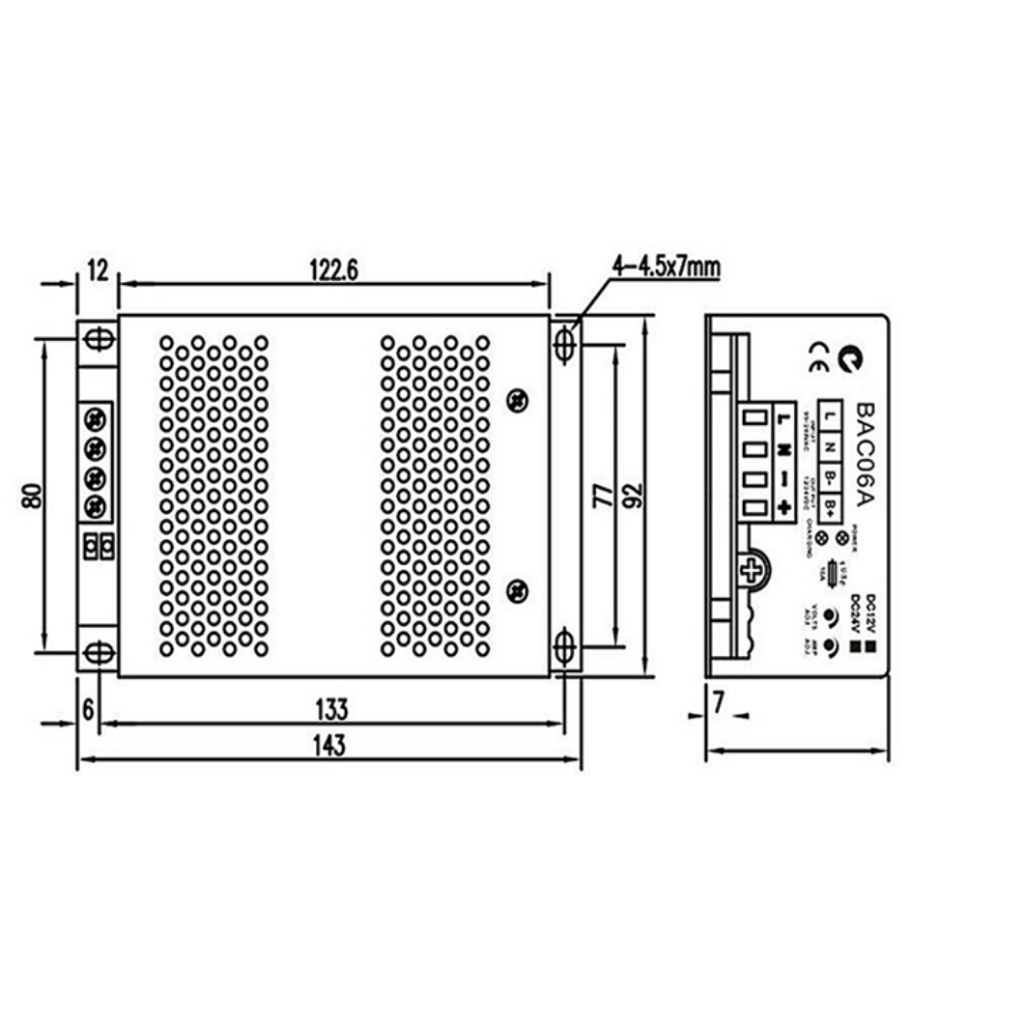

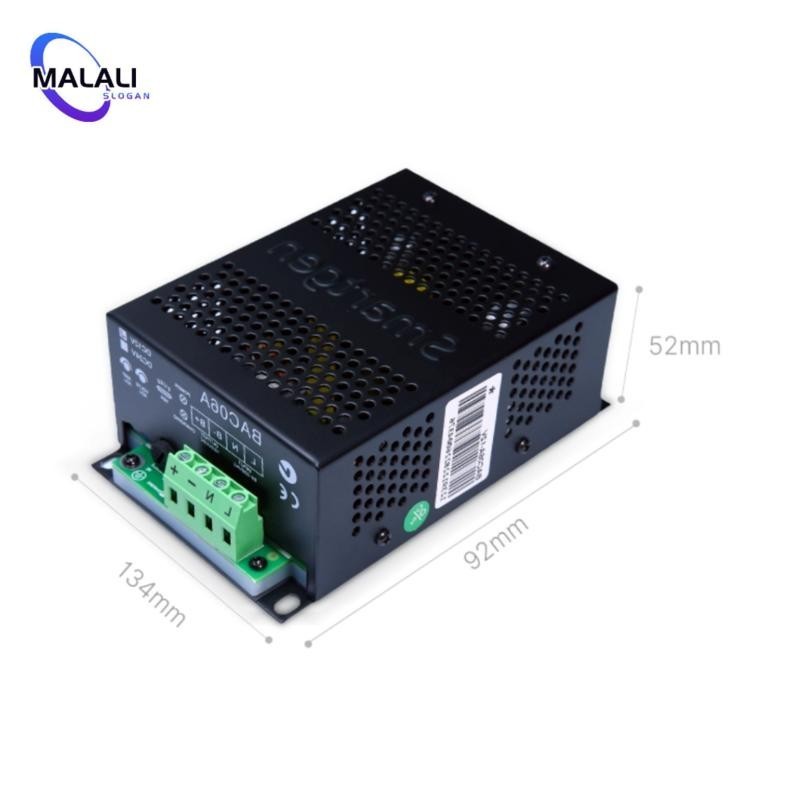

Case Dimensions

110 mm×163 mm×62mm
