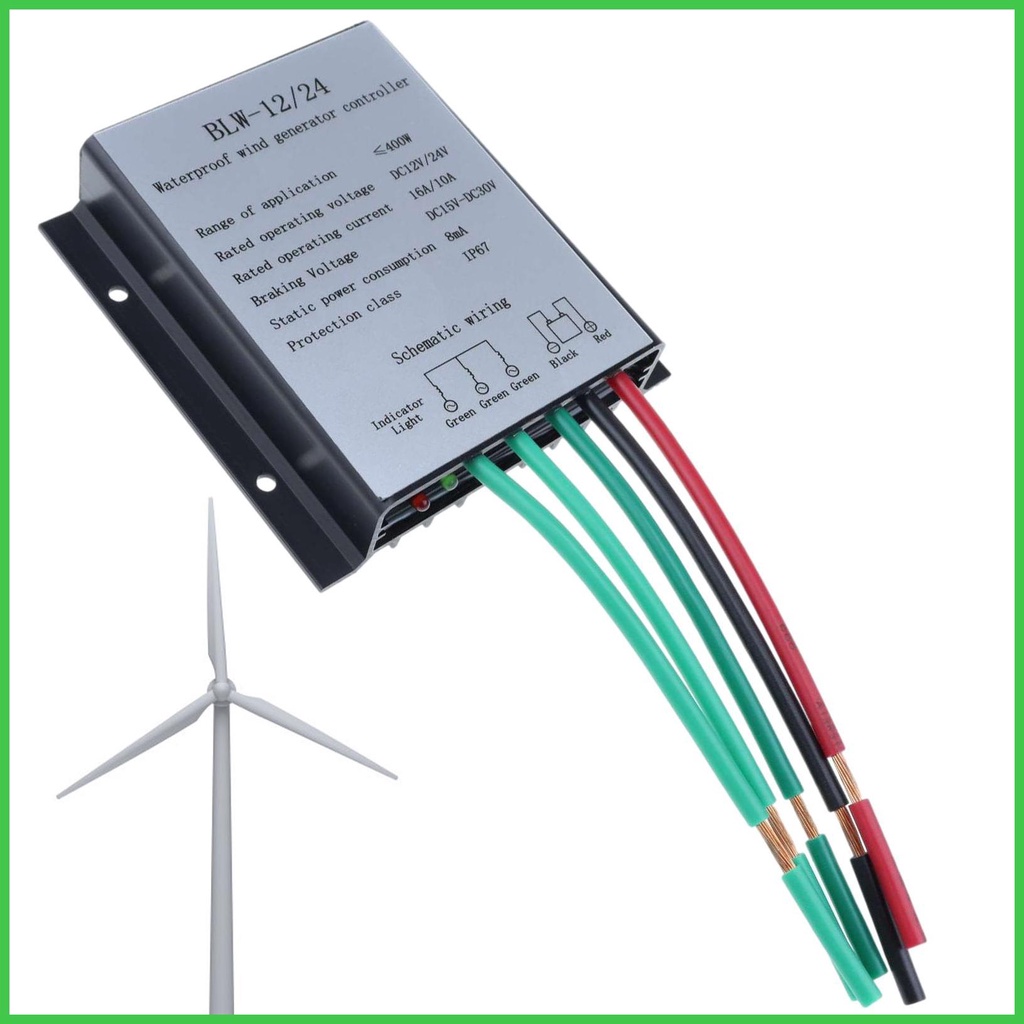

Wind Power Regulator for Wind Generator IP67 Waterproof Wind Turbine Generator Charge Controller Regulator smbph smbph

Bullet Points:
1Sufficient EnergyWind turbine generator charge controller has sufficient energy, which can solve the problem that the fan cannot be charged due to slow rotation speed. MPPT boost charging technology is used, and it can be started at low pressure in the breeze.
2Wear-ResistantAutomatic wind power charge regulator is durable and wear-resistant, can be used in harsh environments of -35 C – 65 C, thermally conductive silicone filling and sealing, IP67 waterproof and dustproof
3Multiple ProtectionsWind turbine charge controller has multiple protections such as perfect overcharge protection, reverse polarity protection, short circuit protection, high-temperature protection, etc., making it safer to use
4Technology UpgradeCompared with the traditional PWM charge controller, it greatly improves the charging capacity and the utilization efficiency of the power generation system, and the energy conversion rate
5Applicable to Most AreasAutomatic wind power charge regulator is widely used, can automatically identify 12v 24v voltage and adjust and switch, suitable for most parts of the world

Product Description:
1. The wind turbine can be controlled to automatically charge the battery

2. Modular design, so that the performance of the whole system is guaranteed to the greatest extent

3. The fully sealed and completely waterproof design is adopted, and the protection level has reached IP67 or above.

4. Using MPPT boost charging technology, it can be started when the breeze is low and the energy is sufficient, which can solve the problem that the fan speed is slow and cannot be charged.

Precautions:
1. Confirm that the output voltage of the wind turbine is consistent with the rate voltage of the battery.
2. Wire in the following order, first connect the positive and negative poles of the battery and then connect the three-phase voltage output of the fan.
3. Please connect the battery and wind turbine to the controller strictly according to the instructions. Reverse polarity or wrong connection will cause the system to work abnormally and even cause the controller to be completely damaged.

Parameters

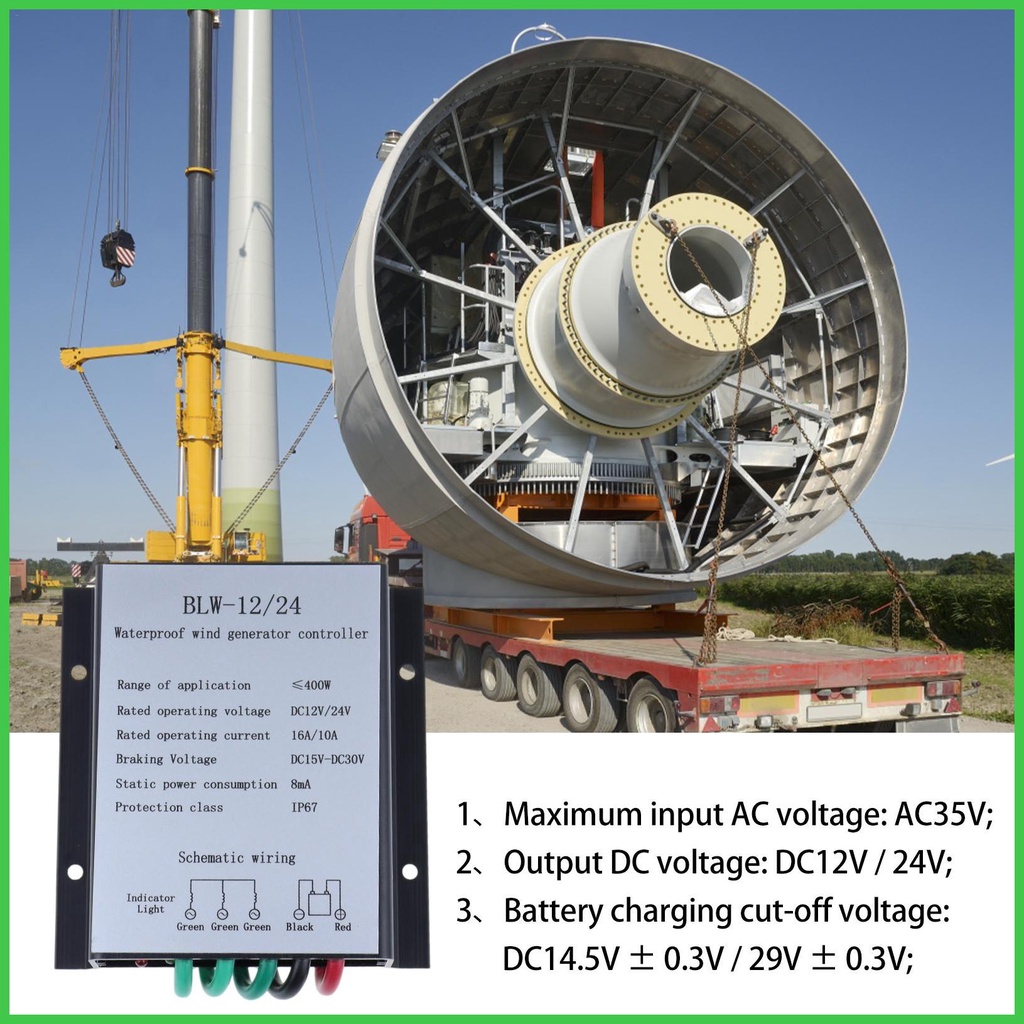

1Maximum input AC voltage: AC35V;
2Output DC voltage: DC12V / 24V;
3Battery charging cut-off voltage: DC14.5V ± 0.3V / 29V ± 0.3V;
4Maximum charging current: 15A (12V) maximum charging current: 10A (24V);

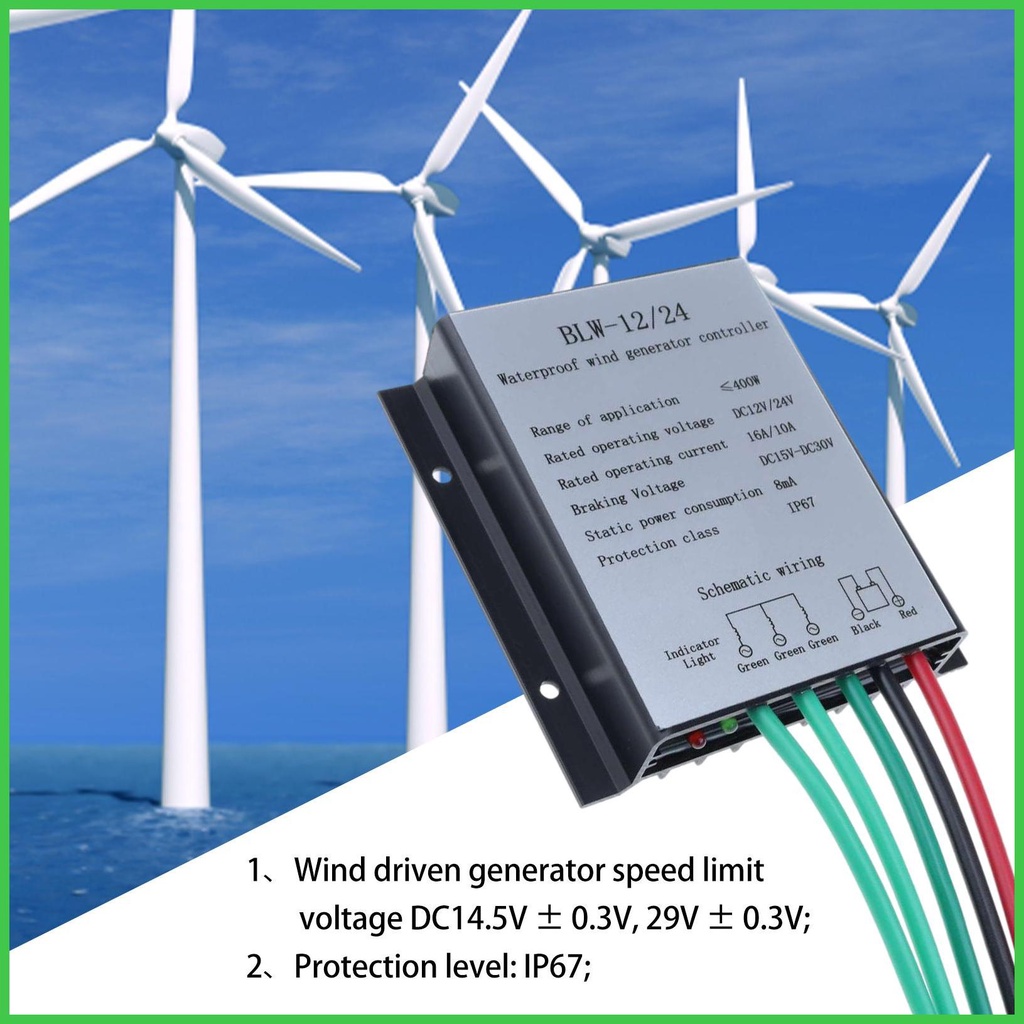

5Wind driven generator speed limit voltage DC14.5V ± 0.3V, 29V ± 0.3V;
6Protection level: IP67;
7Static power consumption: 0.008A;
8Bearing power: 400W;
9Maximum bearing wind speed: lvl.12;
10Working temperature: -35 ° C – 65 ° C

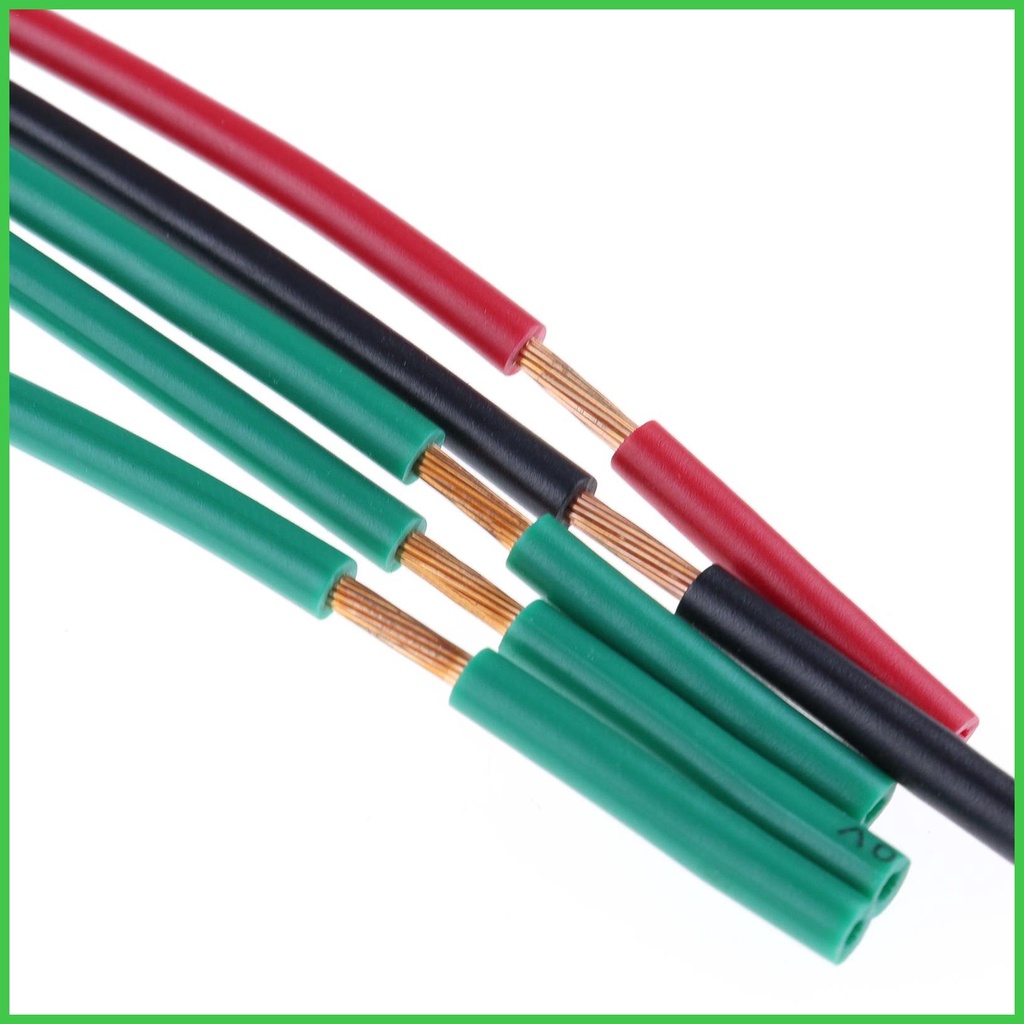

11Input wiring: three-wire system;
12Control mode: 12V/24V compatible;

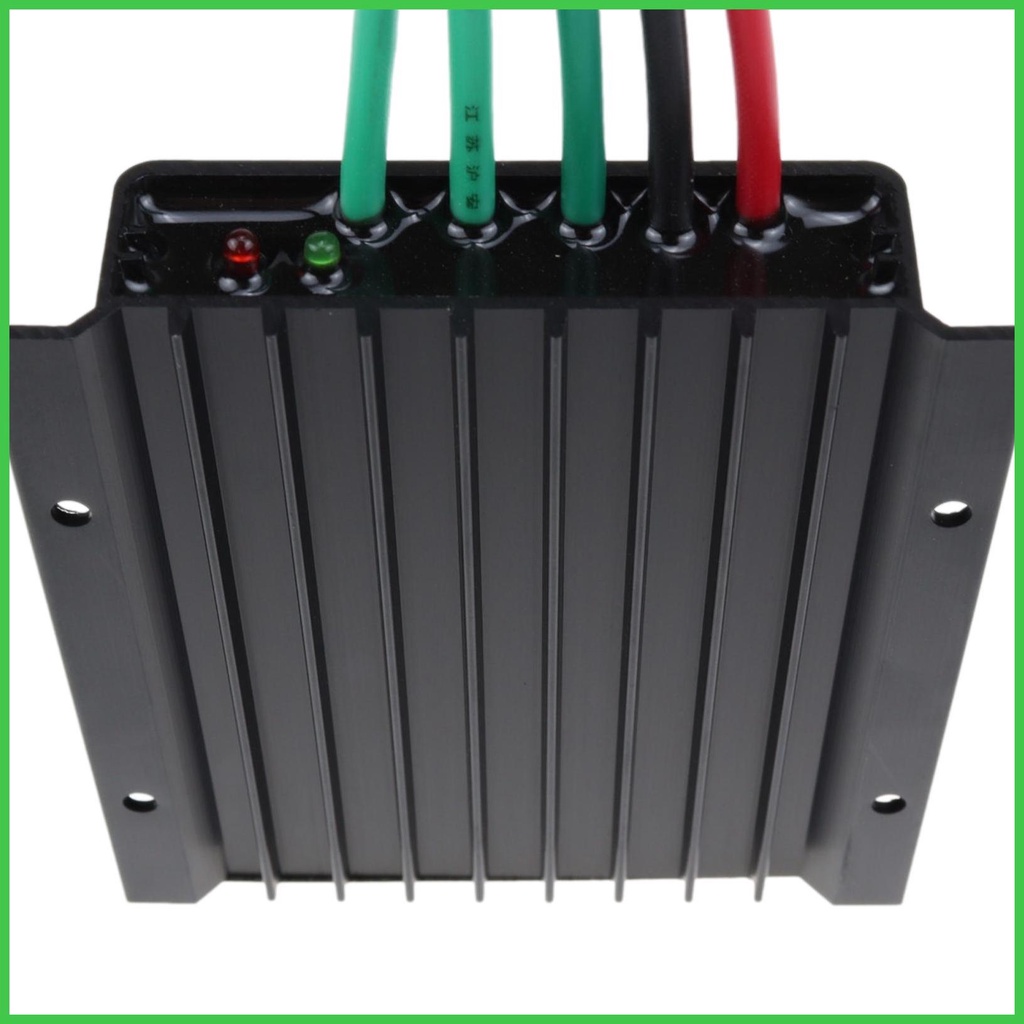

13Installation method: bolted;

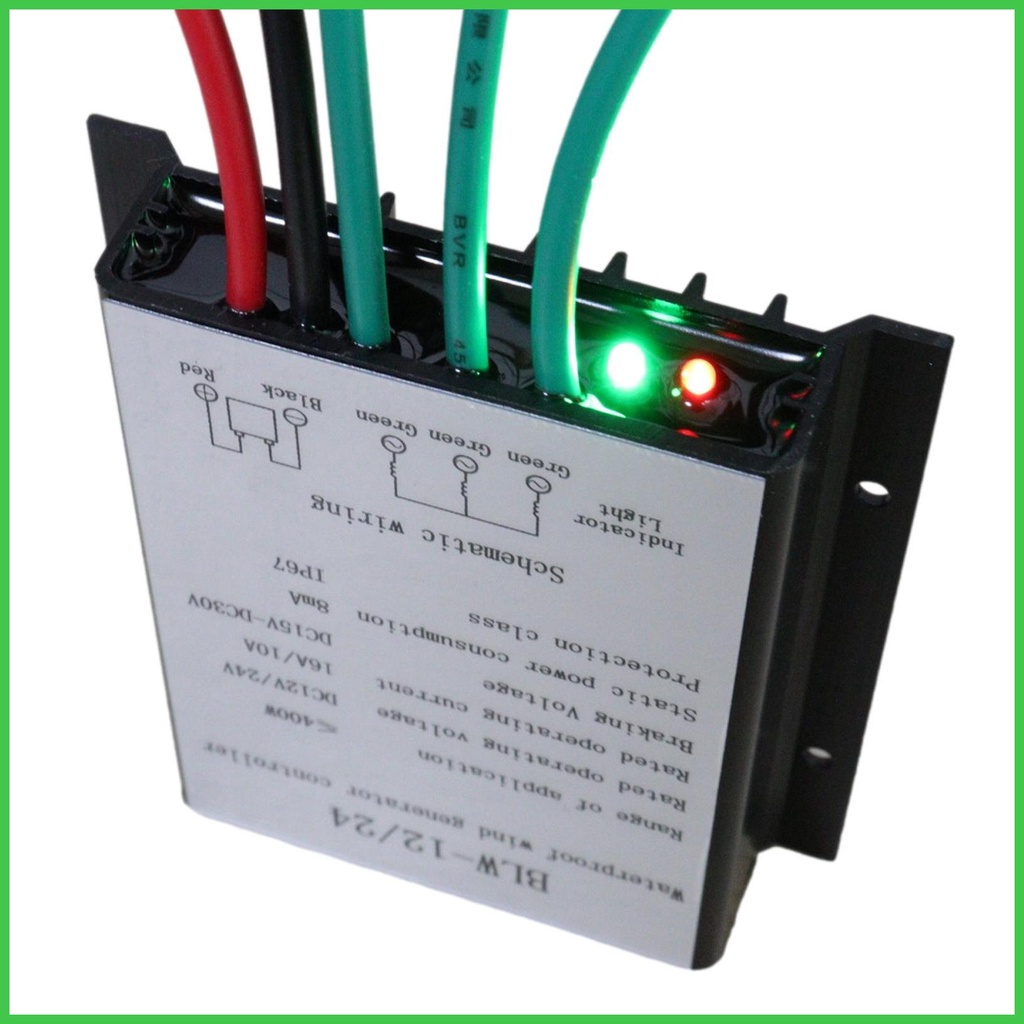

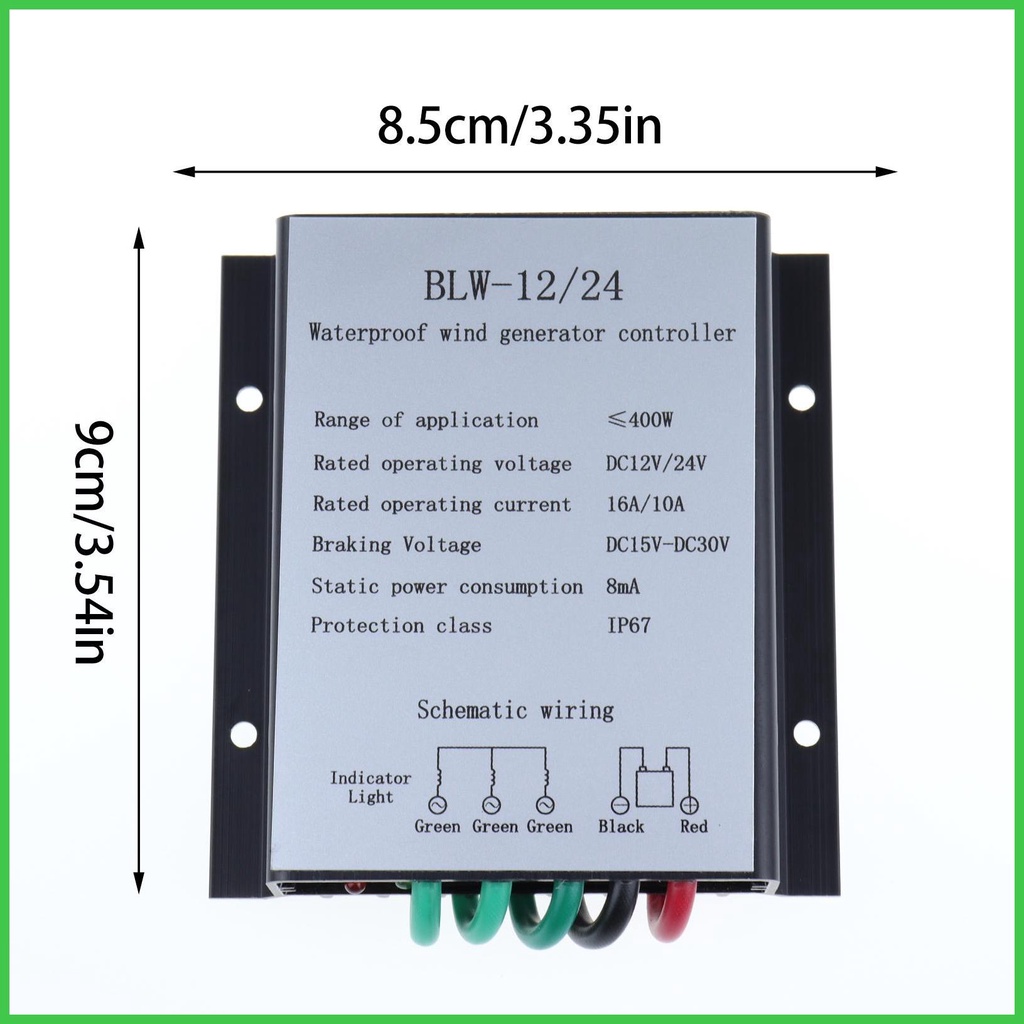

14Wiring is shown in the schematic figure; do not reverse the positive and negative poles to avoid burning the controller.

Product List:
Wind Turbine Controller*1
