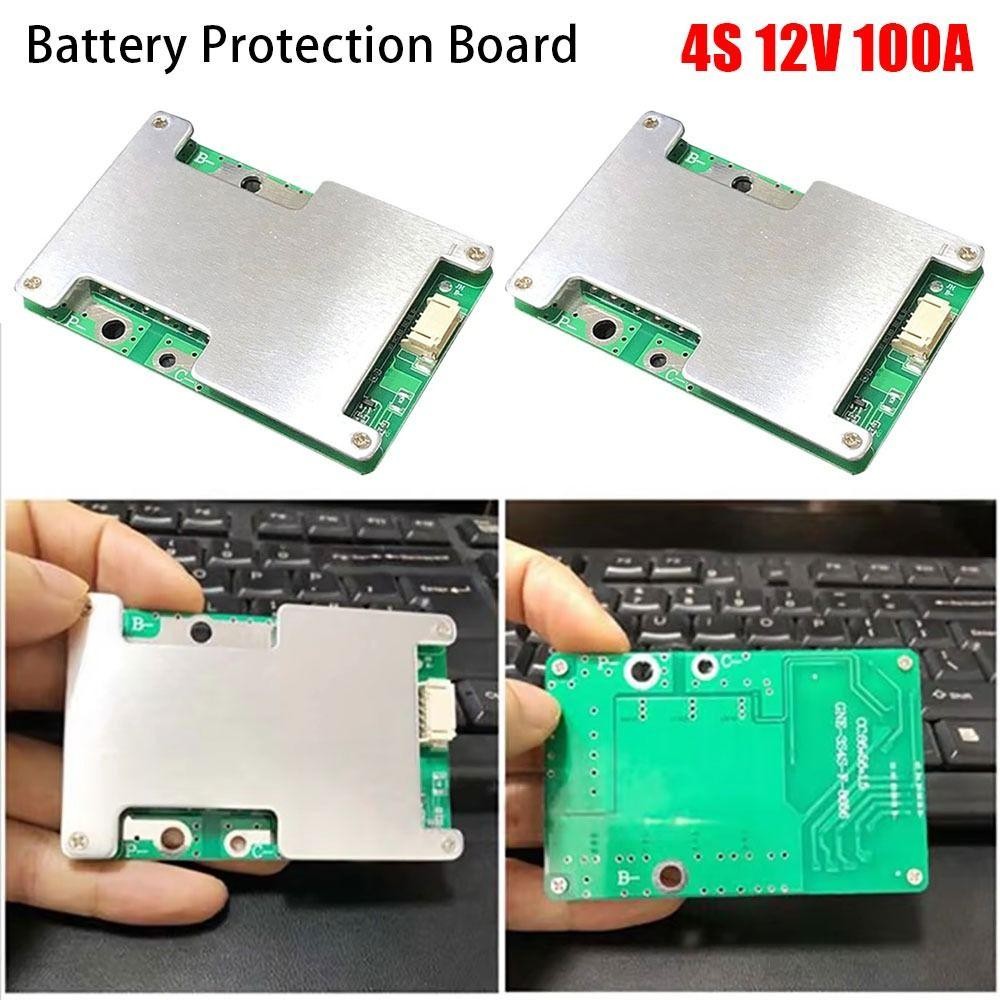

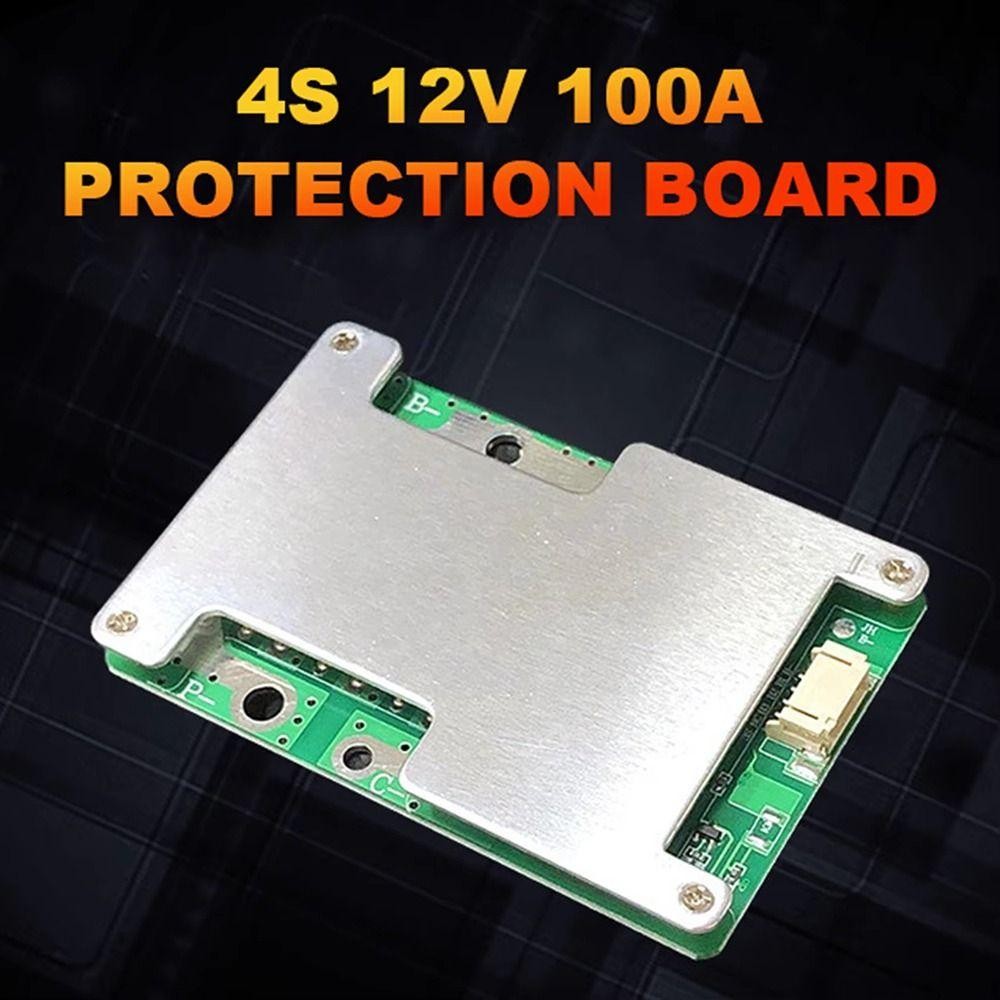

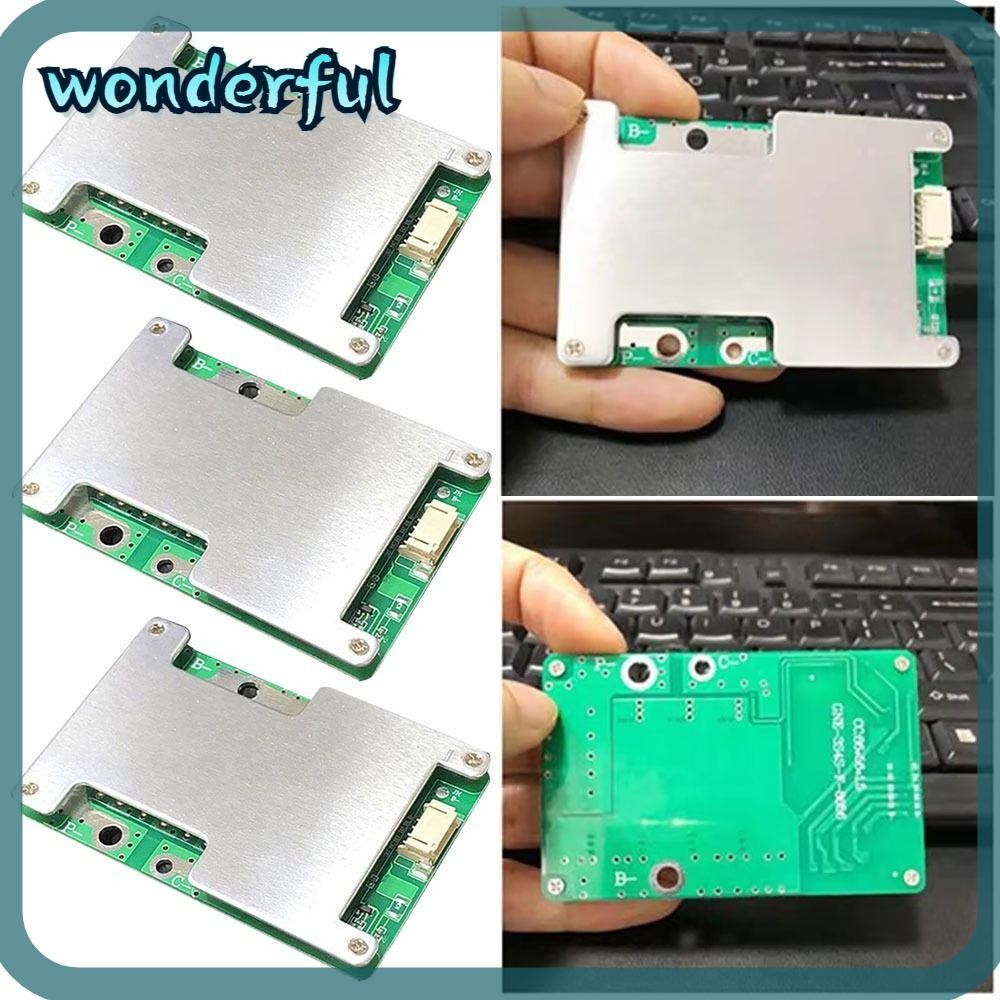

WONDER 1Pcs Lithium Battery Protection Board, with Balanced Charging LiFePO4 PCB Protection Board, BMS 4S 12V 100A Power Battery Balance/Enhance Circuit Board
Original price was: ₱627.00.₱233.00Current price is: ₱233.00.
Welcome toWONDERFUL shop, the products are ready to ship.Please read the description carefully before buying to avoid misunderstandings Brand and high quality
Color: As shown
Material: PCB+Metal

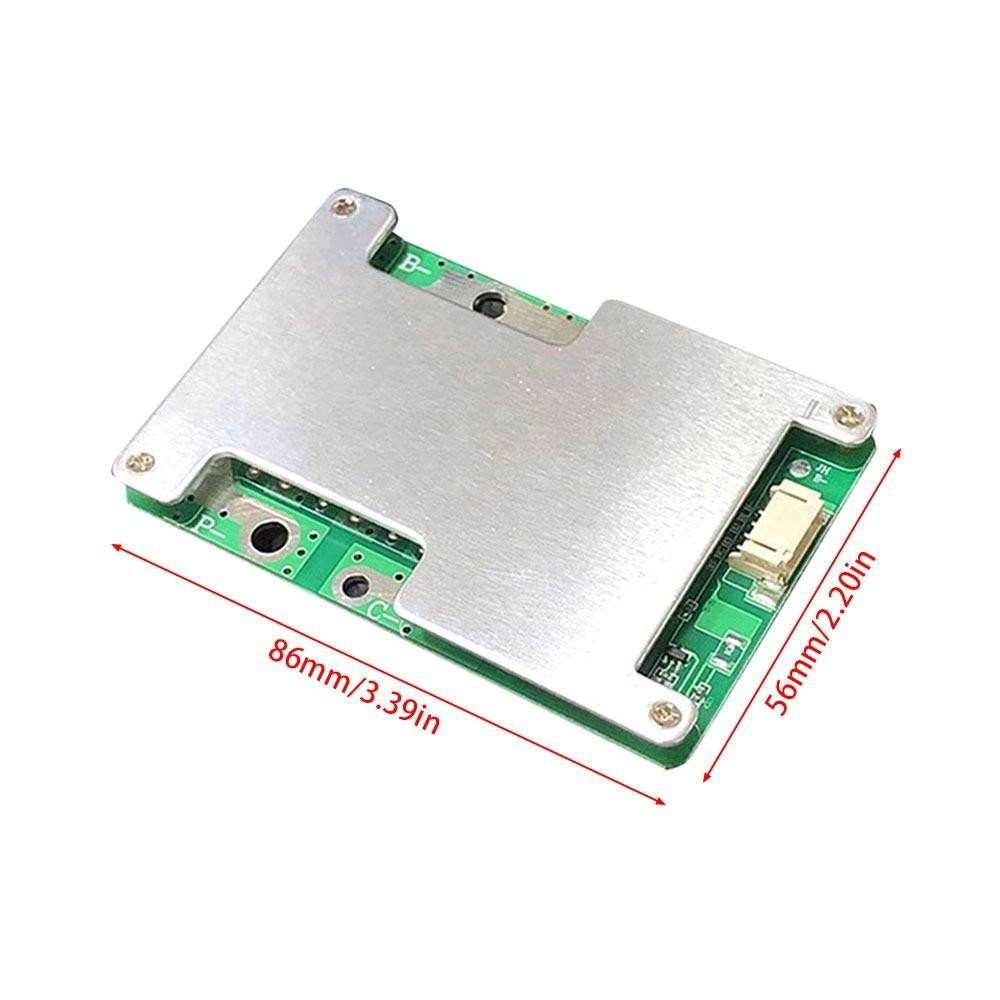

Size: 56 x 86 x 9mm(2.20 x 3.39 x 0.35in)
Quantity: 1Pcs
Discharge:
Continuous discharge current: 0.1~100A(max)
Instantaneous discharge current: 150A
Charging:
Charging Voltage(Standard): 15V
Charging current: 0.1~10A(max)
Overcharge Protection:
Overcharge detection voltage: 3.75±0.025V
Overcharge protection delay: 0.3S
Overcharge release voltage: 3.60±0.05V
Energy Balance:
Energy balance detection voltage: 3.60±0.025V
Energy balance release voltage: 3.60±0.025V
Energy balance current: 42±5mA
Over-discharge Protection:
Over-discharge detection voltage: 2.0±0.1V
Over-discharge detection delay: 0.1S
Over-discharge release voltage: 2.3±0.1V
Overcurrent Protection:
Overcurrent detection voltage: 150mV
Overcurrent detection delay: 9mS
Overcurrent Protection current: 200±10A
Overcurrent Protection release condition: Disconnect the load
Short circuit Protection:
Short circuit detection delay: 250uS
Short circuit Protection release condition: Disconnect the load
Main circuit conduction internal resistance:15m ohm
Self-consumption current:20uA
Operating temperature:-30~80

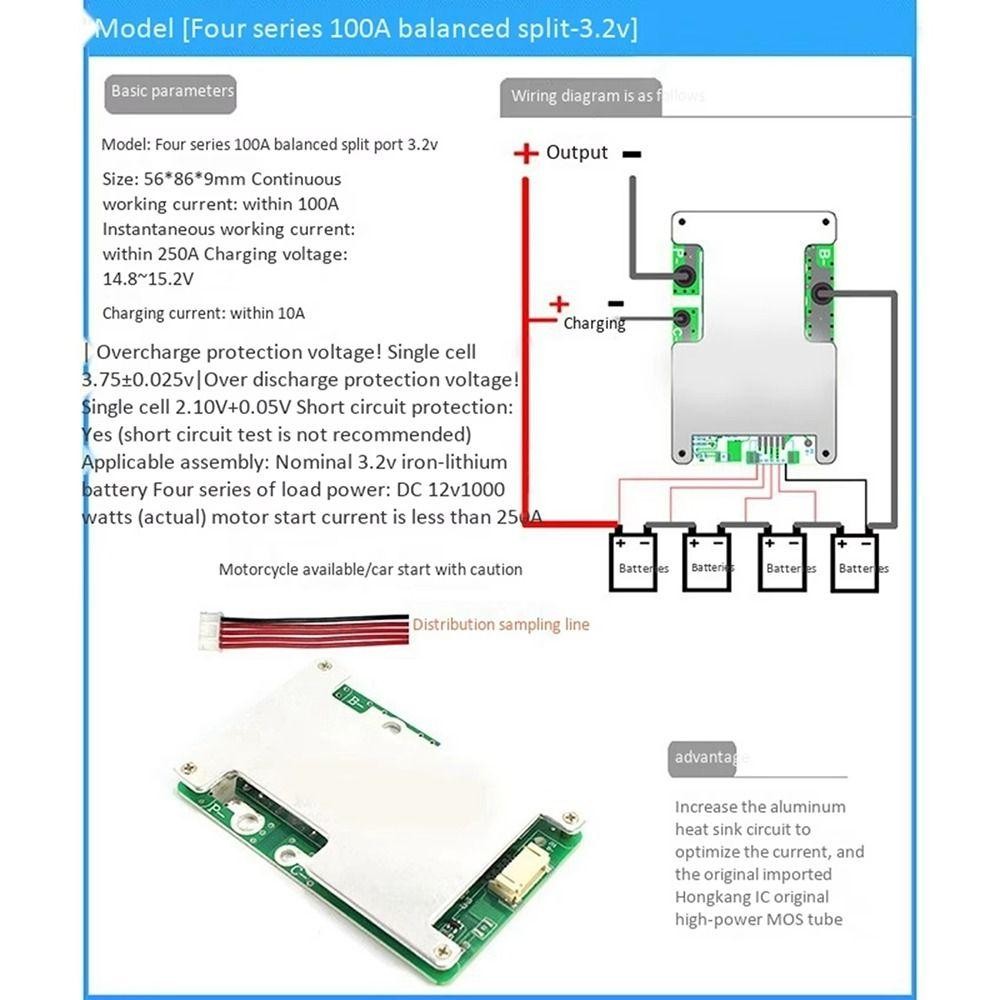

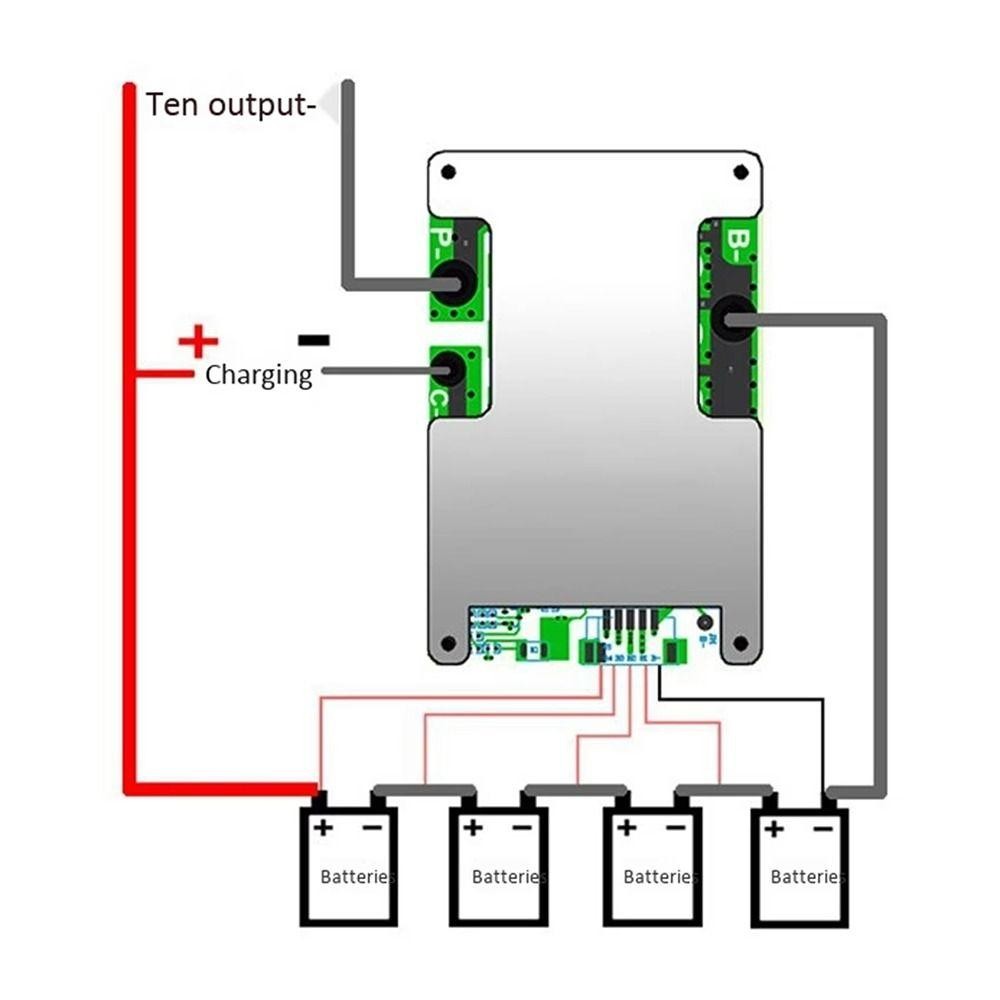

Wiring:
Please test three series of battery voltage balance then cascade
Don’t need connect B+
C-: Charging –
P-: Just can as discharge –
Notice:
1. The real color of the item may be slightly different from the pictures shown on the website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data. Thank for your understanding.
3. 1cm=0.39”.
Package Included:
1x Lithium Battery Charger Protection Board
Lithium Battery Protection Board PCB Protection Board Circuit Board Power Battery Balance/Enhance with Balanced Charging LiFePO4 4S 12V 100A BMS DurableInternational logistics is generally 7-15 days. If the product has any problems after receiving the package, please contact us in time!()
WISH YOU A WONDERFUL TIME!!
