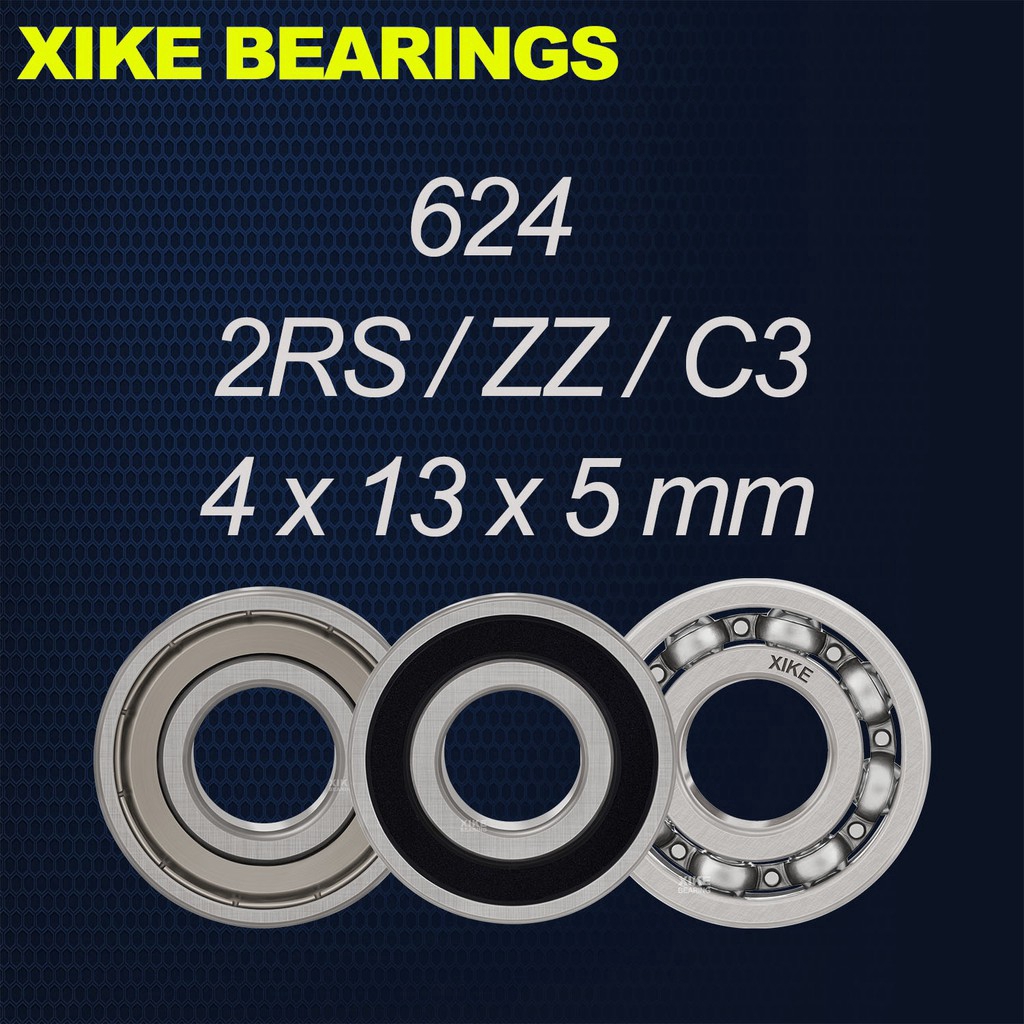

XIKE 624-2RS 624ZZ 624 624-2RSC3 624ZZC3 624C3 – Size 4x13x5mm High Quality Deep Groove Ball Bearing

XIKE BEARINGS / POWER UNLIMITED TRANSFER / BEGAN IN 1945.

Product value
Reduce purchase cost and increase service life.
Cost-effective and stable performance.

Other support
More product technical details.
More product packaging quantities.
Repair kit for multiple bearing types.
Total business or application solutions.

Product information

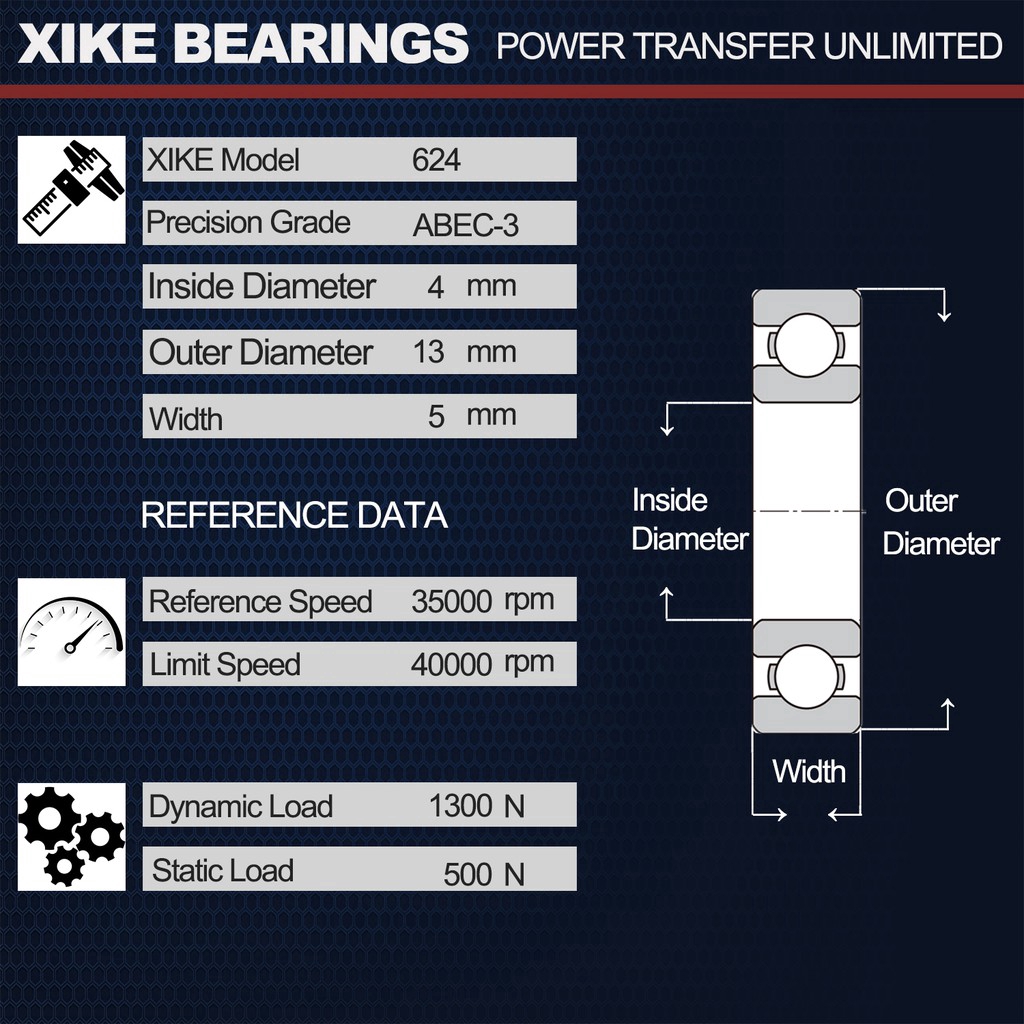

Main dimensions: ID 4 x OD 13 x Width 5 mm.
Precision rating: ABEC-3 or P6.

Deep groove ball bearings introduction and suffix letter meaning.

Cage Type
No suffix / Stamped steel cage.
M / Machined brass cage.
FB / No cage full of balls.

External Design

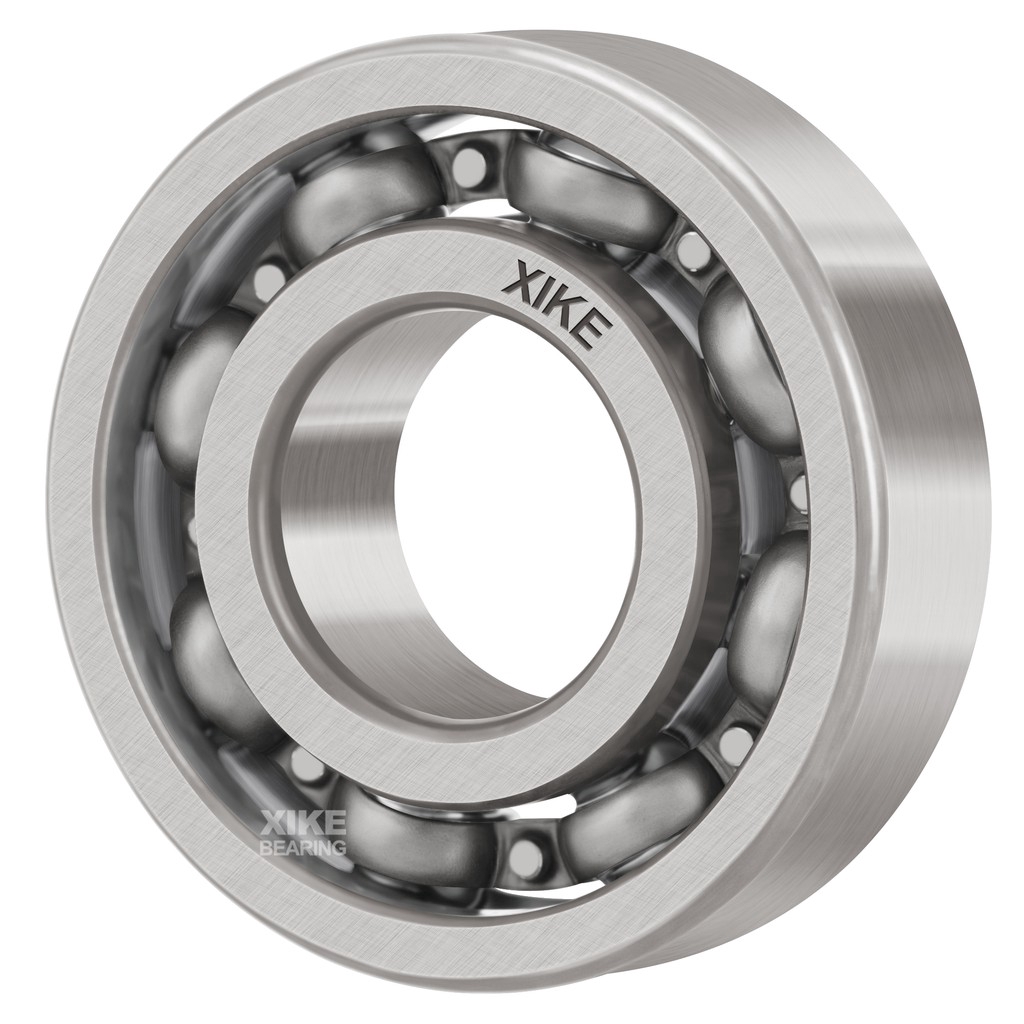

Open / No suffix.

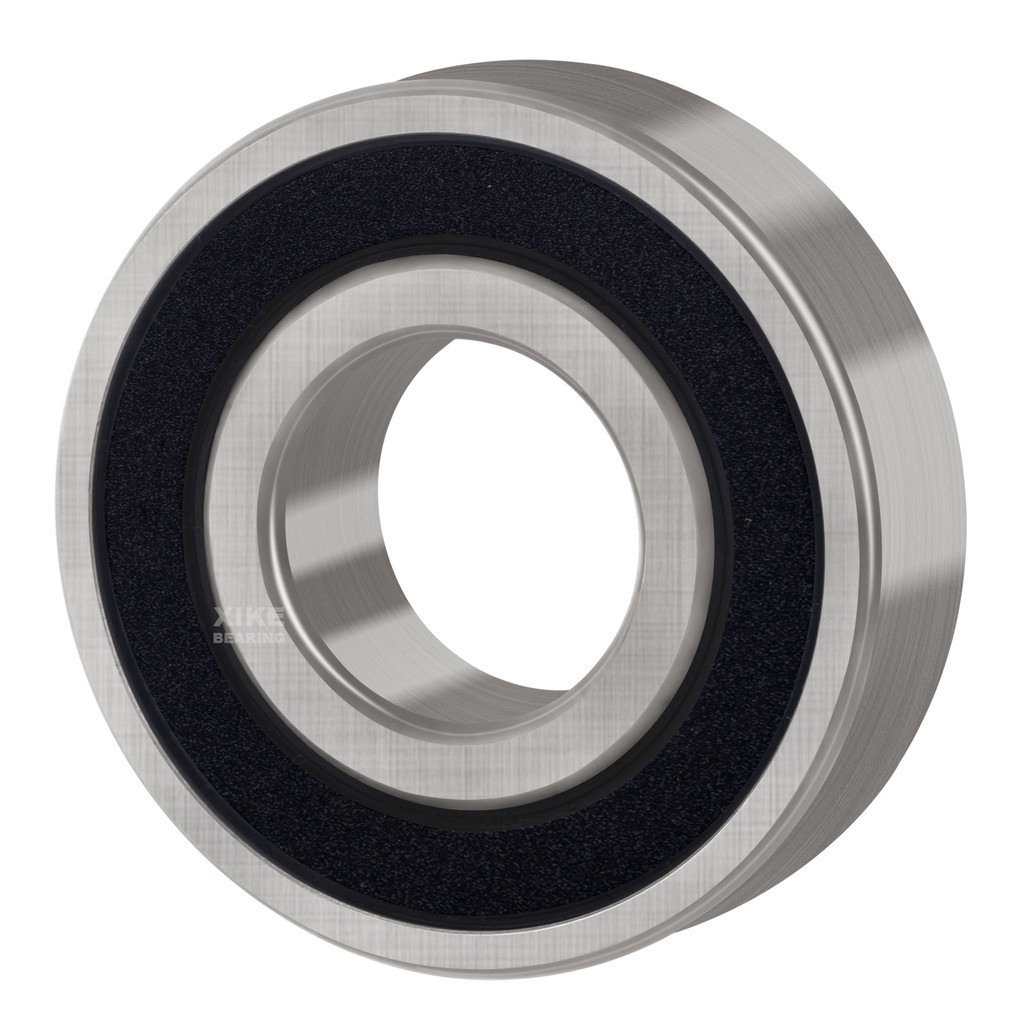

2RS, LLU, DDU / Double rubber seal.

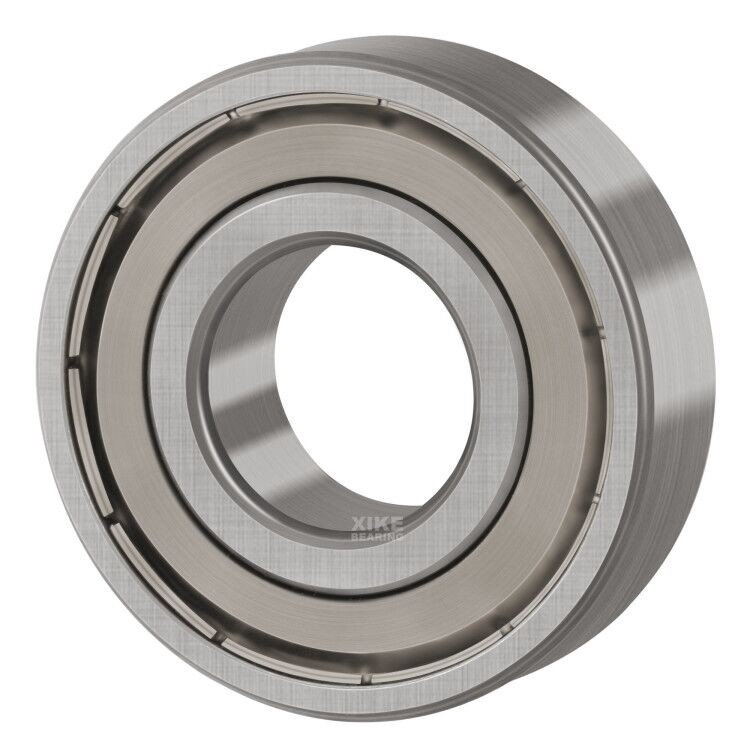

ZZ / Double metal seal.
N / Snap ring groove in the outer ring.
NR / Snap ring groove in the outer ring, with snap ring.
R / Flanged outer ring.

Interior Design
C3 / Radial internal clearance greater than normal – High temperature conditions prevent failure due to thermal expansion.

Deep groove ball bearings are particularly versatile. They are suitable for high and very high speeds, accommodate radial and axial loads in both directions and require little maintenance. Because deep groove ball bearings are the most widely used bearing type, they are available from XIKE in many designs, variants and sizes.
